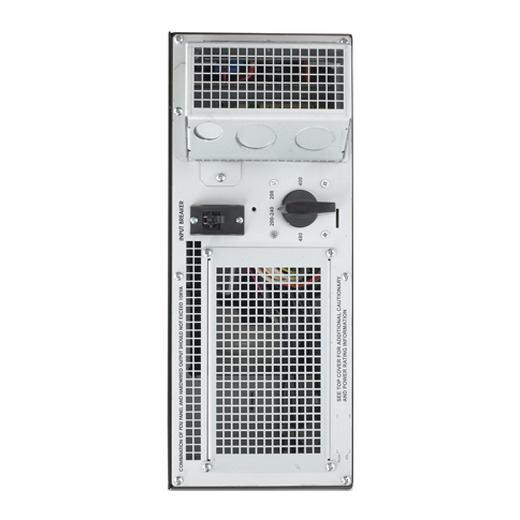

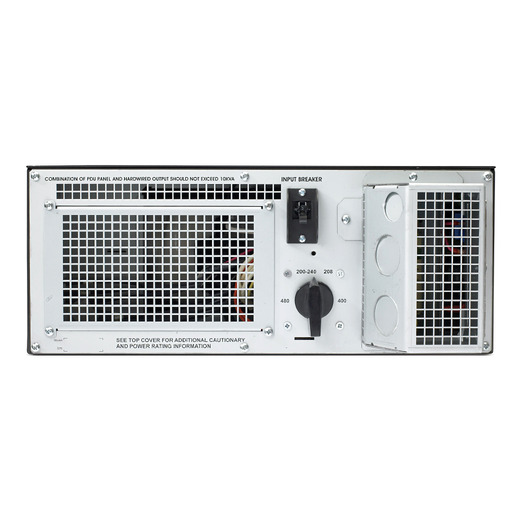

APC WW 10KVA Isolation Transformer

APC WW 10KVA Isolation Transformer

APTF10KW01

APC WW 10KVA Isolation Transformer

The Step-Down Transformer converts high voltage (208 or 200 VAC) output into low voltage (120 or 100 VAC) output for powering low voltage AC equipment.

Call for More Information
800-800-4272
Includes: Documentation CD,Hardwire panel,Installation guide,Mounting hardware,Rack mounting brackets,User manual

APTF10KW01

APC WW 10KVA Isolation Transformer

  • Rack-Mountable
    Occupys only 1U of valuable rack space. Puts the power where it is needed most - in the rack near the equipment.
  • Transformer for Step-down or Step-up or Isolation
    Step down transformer placed upstream of the UPS to avoid inrush current and saturation eliminating need to oversize transformer

Step-Down Transformer Features & Benefits

Product Distribution
Product Distribution

United Arab Emirates , Afghanistan , Antigua & Barbuda , Anguilla , Albania , Armenia , Netherlands Antilles , Angola , Argentina , Austria , Australia , Azerbaijan , Bosnia & Herzegovina , Barbados , Belgium , Burkina Faso , Bulgaria , Bahrain , Burundi , Benin , Bermuda , Bolivia , Brazil , Bahamas , Botswana , Belarus , Belize , Canada , Congo - Kinshasa , Switzerland , Côte d’Ivoire , Chile , Cameroon , China , Colombia , Costa Rica , Cyprus , Czechia , Germany , Djibouti , Denmark , Dominica , Dominican Republic , Algeria , Ecuador , Estonia , Egypt , Eritrea , Spain , Ethiopia , Finland , Fiji , Gabon , Grenada , Georgia , French Guiana , Ghana , Gambia , Guadeloupe , Greece , Guatemala , Guyana , Hong Kong SAR China , Honduras , Croatia , Haiti , Hungary , Indonesia , Ireland , Israel , India , Iraq , Iceland , Italy , Jamaica , Jordan , Japan , Kenya , Cambodia , St. Kitts & Nevis , South Korea , Kuwait , Cayman Islands , Kazakhstan , Lebanon , St. Lucia , Liberia , Lithuania , Luxembourg , Latvia , Morocco , Madagascar , North Macedonia , Mali , Myanmar (Burma) , Mongolia , Martinique , Mauritania , Malta , Mauritius , Malawi , Mexico , Malaysia , Mozambique , Namibia , Nigeria , Nicaragua , Netherlands , Norway , Oman , Panama , Peru , Philippines , Pakistan , Poland , Puerto Rico , Portugal , Paraguay , Réunion , Romania , Rwanda , Saudi Arabia , Sweden , Singapore , Slovenia , Slovakia , Sierra Leone , Senegal , Somalia , Suriname , El Salvador , Turks & Caicos Islands , Togo , Thailand , Tajikistan , Turkmenistan , Tunisia , Turkey , Trinidad & Tobago , Taiwan , Tanzania , Ukraine , Uganda , United States , Uruguay , Uzbekistan , St. Vincent & Grenadines , Venezuela , U.S. Virgin Islands , Vietnam , Yemen , Mayotte , South Africa , Zambia , Zimbabwe

Print Technical Specification

Output

  • Nominal Output Voltage
    120V , 208V , 230V , 240V
  • Efficiency at Full Load
    95 % %
  • Maximum Total Current Draw
    60
  • Output Connections
    (1) Hard wire 3-wire (H N + E) (Battery Backup)

Input

  • Nominal Input Voltage
    208V , 230V , 240V
  • Input frequency
    45 - 65 Hz
  • Input Connections
    Hard wire 3-wire (1P + N + E), Hard wire 3-wire (2P + E)
  • Efficiency at Full Load
    95 % %
  • Load Capacity
    10000VA
  • Maximum Input Current
    60A
  • Maximum Line Current
    60A

Physical

  • Maximum Height
    6.89inches ( 175MM , 17.5CM )
  • Maximum Width
    17.01inches ( 432MM , 43.2CM )
  • Maximum Depth
    29.49inches ( 749MM , 74.9CM )
  • Rack Height
    4U
  • Net Weight
    220.46lbs. ( 100.0KG )
  • Shipping weight
    275.0lbs. ( 124.74KG )
  • Shipping Height
    15.98inches ( 406MM , 40.6CM )
  • Shipping Width
    23.62inches ( 600MM , 60.0CM )
  • Shipping Depth
    39.37inches ( 1000MM , 100.0CM )
  • Color
    Black

Environmental

  • Operating Temperature
    32 - 104 °F ( 0 - 40 °C )
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0 - 10000ft ( 0 - 3048meters )
  • Storage Temperature
    -25 - 65 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0 - 50000ft ( 0 - 15240meters )

Conformance

  • Approvals
    CSA, EN 55022 class A, EN 55024, EN 61000-3-2, EN 61000-3-3, UL listed
  • Standard warranty
    2 years repair or replace
