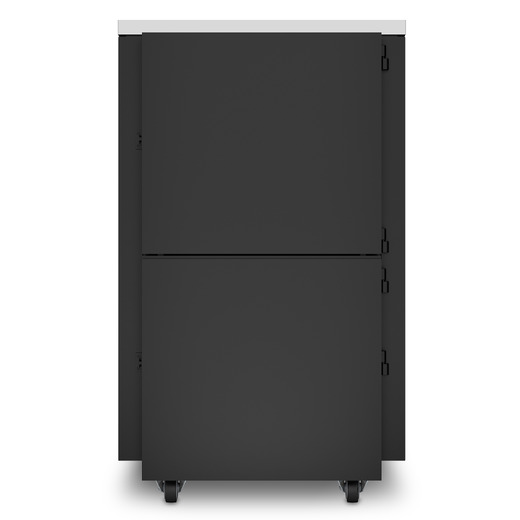

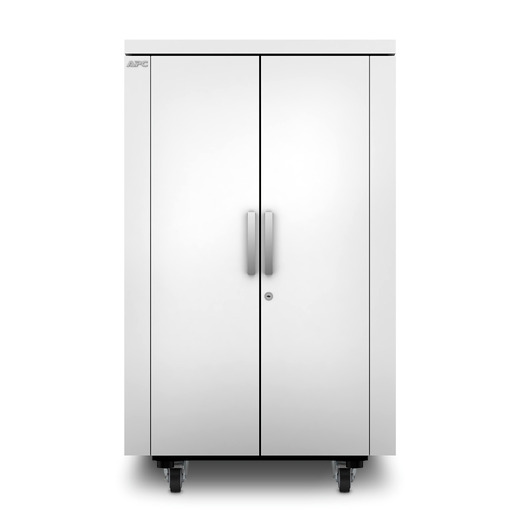

APC NetShelter CX, 24U, Soundproof Server Rack Enclosure, 100V to 120V, White, 1275H x 750W x 1130D mm

AR4024X432

APC NetShelter CX, 24U, Soundproof Server Rack Enclosure, 100V to 120V, White, 1275H x 750W x 1130D mm

Specialized enclosures with integrated cooling, noise dampening, and power distribution for server and network applications in office environments.

Call for Availability
800-800-4272

Includes: Casters,Installation guide,Key(s),Leveling feet,Rack power distribution unit (PDU),Side panels

AR4024X432

APC NetShelter CX, 24U, Soundproof Server Rack Enclosure, 100V to 120V, White, 1275H x 750W x 1130D mm

Acoustic foam lining for noise dampening

Superior noise reduction of installed IT equipment allowing the enclosure to be placed in a quiet environment.
Adjustable Front Vertical Mounting Rail

The front mounting rails can be adjusted to allow for various mounting depths and to allow for additional clearance from the front door.
Adjustable leveling feet

Leveling feet can be quickly adjusted through the use of a screwdriver or drill, eliminating the need to reach underneath with a wrench.
Dedicated rear cable access point

The cable port has a capacity of up to 400 cables and is situated perfectly for ground or under-floor cabling.
Four vertical 0U accessory channels and cable containment brackets

Provides multiple mounting locations for cable management accessories and rack PDUs without using critical equipment space.
Integrated heat removal

High efficiency fan modules remove heat and eliminate the need to purchase a costly cooling unit for your IT equipment.
Integrated power distribution

Provided with a rack power distribution unit servers and other equipment are ready for deployment.
Lockable front doors

Protect IT equipment from unwanted access
Removable side panels

Provides customers with easy accessibility to equipment.

NetShelter CX Enclosures Features & Benefits

Agility

Acoustic foam lining for noise dampening

Superior noise reduction of installed IT equipment allowing the enclosure to be placed in a quiet environment.
Light oak veneer finish

The enclosure blends discretely into almost any office environment.
Lockable front doors

Protect IT equipment from unwanted access
Plug and Play setup

Fast and Easy set up
Special packaging options for shipping rack with equipment pre-racked

Enclosures with shock packaging are standard enclosures with provisions in the packaging design and enclosure assembly for shipping the enclosures with equipment mounted inside. Extensive industry experience with the leading IT manufacturers and most recently certified with Cisco® for pre-racking and shipping Cisco Unified Computing Systems (UCS). Check apc.com for enclosure size options and availability.
Toolless Rack Mounting Capabilities

Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.

Product Distribution

Antigua and Barbuda , Anguilla , Netherlands Antilles , Aruba , Barbados , Bermuda , Bolivia , Bahamas , Belize , Canada , Chile , Dominica , Dominican Republic , Ecuador , Grenada , Guatemala , Guyana , Honduras , Haiti , Jamaica , Saint Kitts And Nevis , Cayman Islands , Saint Lucia , Nicaragua , Panama , Puerto Rico , Paraguay , El Salvador , Trinidad and Tobago , United States , Uruguay , Saint Vincent And The Grenadines , Venezuela , U.S. Virgin Islands

Print Technical Specification

Output

Nominal Output Voltage
100V , 120V
Maximum Total Current Draw
15
Output Connections

(12) NEMA 5-15R (Battery Backup)

Input

Nominal Input Voltage
115V , 120V
Input frequency
50/60 Hz
Input Connections
NEMA 5-15P
Input Power
68 Watts

Physical

Maximum Height
50.2inches ( 1275MM , 127.5CM )
Maximum Width
29.53inches ( 750MM , 75.0CM )
Maximum Depth
44.49inches ( 1130MM , 113.0CM )
Rack Height
24U
Net Weight
340.61lbs. ( 154.5KG )
Shipping weight
400.58lbs. ( 181.7KG )
Shipping Height
58.66inches ( 1490MM , 149.0CM )
Shipping Width
47.24inches ( 1200MM , 120.0CM )
Shipping Depth
31.5inches ( 800MM , 80.0CM )
Color
White
Maximum Mounting Depth
34.65inches ( 880.0MM , 88.01CM )
Minimum Mounting Depth
28.35inches ( 720.0MM , 72.01CM )
Rack Width
19"
Weight Capacity (static load)
1770.99lbs. ( 803.31KG )

Conformance

Approvals
EIA-310D, TAA compliance
Standard warranty
2 year (manufacturer's defect)

Sustainable Offer Status

RoHS
Compliant
