Rack Mount, Security and Environmental Appliance, NetBotz, 750

Rack Mount, Security and Environmental Appliance, NetBotz, 750

NBRK0750

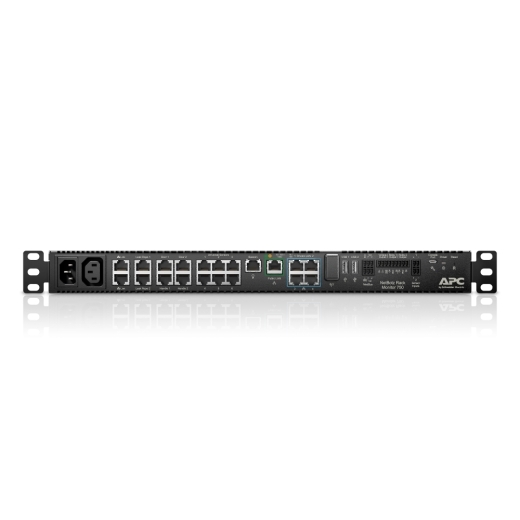

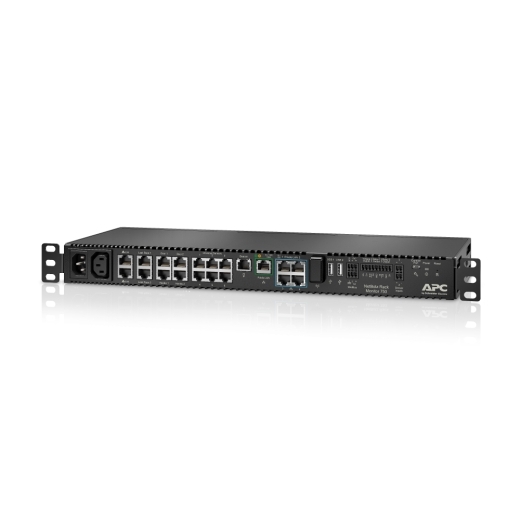

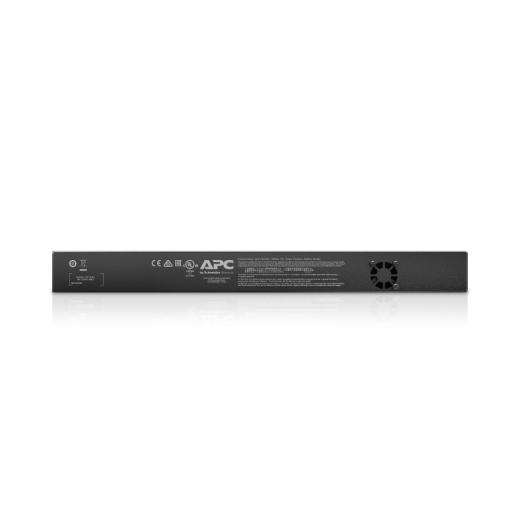

Rack Mount, Security and Environmental Appliance, NetBotz, 750

The NetBotz Rack Monitor 750 provides integrated surveillance,sensing, access control, and advanced alerting for IT environmentsof all sizes, from single-rack edge networks to large data centers.

Call for More Information
800-800-4272
Includes: Rack mounting brackets,Temperature/humidity sensor,USB cable

NBRK0750

Rack Mount, Security and Environmental Appliance, NetBotz, 750

  • 4-Port POE Switch
    Built-in true private network switch for use with NetBotz Camera Pod 165 (NBPD0165) or other downstream IP devices
  • Built-in Access Control Ports
    Appliance includes integrated access control and door contact sensor ports for use with the stand-alone 125 kHz handle kit (NBHN125) and contact kit (NBES0303)
  • Dual Rope Leak Inputs
    Dual rope leak sensor ports allow additional leak detection in two different directions
  • Expansive Security and Monitoring
    Supports up to 78 wired sensors, 47 wireless sensors, access control for 26 rack doors, and 4 camera streams downstream of a single IP address
  • HD Camera Support
    Supports the new HD, Low Light Camera Pod 165 (NBPD0165)
  • Rack Access Pod Support
    Supports up to 12 Rack Access Pod 170's (NBPD0171) connected via daisy-chain
  • Sensor Pod Support
    Supports up to 12 Sensor Pod 150's (NBPD0150) connected via daisy-chain

NetBotz 750 Features & Benefits

  • Surveillance
    Detect and record motion, allowing a visual record to be paired with an access or environmental alert, which speeds root cause analysis.
  • Compliance ready
    The rack access handle kits, provide an audit trail on who is accessing the enclosures so the organization can easily comply with data security regulations.
  • Physical access control
    Grant authorized people access to equipment through proximity card authentication.
  • Native wireless sensor support
    Manage up to 47 NetBotz wireless temperature and temp/humidity sensors from a single NetBotz
Product Distribution
Product Distribution

United Arab Emirates , Afghanistan , Antigua & Barbuda , Anguilla , Albania , Armenia , Netherlands Antilles , Angola , Argentina , Austria , Australia , Azerbaijan , Bosnia & Herzegovina , Barbados , Belgium , Burkina Faso , Bulgaria , Bahrain , Burundi , Benin , Bermuda , Bolivia , Brazil , Bahamas , Botswana , Belarus , Belize , Canada , Congo - Kinshasa , Switzerland , Côte d’Ivoire , Chile , Cameroon , China , Colombia , Costa Rica , Serbia and Montenegro , Cyprus , Czechia , Germany , Djibouti , Denmark , Dominica , Dominican Republic , Algeria , Ecuador , Estonia , Egypt , Eritrea , Spain , Ethiopia , Finland , Fiji , France , Gabon , United Kingdom , Grenada , Georgia , French Guiana , Ghana , Gambia , Guadeloupe , Greece , Guatemala , Guyana , Hong Kong SAR China , Honduras , Croatia , Haiti , Hungary , Indonesia , Ireland , Israel , India , Iraq , Iceland , Italy , Jamaica , Jordan , Japan , Kenya , Cambodia , St. Kitts & Nevis , South Korea , Kuwait , Cayman Islands , Kazakhstan , Lebanon , St. Lucia , Liberia , Lithuania , Luxembourg , Latvia , Morocco , Madagascar , North Macedonia , Mali , Myanmar (Burma) , Mongolia , Martinique , Mauritania , Malta , Mauritius , Malawi , Mexico , Malaysia , Mozambique , Namibia , Nigeria , Nicaragua , Netherlands , Norway , New Zealand , Oman , Panama , Peru , Philippines , Pakistan , Poland , Puerto Rico , Portugal , Paraguay , Qatar , Réunion , Romania , Rwanda , Saudi Arabia , Sweden , Singapore , Slovenia , Sierra Leone , Senegal , Somalia , Suriname , El Salvador , Turks & Caicos Islands , Togo , Thailand , Tajikistan , Turkmenistan , Tunisia , Turkey , Trinidad & Tobago , Taiwan , Tanzania , Ukraine , Uganda , United States , Uruguay , Uzbekistan , St. Vincent & Grenadines , Venezuela , U.S. Virgin Islands , Vietnam , Yemen , Mayotte , South Africa , Zambia , Zimbabwe

Print Technical Specification

Physical

  • Maximum Height
    1.69inches ( 43MM , 4.3CM )
  • Maximum Width
    17.01inches ( 432MM , 43.2CM )
  • Maximum Depth
    7.01inches ( 178MM , 17.8CM )
  • Rack Height
    1U
  • Net Weight
    5.4lbs. ( 2.45KG )
  • Shipping weight
    9.19lbs. ( 4.17KG )
  • Shipping Height
    4.76inches ( 121MM , 12.1CM )
  • Shipping Width
    12.52inches ( 318MM , 31.8CM )
  • Shipping Depth
    20.98inches ( 533MM , 53.3CM )
  • Color
    Black

Environmental

  • Operating Temperature
    32 - 104 °F ( 0 - 40 °C )
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0 - 10000ft ( 0 - 3048meters )
  • Storage Temperature
    -15 - 65 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0 - 50000ft ( 0 - 15240meters )

Conformance

  • Approvals
    2014/30/EU, AS/NZS 3548 (C-Tick) class A, CE, CSA C22.2 No. 60950-1-03, EMC directive 2004/108/EC, FCC part 15 class A, ICES-003, UL 60950-1, VCCI class A
  • Standard warranty
    2 years

Sustainable Offer Status

  • Other Environmental Compliance
    China RoHS

General

  • Camera Frame Rate
    Up to 30 fps
  • Type of Camera Pods Supported
    Rack sensor pod 150,Room sensor pod 155
  • Camera Resolution
    Up to 1280x1024
  • Type of External Sensors Supported
    0-5V, Door contact, Dry contact, Fluid spot leak, Humidity, Smoke, Temperature, Vibration
  • Number of Universal Sensor Ports
    6
  • Number of Sensor Pods Supported
    12
  • Number of Universal Sensors Supported
    78
  • Number of Cameras Supported
    4
