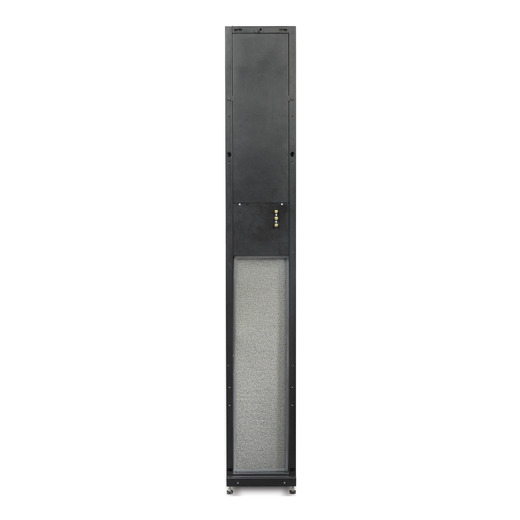

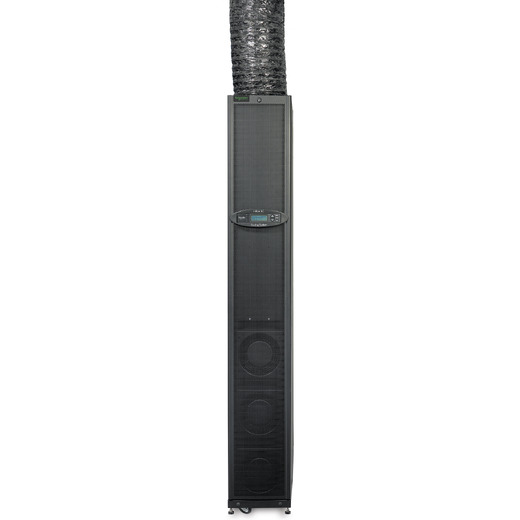

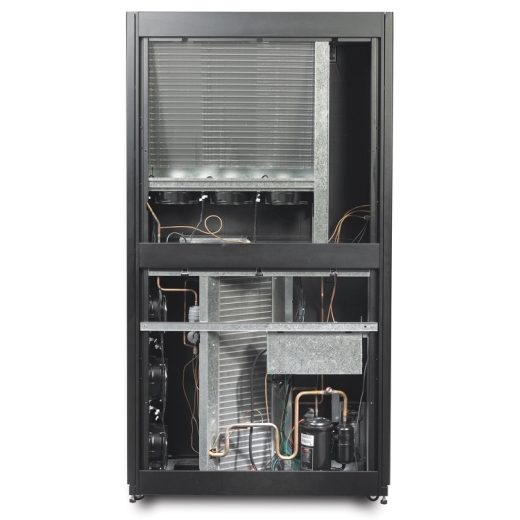

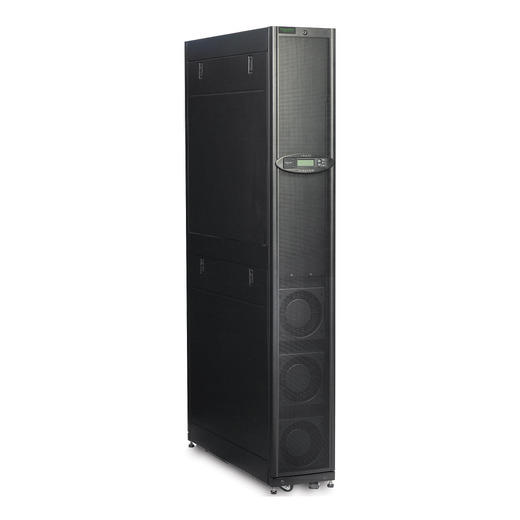

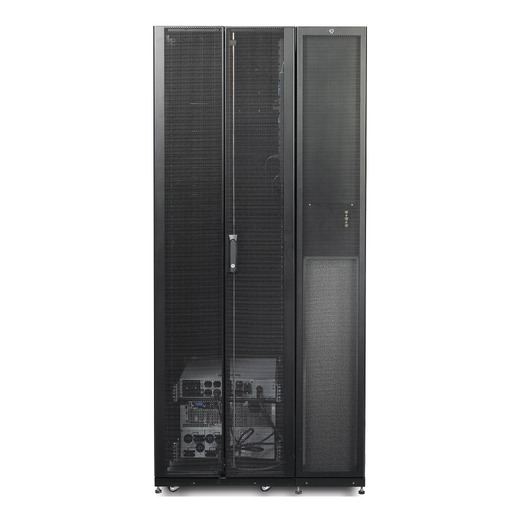

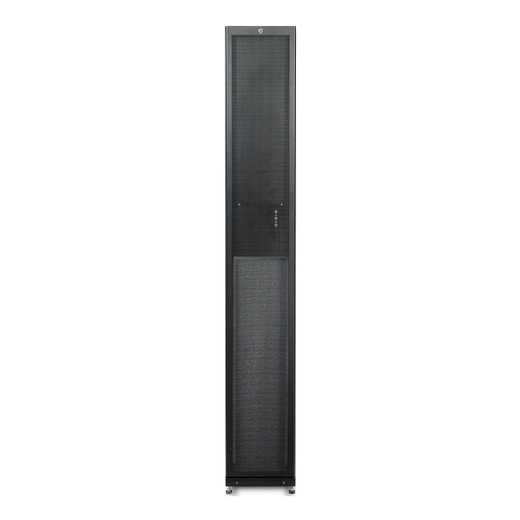

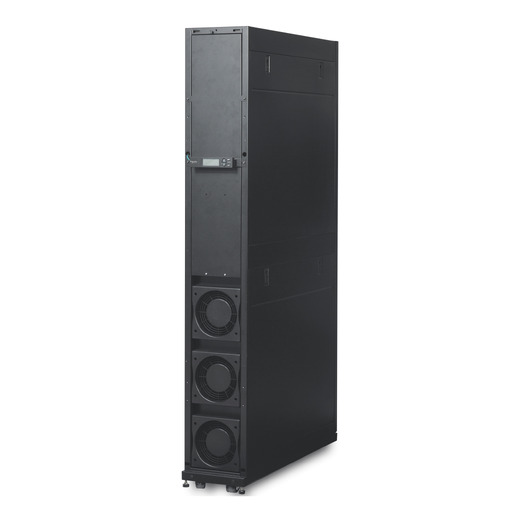

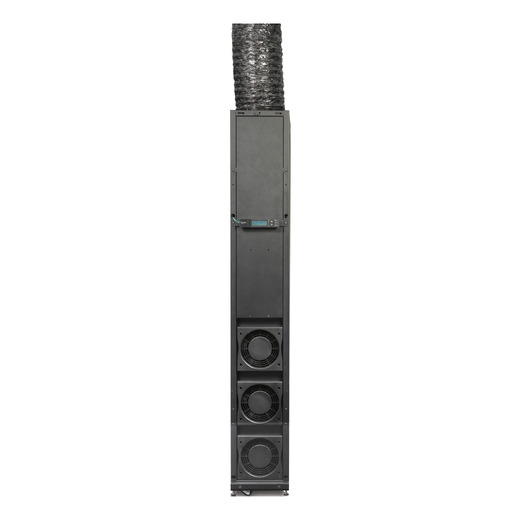

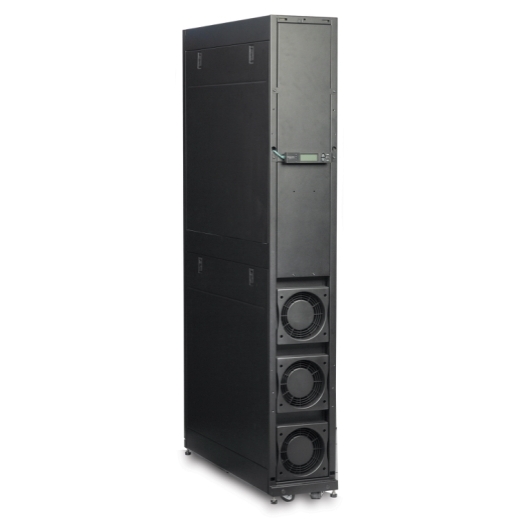

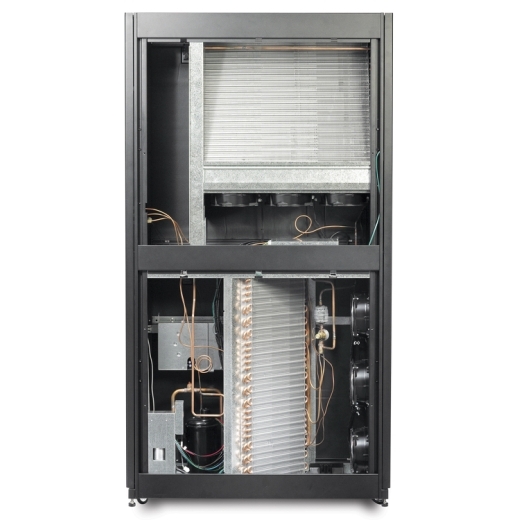

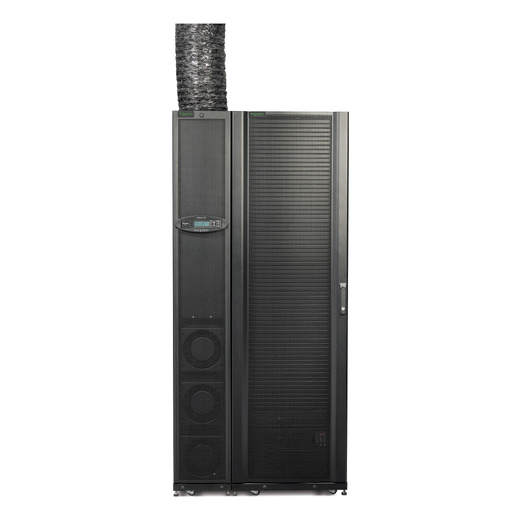

Uniflair InRow SC, 300mm, Air Cooled, Self-contained 200-240V 60Hz

Share:
Uniflair InRow SC, 300mm, Air Cooled, Self-contained 200-240V 60Hz

Uniflair InRow SC, 300mm, Air Cooled, Self-contained 200-240V 60Hz

ACSC100

Uniflair InRow SC, 300mm, Air Cooled, Self-contained 200-240V 60Hz
Discontinued
Call Sales Support
800-800-4272

ACSC100

Uniflair InRow SC, 300mm, Air Cooled, Self-contained 200-240V 60Hz

  • Active response controls
    Monitors and actively adjusts cooling capacity to ensure proper server inlet temperatures. Through the microprocessor controller, visibility into the operation and health of the unit is provided.
  • Automatic restart
    Returns the unit to its last operating status in the event of a power failure.
  • Dry contact output
    Provides remote notification of failures when used with APC environmental monitoring unit or system.
  • Easy to install
    Innovative design allows for fast, easy installation by almost anybody.
  • Fault-tolerant fan system
    In the event of a fan failure, the remaining fan(s) will continue to operate.
  • Field replaceable components
    Fans and electronics module can be readily replaced without uninstalling the unit.
  • Horizontal airflow pattern
    Removes heat close to the source of generation in the hot aisle and distributes cold air to the front of the racks in the cold aisle.
  • Scalable Architecture
    Cascade multiple KVM switches for a modular solution that supports multiple platforms, improving flexibility and simplifying future expansion. Please see the user's manual for specific cascading capabilities.

Uniflair Direct Expansion InRow Cooling Features & Benefits

  • Rack inlet temperature control
    Reduces the risk of hot spots at the rack level
  • Predictable cooling
    Placing the unit in the row of racks moves the source of cooling closer to the heat load. This eliminates air mixing and provides a predictable cooling architecture.
  • Active response controls
    Monitors and actively adjusts cooling capacity to ensure proper server inlet temperatures. Through the microprocessor controller, visibility into the operation and health of the unit is provided.
  • Modular design
    Modular design provides scalable solutions to add cooling as demand increases.
  • Scalable densities
    Allows for higher densities to be achieved by integrating containment with room, row and rack cooling system architectures.
  • Easy service access
    Allows for all serviceable components to be replaced/maintained by easily accessible panels/doors.
  • Real-Time capacity monitoring
    Real-time display of current and available cooling.
  • Microprocessor controller
    Utilizes intelligent, active response control, and real-time monitoring. The system is controlled by a microprocessor providing high level control functionality and human interface via a four line, eighty character, alphanumeric display
  • Building management system integration
    Send alarms and data points allowing you to manage critical building infrastructure from a single system.
  • Variable speed fans
    Variable speed fans reduce energy consumption during off-peak cooling periods.
  • Row-based architecture
    Captures hot exhaust air directly from the IT equipment, thereby increasing the unit's sensible cooling capacity over traditional cooling architectures.
Product Distribution
Product Distribution

Antigua & Barbuda , Anguilla , Netherlands Antilles , Barbados , Bermuda , Belize , Dominican Republic , Ecuador , Guatemala , Guyana , Honduras , Jamaica , Cayman Islands , Nicaragua , Panama , Puerto Rico , El Salvador , Trinidad & Tobago , Venezuela , U.S. Virgin Islands

Print Technical Specification

Input

  • Input frequency
    60 Hz
  • Input Connections
    NEMA L6-20P
  • Number of Power Cords
    1
  • Input Power
    2940 Watts

Communications & Management

  • Control panel
    Multifunction LCD status and control console

Physical

  • Maximum Height
    78.39inches ( 1991MM , 199.1CM )
  • Maximum Width
    11.81inches ( 300MM , 30.0CM )
  • Maximum Depth
    42.09inches ( 1069MM , 106.9CM )
  • Rack Height
    42U
  • Net Weight
    365.79lbs. ( 165.92KG )
  • Shipping weight
    476.2lbs. ( 216.0KG )
  • Shipping Height
    84.88inches ( 2156MM , 215.6CM )
  • Shipping Width
    44.8inches ( 1138MM , 113.8CM )
  • Shipping Depth
    30.0inches ( 762MM , 76.2CM )
  • Color
    Black

Environmental

  • Storage Temperature
    0 - 40 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0 - 15000ft ( 0 - 4572meters )
  • Audible noise at 1 meter from surface of unit
    80.0dBA

Conformance

  • Approvals
    BSMI, EN 55022 class A, FCC part 15 class A, ICES-003, UL listed, VCCI, VDE
  • Standard warranty
    1 year (parts only), 1 year on-site repair or replace with factory authorized Start-Up

General

  • Air Discharge Patterns
    Horizontal
  • Air Flow
    1199.9CFM ( 566.3lps )
  • Amp Draw In-Rush
    56.0A
  • Compressor Type
    Rotary
  • Condensate Pump Capacity
    1.3gal/hour ( 0.0lps )
  • Intake Air
    Rear return
  • Refrigerant Charge
    3.09pounds ( 1.4pounds )
