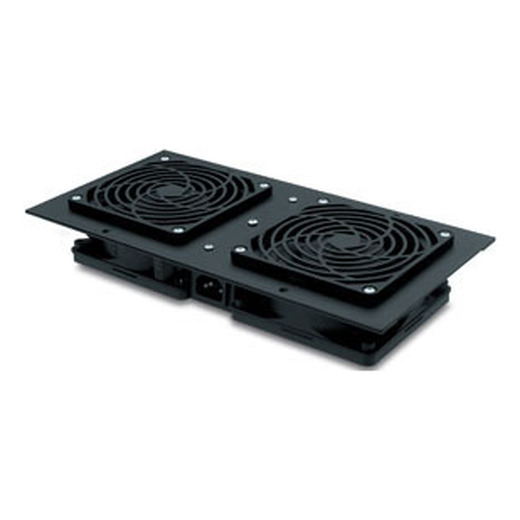

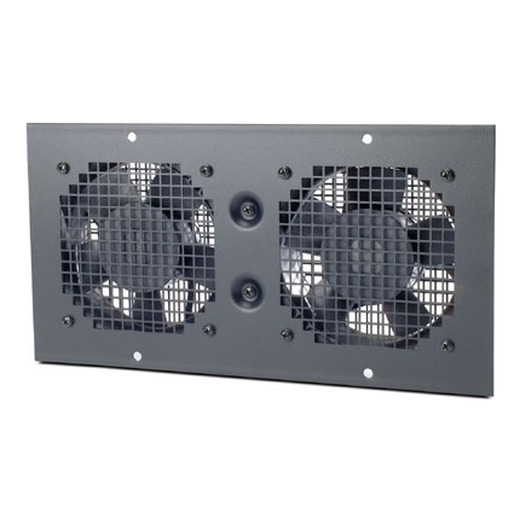

Roof Fan Tray 230V 60HZ for NetShelter WX Enclosures

Share:
Roof Fan Tray 230V 60HZ for NetShelter WX Enclosures Roof Fan Tray 230V 60HZ for NetShelter WX Enclosures Roof Fan Tray 230V 60HZ for NetShelter WX Enclosures
Roof Fan Tray 230V 60HZ for NetShelter WX Enclosures

Roof Fan Tray 230V 60HZ for NetShelter WX Enclosures

AR8207BLK

Roof Fan Tray 230V 60HZ for NetShelter WX Enclosures

The Rack Fan Tray is a low cost solution that aids in heat removal from a Netshelter Enclosure. The system easily installs into the top of the enclosure and expels heat from the roof of the rack. Wall-mounted enclosures have the additional option of installing the rack fan tray systems in the base of the rack as well. The fan trays are designed to promote bottom to top airflow within the enclosure.

Call for More Information
800-800-4272
Includes: (1) IEC to IEC 320 power cord,Installation guide

AR8207BLK

Roof Fan Tray 230V 60HZ for NetShelter WX Enclosures

  • Fan guards
    A safety measure that provides protection from the fan opening by covering the inlet.
  • Occupies 1U of rack space
    Conserve valuable rack space in the data center.

Rack Air Distribution Features & Benefits

  • Easy to install
    Innovative design allows for fast, easy installation by almost anybody.
  • Increases Airflow
    Provides proper intake temperatures, increasing equipment life.
Product Distribution
Product Distribution

United Arab Emirates , Afghanistan , Antigua & Barbuda , Anguilla , Albania , Armenia , Netherlands Antilles , Angola , Argentina , Austria , Australia , Azerbaijan , Bosnia & Herzegovina , Barbados , Belgium , Burkina Faso , Bulgaria , Bahrain , Burundi , Benin , Bolivia , Brazil , Botswana , Belarus , Belize , Canada , Congo - Kinshasa , Switzerland , Côte d’Ivoire , Cameroon , Colombia , Costa Rica , Serbia and Montenegro , Cyprus , Czechia , Germany , Djibouti , Denmark , Dominican Republic , Algeria , Ecuador , Estonia , Egypt , Eritrea , Spain , Ethiopia , Finland , Fiji , France , Gabon , United Kingdom , Georgia , Ghana , Gambia , Greece , Guatemala , Guyana , Hong Kong SAR China , Honduras , Croatia , Hungary , Indonesia , Ireland , Israel , India , Iraq , Iceland , Italy , Jamaica , Jordan , Kenya , Cambodia , South Korea , Kuwait , Cayman Islands , Kazakhstan , Lebanon , Liberia , Lithuania , Luxembourg , Latvia , Morocco , North Macedonia , Mali , Myanmar (Burma) , Mongolia , Mauritania , Malta , Malawi , Mexico , Malaysia , Mozambique , Namibia , Nigeria , Nicaragua , Netherlands , Norway , New Zealand , Oman , Panama , Peru , Philippines , Pakistan , Poland , Puerto Rico , Portugal , Paraguay , Romania , Rwanda , Saudi Arabia , Sweden , Singapore , Slovenia , Slovakia , Sierra Leone , Senegal , Somalia , Suriname , El Salvador , Togo , Thailand , Tajikistan , Turkmenistan , Tunisia , Turkey , Trinidad & Tobago , Taiwan , Tanzania , Ukraine , Uganda , United States , Uruguay , Uzbekistan , Venezuela , U.S. Virgin Islands , Vietnam , Yemen , South Africa , Zambia , Zimbabwe

Print Technical Specification

Input

  • Input frequency
    50/60 Hz
  • Input Connections
    BS1363A British, IEC 60320 C14, Schuko CEE 7/7P
  • Number of Power Cords
    3

Physical

  • Maximum Height
    2.13inches ( 54MM , 5.4CM )
  • Maximum Width
    12.52inches ( 318MM , 31.8CM )
  • Maximum Depth
    6.89inches ( 175MM , 17.5CM )
  • Net Weight
    4.01lbs. ( 1.82KG )
  • Shipping weight
    6.02lbs. ( 2.73KG )
  • Shipping Height
    2.28inches ( 58MM , 5.8CM )
  • Shipping Width
    9.21inches ( 234MM , 23.4CM )
  • Shipping Depth
    12.6inches ( 320MM , 32.0CM )
  • Color
    Black

Conformance

  • Approvals
    CSA, UL listed
  • Standard warranty
    2 years repair or replace

Sustainable Offer Status

  • RoHS
    Compliant
Manuals and Warranties
Title
Size
Updated On

Title

Rack Fan Tray WX Installation (Sheet)
PDF
PDF

Size

223KB

Updated On

2023-09-29

Title
Size
Updated On
