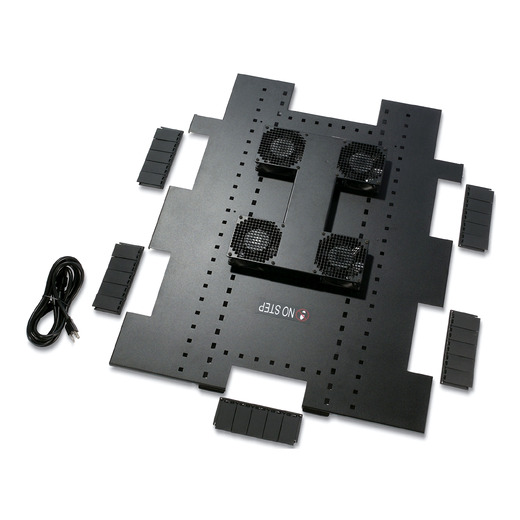

Roof Fan Tray 120VAC 50/60HZ for NetShelter SX 750mm Wide x 1070mm Deep Enclosures

Share:
Roof Fan Tray 120VAC 50/60HZ for NetShelter SX 750mm Wide x 1070mm Deep Enclosures

Roof Fan Tray 120VAC 50/60HZ for NetShelter SX 750mm Wide x 1070mm Deep Enclosures

ACF503

Roof Fan Tray 120VAC 50/60HZ for NetShelter SX 750mm Wide x 1070mm Deep Enclosures
Discontinued
Call Sales Support
800-800-4272

ACF503

Roof Fan Tray 120VAC 50/60HZ for NetShelter SX 750mm Wide x 1070mm Deep Enclosures

  • Fan guards
    A safety measure that provides protection from the fan opening by covering the inlet.
  • Promotes Proper Airflow
    Helps to maintain proper rack temperatures within the enclosure by promoting top to bottom airflow movement.

Rack Air Distribution Features & Benefits

  • Easy to install
    Innovative design allows for fast, easy installation by almost anybody.
  • Increases Airflow
    Provides proper intake temperatures, increasing equipment life.
Product Distribution
Product Distribution

Antigua & Barbuda , Anguilla , Netherlands Antilles , Barbados , Bermuda , Bolivia , Belize , Dominican Republic , Ecuador , Guatemala , Guyana , Honduras , Jamaica , Nicaragua , Panama , Puerto Rico , Paraguay , El Salvador , Trinidad & Tobago , Uruguay , Venezuela , U.S. Virgin Islands

Print Technical Specification

Input

  • Input frequency
    50/60 Hz
  • Input Connections
    NEMA 5-15P
  • Number of Power Cords
    1

Physical

  • Maximum Height
    2.36inches ( 60MM , 6.0CM )
  • Maximum Width
    28.5inches ( 724MM , 72.4CM )
  • Maximum Depth
    35.16inches ( 893MM , 89.3CM )
  • Net Weight
    22.58lbs. ( 10.24KG )
  • Shipping weight
    30.47lbs. ( 13.82KG )
  • Shipping Height
    6.5inches ( 165MM , 16.5CM )
  • Shipping Width
    39.02inches ( 991MM , 99.1CM )
  • Shipping Depth
    35.98inches ( 914MM , 91.4CM )
  • Color
    Black

Environmental

  • Audible noise at 1 meter from surface of unit
    51.0dBA

Conformance

  • Approvals
    CSA C22.2 No 60950, PSE, UL 60950
  • Standard warranty
    2 years repair or replace

Sustainable Offer Status

  • RoHS
    Compliant

General

  • Air Flow
    440.1CFM ( 207.7lps )
Manuals and Warranties
Title
Size
Updated On

Title

Roof Fan Tray for NetShelter™ SX Cabinets
PDF
PDF

Size

606KB

Updated On

2024-07-12

Installation
Title
Size
Updated On
Cooling Solutions, Air Distribution, Rack Air Distribution
ACF503 - Roof Fan Tray 120V 50/60Hz for NSH SX 750mm
CAD Source File
2802KB
2023-10-04

ACF503 - Roof Fan Tray 120V 50/60Hz for NSH SX 750mm
PDF
509KB
2023-10-04
