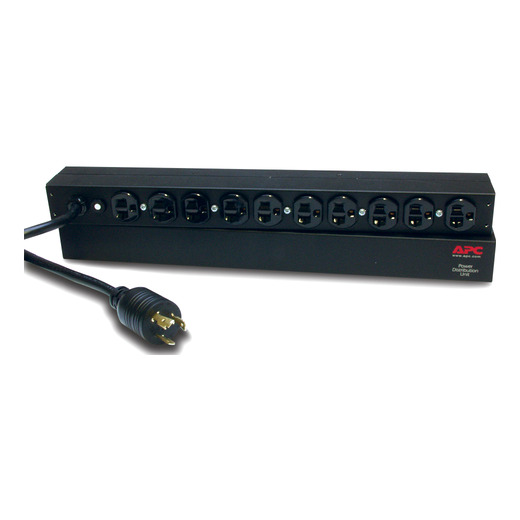

Rack PDU, Basic, 1U, 20A, 120V, (10)5-20; L5-20P

Share:
Rack PDU, Basic, 1U, 20A, 120V, (10)5-20; L5-20P Rack PDU, Basic, 1U, 20A, 120V, (10)5-20; L5-20P Rack PDU, Basic, 1U, 20A, 120V, (10)5-20; L5-20P
Rack PDU, Basic, 1U, 20A, 120V, (10)5-20; L5-20P

Rack PDU, Basic, 1U, 20A, 120V, (10)5-20; L5-20P

AP9564

Rack PDU, Basic, 1U, 20A, 120V, (10)5-20; L5-20P

null

Call for More Information
800-800-4272
Includes: Installation guide,Rack mounting brackets

NetShelter Basic Rack PDUs Features & Benefits

  • Rack-Mountable
    Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
  • Wide range of input and output connections
    Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.
  • Single input power source
    Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
  • Low Cost Power Distribution
    Provides a number of outlets to bring power to rack equipment at an affordable price.
Product Distribution
Product Distribution

Netherlands Antilles , Barbados , Bermuda , Bahamas , Dominica , Dominican Republic , Ecuador , Grenada , Guadeloupe , Guatemala , Honduras , Haiti , Jamaica , St. Kitts & Nevis , Martinique , Nicaragua , Panama , Puerto Rico , El Salvador , Turks & Caicos Islands , Trinidad & Tobago , St. Vincent & Grenadines , Venezuela

Print Technical Specification

Output

  • Nominal Output Voltage
    120V
  • Maximum Total Current Draw
    20
  • Output Connections
    (10) NEMA 5-20R (Battery Backup)

Input

  • Nominal Input Voltage
    100V , 120V
  • Input frequency
    50/60 Hz
  • Input Connections
    NEMA L5-20P
  • Cord Length
    12.14ft ( 3.7meters )
  • Number of Power Cords
    1
  • Load Capacity
    1920VA
  • Maximum Input Current
    20A
  • Regulatory Derated Input Current (North America)
    16A

Physical

  • Maximum Height
    1.73inches ( 44MM , 4.4CM )
  • Maximum Width
    17.6inches ( 447MM , 44.7CM )
  • Maximum Depth
    2.24inches ( 57MM , 5.7CM )
  • Rack Height
    1U
  • Net Weight
    5.51lbs. ( 2.5KG )
  • Shipping weight
    8.02lbs. ( 3.64KG )
  • Shipping Height
    2.76inches ( 70MM , 7.0CM )
  • Shipping Width
    9.02inches ( 229MM , 22.9CM )
  • Shipping Depth
    18.27inches ( 464MM , 46.4CM )
  • Color
    Black

Environmental

  • Operating Temperature
    23 - 113 °F ( -5 - 45 °C )
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0 - 10000ft ( 0 - 3048meters )
  • Storage Temperature
    -25 - 65 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0 - 50000ft ( 0 - 15240meters )

Conformance

  • Approvals
    cUL listed, UL listed
  • Standard warranty
    2 years repair or replace

Sustainable Offer Status

  • RoHS
    Compliant
Manuals and Warranties
Title
Size
Updated On

Title

Basic Rack PDU 100-120 V; 15 A, 20 A Installation and Operation
PDF
PDF

Size

258KB

Updated On

2023-09-29

Installation Instructions for AP9562, AP9563, and AP9564 Power Distribution Units
Catalogs
Title
Size
Updated On

Title

Rack Power Distribution Unit (PDU) Pocket Guide
PDF
PDF

Size

7075KB

Updated On

2024-11-04

Brochure including Basic, Metered, Switched, and Metered by Outlet Rack PDUs product features and specifications

Title

APC Modular Power Distribution, Modular Power Accessories, and Rack PDUs: 208 and 415V Compatibility Chart
PDF
PDF

Size

48KB

Updated On

2023-10-04

Chart that specifies the APC Modular Power Distribution Units that support the installation of APC 208V & 415V Power Distribution Modules and specifies compatible APC Rack PDUs for each PDM.
Agency Approvals
Title
Size
Updated On

Title

CCC Exemption Letter
PDF
PDF

Size

742KB

Updated On

2024-07-23

CCC Out Of Scope Letter PDUs Metered/Switched

Title

Confirmation Letter for Products Outside the scope of China Certificate
PDF
PDF

Size

83KB

Updated On

2022-10-07

Environmental Profile
Title
Size
Updated On

Title

EoLi - Basic Rack PDUs
PDF
PDF

Size

676KB

Updated On

2022-10-05

End of Life Instruction (EoLI) for the Basic Rack PDU Product Range
Title
Size
Updated On
Power Distribution, Basic Rack PDU
AP9564 - Rack PDU, Basic
CAD Source File
200KB
2021-09-14

AP9564 - Rack PDU, Basic
PDF
104KB
2021-09-14
