Rack PDU, Basic, 1U, 14.4kW, 208V, (6) C19

Share:

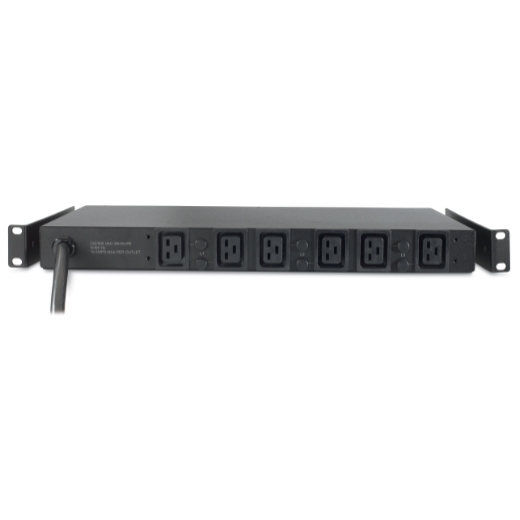

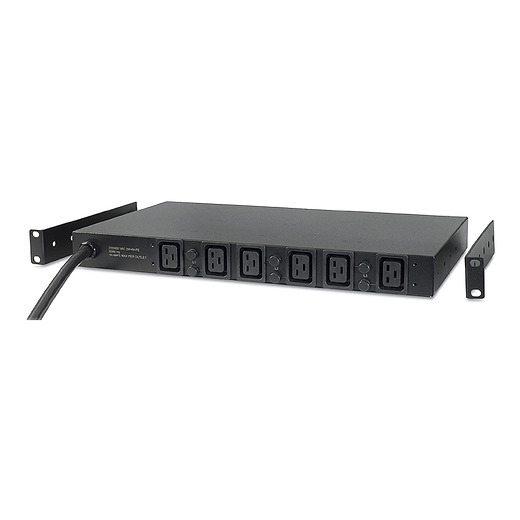

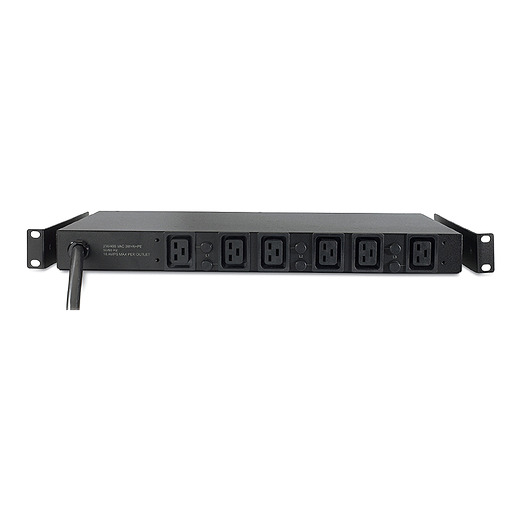

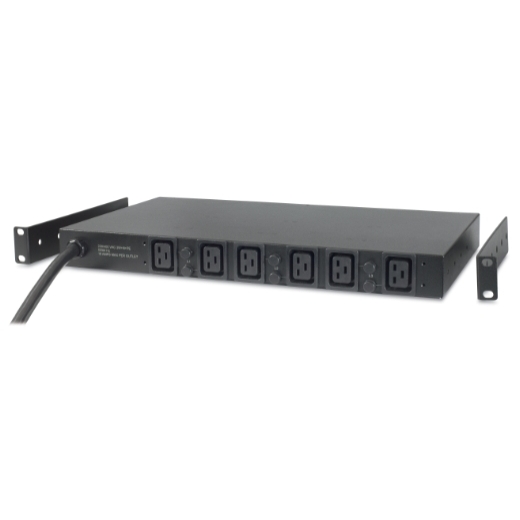

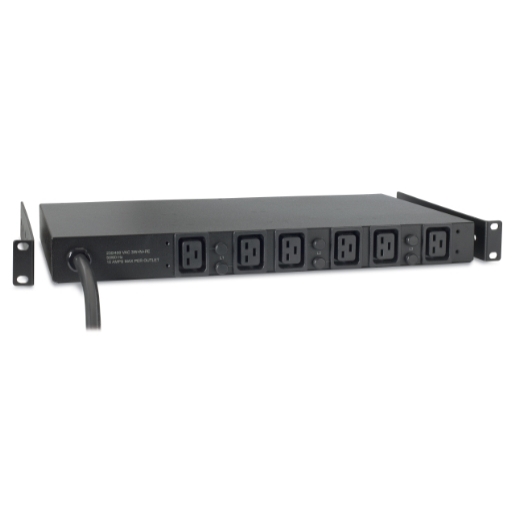

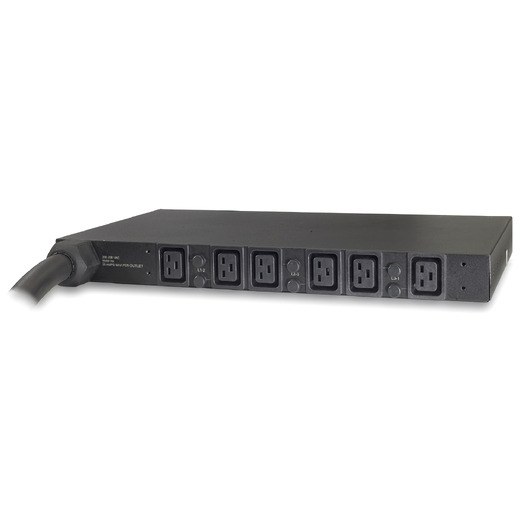

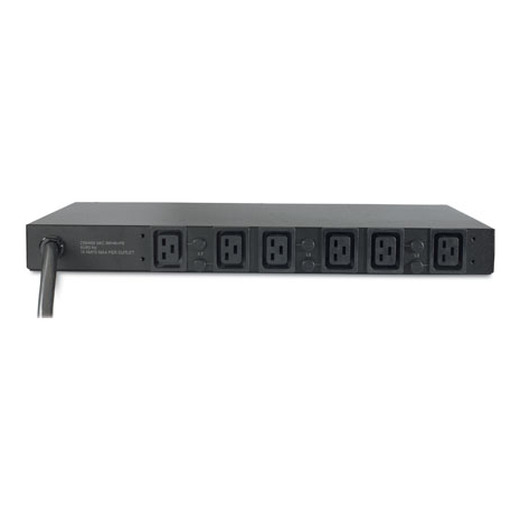

Rack PDU, Basic, 1U, 14.4kW, 208V, (6) C19

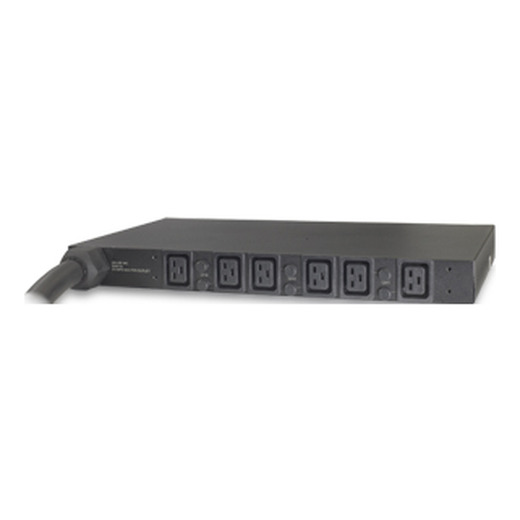

Rack PDU, Basic, 1U, 14.4kW, 208V, (6) C19

AP7516

$730.00
Call for Availability
800-800-4272

AP7516

Rack PDU, Basic, 1U, 14.4kW, 208V, (6) C19

  • Resettable circuit breakers
    Enables a quick recovery from overload events.

NetShelter Basic Rack PDUs Features & Benefits

  • Low Cost Power Distribution
    Provides a number of outlets to bring power to rack equipment at an affordable price.
  • Wide range of input and output connections
    Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.

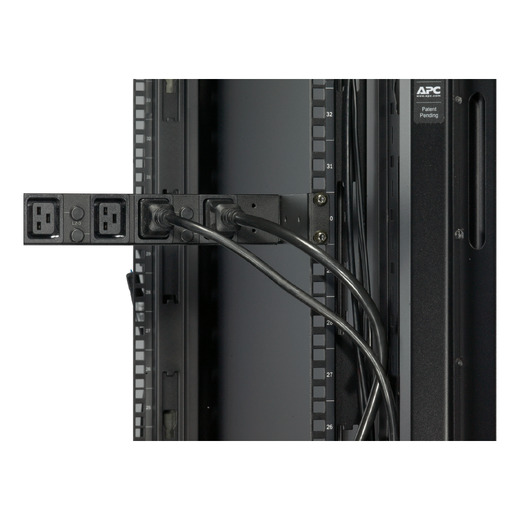

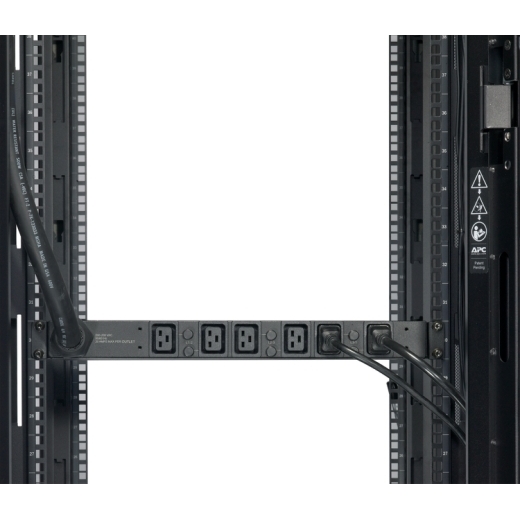

  • Rack-Mountable
    Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
  • Single input power source
    Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Product Distribution
Product Distribution

Belgium , Brazil , Canada , Switzerland , Chile , Serbia and Montenegro , Germany , United Kingdom , Greece , Croatia , Israel , Italy , South Korea , Morocco , Netherlands , Slovenia , Turkey , Taiwan , United States

Print Technical Specification

Output

  • Nominal Output Voltage
    200V , 208V
  • Overload Protection
    Yes
  • Maximum Total Current Draw
    40
  • Output Connections
    (6) IEC 60320 C19 (Battery Backup)

Input

  • Nominal Input Voltage
    208V 3PH
  • Input frequency
    50/60 Hz
  • Input Connections
    CS8365
  • Cord Length
    8.01ft ( 2.4meters )
  • Load Capacity
    14400VA
  • Maximum Input Current
    50A
  • Regulatory Derated Input Current (North America)
    40A

Physical

  • Maximum Height
    1.73inches ( 44MM , 4.4CM )
  • Maximum Width
    17.2inches ( 437MM , 43.7CM )
  • Maximum Depth
    10.0inches ( 254MM , 25.4CM )
  • Rack Height
    1U
  • Net Weight
    17.59lbs. ( 7.98KG )
  • Shipping weight
    22.27lbs. ( 10.1KG )
  • Shipping Height
    9.49inches ( 241MM , 24.1CM )
  • Shipping Width
    19.76inches ( 502MM , 50.2CM )
  • Shipping Depth
    22.01inches ( 559MM , 55.9CM )
  • Color
    Black

Environmental

  • Operating Temperature
    23 - 113 °F ( -5 - 45 °C )
  • Operating Relative Humidity
    5 - 95 %
  • Operating Elevation
    0 - 10000ft ( 0 - 3048meters )
  • Storage Temperature
    -25 - 65 °C
  • Storage Relative Humidity
    5 - 95 %
  • Storage Elevation
    0 - 50000ft ( 0 - 15240meters )

Conformance

  • Approvals
    CSA C22.2 No. 60950-1-03, cUL listed, METI Denan, UL 60950-1, UL listed
  • Standard warranty
    2 years repair or replace

Sustainable Offer Status

  • RoHS
    Compliant
