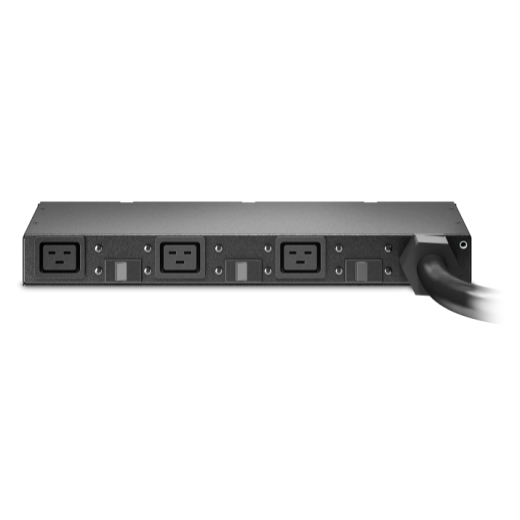

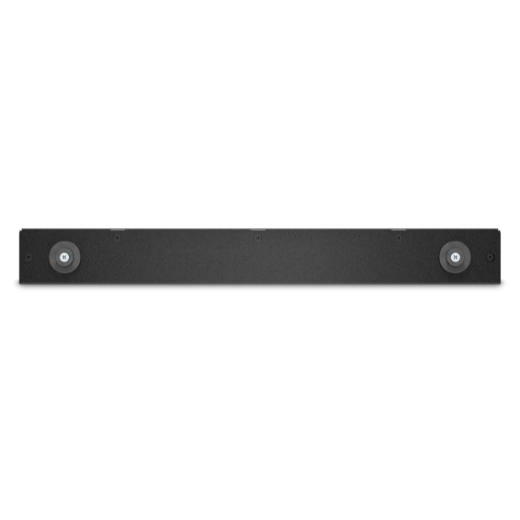

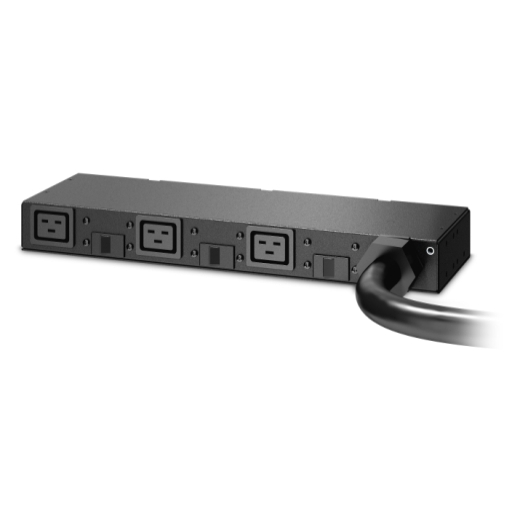

Rack PDU, Basic, 0U/1U, 208V, 8.6kW, (3) C19

AP6037A

In stock

$257.00

AP6037A

Rack PDU, Basic, 0U/1U, 208V, 8.6kW, (3) C19

Reliable rack power distribution

Includes : Installation guide , Safety guide

NetShelter Basic Rack PDUs Features & Benefits

Total cost of Ownership

Low Cost Power Distribution

Provides a number of outlets to bring power to rack equipment at an affordable price.

Agility

Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.
Rack-Mountable

Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source

Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Product Distribution

Afghanistan , Australia , Canada , Fiji , Indonesia , India , Italy , Cambodia , South Korea , Myanmar (Burma) , Malaysia , New Zealand , Philippines , Portugal , Singapore , Thailand , Taiwan , United States , Vietnam

Print Technical Specification

Output

Overload Protection
Yes
Maximum Total Current Draw
30
Output Connections

(3) IEC 60320 C19 (Battery Backup)

Input

Nominal Input Voltage
200V , 208V
Input frequency
50/60 Hz
Input Connections
NEMA L15-30P
Cord Length
12.01ft ( 3.7meters )
Acceptable Input Voltage
200 - 240VAC
Load Capacity
8600VA
Maximum Input Current
30A
Maximum Line Current
30A
Regulatory Derated Input Current (North America)
24A

Physical

Maximum Height
1.73inches ( 44MM , 4.4CM )
Maximum Width
15.28inches ( 388MM , 38.8CM )
Maximum Depth
4.96inches ( 126MM , 12.6CM )
Rack Height
1U
Net Weight
7.94lbs. ( 3.6KG )
Shipping weight
11.16lbs. ( 5.06KG )
Shipping Height
13.07inches ( 332MM , 33.2CM )
Shipping Width
7.68inches ( 195MM , 19.5CM )
Shipping Depth
17.91inches ( 455MM , 45.5CM )
Color
Black

Conformance

Approvals
cUL listed, UL listed
Standard warranty
2 years repair or replace

Sustainable Offer Status

RoHS
Compliant

Design/Configuration

Title

Size

Updated On

Title

Basic Rack Power Distribution Unit AP6037A Overview Sheet

PDF

Size

186KB

Updated On

2023-09-29

Overview and Specifications of the Basic Rack Power Distribution Unit AP6037A
