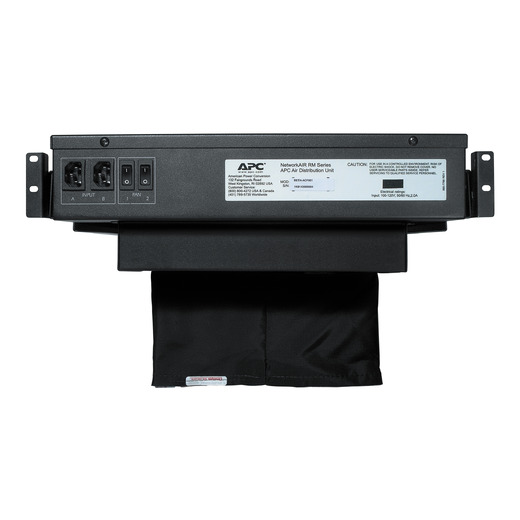

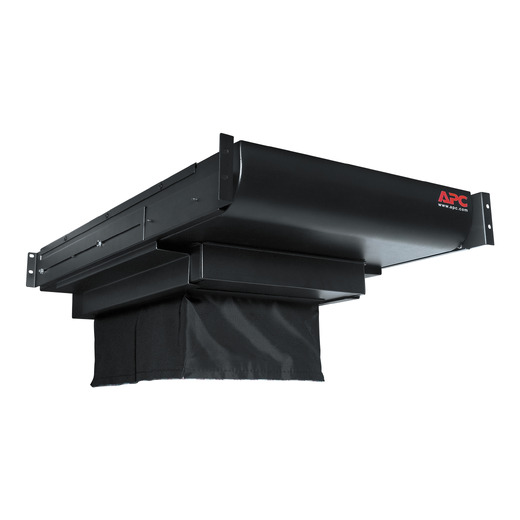

Rack Air Distribution Unit 2U 208/230V 50/60HZ

Rack Air Distribution Unit 2U 208/230V 50/60HZ

ACF002

Rack Air Distribution Unit 2U 208/230V 50/60HZ
Discontinued

ACF002

Rack Air Distribution Unit 2U 208/230V 50/60HZ

  • Dual fans
    Provides fault tolerance in the event of a fan failure.
  • Fan control switches
    Users can turn one or both fans on and off depending on the heat load.
  • Fan guards
    A safety measure that provides protection from the fan opening by covering the inlet.
  • Mounting rails
    Adjustable depth allows the unit to fit APC NetShelter enclosures or other 19" EIA-310-D enclosures.
  • Promotes Proper Airflow
    Helps to maintain proper rack temperatures within the enclosure by promoting top to bottom airflow movement.

Rack Air Distribution Features & Benefits

  • Easy to install
    Innovative design allows for fast, easy installation by almost anybody.
  • Increases Airflow
    Provides proper intake temperatures, increasing equipment life.
Product Distribution
Product Distribution

United Arab Emirates , Afghanistan , Albania , Armenia , Angola , Argentina , Austria , Australia , Azerbaijan , Bosnia & Herzegovina , Belgium , Burkina Faso , Bulgaria , Bahrain , Burundi , Benin , Botswana , Belarus , Canada , Congo - Kinshasa , Switzerland , Côte d’Ivoire , Chile , Cameroon , China , Colombia , Serbia and Montenegro , Cyprus , Czechia , Germany , Djibouti , Denmark , Algeria , Estonia , Egypt , Eritrea , Spain , Ethiopia , Finland , Fiji , France , Gabon , United Kingdom , Georgia , French Guiana , Ghana , Gambia , Guadeloupe , Greece , Hong Kong SAR China , Croatia , Hungary , Indonesia , Ireland , Israel , India , Iraq , Iceland , Italy , Jordan , Kenya , Cambodia , South Korea , Kuwait , Cayman Islands , Kazakhstan , Lebanon , Liberia , Lithuania , Luxembourg , Latvia , Morocco , Madagascar , North Macedonia , Mali , Myanmar (Burma) , Mongolia , Martinique , Mauritania , Malta , Mauritius , Malawi , Malaysia , Mozambique , Namibia , Nigeria , Netherlands , Norway , New Zealand , Oman , Philippines , Pakistan , Poland , Portugal , Paraguay , Réunion , Romania , Rwanda , Saudi Arabia , Sweden , Singapore , Slovenia , Slovakia , Sierra Leone , Senegal , Somalia , Suriname , Togo , Thailand , Tajikistan , Turkmenistan , Tunisia , Turkey , Taiwan , Tanzania , Ukraine , Uganda , United States , Uruguay , Uzbekistan , Vietnam , Yemen , Mayotte , South Africa , Zambia , Zimbabwe

Print Technical Specification

Input

  • Input frequency
    50/60 Hz
  • Input Connections
    IEC 60320 C13, IEC 60320 C14
  • Number of Power Cords
    2
  • Input Power
    230 Watts

Physical

  • Maximum Height
    3.5inches ( 89MM , 8.9CM )
  • Maximum Width
    16.61inches ( 422MM , 42.2CM )
  • Maximum Depth
    29.02inches ( 737MM , 73.7CM )
  • Rack Height
    2U
  • Net Weight
    41.09lbs. ( 18.64KG )
  • Shipping weight
    59.13lbs. ( 26.82KG )
  • Shipping Height
    10.0inches ( 254MM , 25.4CM )
  • Shipping Width
    32.99inches ( 838MM , 83.8CM )
  • Shipping Depth
    32.99inches ( 838MM , 83.8CM )
  • Color
    Black

Environmental

  • Audible noise at 1 meter from surface of unit
    70.0dBA

Conformance

  • Approvals
    CE, UL recognized
  • Standard warranty
    2 years repair or replace

General

  • Air Flow
    420.0CFM ( 198.2lps )
Manuals and Warranties
Title
Size
Updated On
PDF

Size

472KB

Updated On

2023-09-29

Agency Approvals
Title
Size
Updated On
PDF

Size

56KB

Updated On

2024-02-22

UL Canada,UL Recognized for Rack Side Air Distribution and complies to UL 507
PDF

Size

697KB

Updated On

2024-02-22

VDE license for ACF202 - EN 60950
