REPLACEABLE, RACKMOUNT, 1U, SINGLE LINE, CableTV SURGE PROTECTION MODULE

Share:
REPLACEABLE, RACKMOUNT, 1U, SINGLE LINE, CableTV SURGE PROTECTION MODULE REPLACEABLE, RACKMOUNT, 1U, SINGLE LINE, CableTV SURGE PROTECTION MODULE REPLACEABLE, RACKMOUNT, 1U, SINGLE LINE, CableTV SURGE PROTECTION MODULE REPLACEABLE, RACKMOUNT, 1U, SINGLE LINE, CableTV SURGE PROTECTION MODULE
REPLACEABLE, RACKMOUNT, 1U, SINGLE LINE, CableTV SURGE PROTECTION MODULE

VÝMĚNNÝ MODUL PŘEPĚŤOVÉ OCHRANY pro kabelovou TV, MONTÁŽ DO STOJANU, 1U, JEDNO VEDENÍ

PVR

VÝMĚNNÝ MODUL PŘEPĚŤOVÉ OCHRANY pro kabelovou TV, MONTÁŽ DO STOJANU, 1U, JEDNO VEDENÍ
Discontinued
Call Sales Support
800-800-4272

PVR

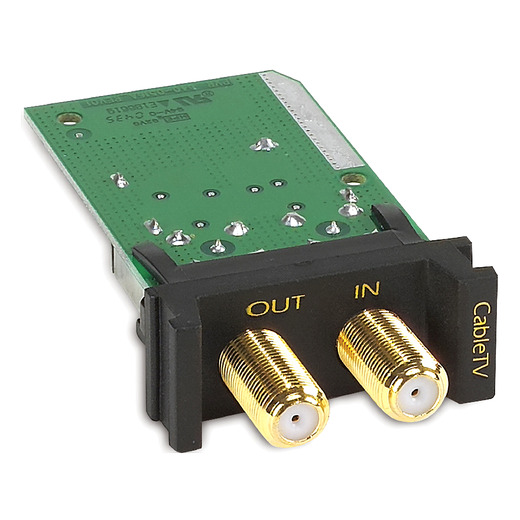

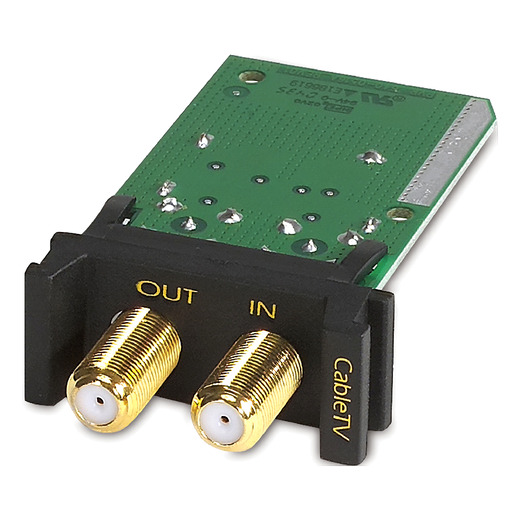

REPLACEABLE, RACKMOUNT, 1U, SINGLE LINE, CableTV SURGE PROTECTION MODULE

  • Catastrophic Event Protection
    SurgeArrest components such as MOVs and Thermal fuse ensure instantaneous reaction to lightning strikes and wiring faults. If the surge components are damaged due to power spike or over voltage, excess power cannot reach your equipment. Unlike the APC SurgeArrest products, most surge suppressors continue to let power through even after circuits have been damaged, leaving your equipment exposed to other damaging surges.

ProtectNet Features & Benefits

  • Lightning and Surge Protection
    To prevent damage to your equipment from electric power surges and spikes.
  • Fail Safe Mode
    Most other surge suppressors continue to let power through even after their circuits have been damaged, leaving your equipment exposed to future surges. APC's SurgeArrest fail safe, which means that once the circuit of an APC SurgeArrest has been compromised the unit disconnects equipment from the power supply ensuring that no damaging surges reach your equipment.
  • Data-line Protection
    Protection of data lines (Ethernet, Coaxial and Phone lines) ensures complete protection of your equipment from surges. It is very important to protect your equipment from “back door” electric surges traveling through data lines, as they can be as damaging to your equipment as surges traveling over power lines.
Product Distribution
Product Distribution

United Arab Emirates , Afghanistan , Antigua & Barbuda , Anguilla , Albania , Armenia , Netherlands Antilles , Angola , Austria , Australia , Azerbaijan , Bosnia & Herzegovina , Barbados , Belgium , Burkina Faso , Bulgaria , Bahrain , Burundi , Benin , Bermuda , Bolivia , Botswana , Belarus , Belize , Canada , Congo - Kinshasa , Switzerland , Côte d’Ivoire , Cameroon , Colombia , Costa Rica , Serbia and Montenegro , Cyprus , Czechia , Germany , Djibouti , Denmark , Dominican Republic , Algeria , Ecuador , Estonia , Egypt , Eritrea , Spain , Ethiopia , Finland , Fiji , France , Gabon , United Kingdom , Georgia , Ghana , Gambia , Guatemala , Guyana , Hong Kong SAR China , Honduras , Croatia , Hungary , Indonesia , Ireland , India , Iraq , Iceland , Italy , Jamaica , Jordan , Kenya , Cambodia , South Korea , Kuwait , Cayman Islands , Kazakhstan , Lebanon , Liberia , Lithuania , Luxembourg , Latvia , Morocco , North Macedonia , Mali , Myanmar (Burma) , Mongolia , Mauritania , Malta , Malawi , Malaysia , Mozambique , Namibia , Nigeria , Nicaragua , Netherlands , New Zealand , Oman , Panama , Peru , Philippines , Pakistan , Poland , Puerto Rico , Portugal , Paraguay , Romania , Rwanda , Saudi Arabia , Sweden , Singapore , Slovenia , Slovakia , Sierra Leone , Senegal , Somalia , Suriname , El Salvador , Togo , Thailand , Tajikistan , Turkmenistan , Tunisia , Trinidad & Tobago , Tanzania , Ukraine , Uganda , United States , Uruguay , Uzbekistan , Venezuela , U.S. Virgin Islands , Vietnam , Yemen , South Africa , Zambia , Zimbabwe

Print Technical Specification

Output

  • Number of Outlets
    1.0

Surge Protection and Filtering

  • Data Lines Protected
    (multi-line only)
    1
  • ts_nm_surge_response
    1ns

Physical

  • Maximum Height
    1.73inches ( 44MM , 4.4CM )
  • Maximum Width
    0.75inches ( 19MM , 1.9CM )
  • Maximum Depth
    2.72inches ( 69MM , 6.9CM )
  • Net Weight
    0.13lbs. ( 0.06KG )
  • Shipping weight
    0.62lbs. ( 0.28KG )
  • Shipping Height
    3.9inches ( 99MM , 9.9CM )
  • Shipping Width
    3.74inches ( 95MM , 9.5CM )
  • Shipping Depth
    1.3inches ( 33MM , 3.3CM )
  • Color
    Black
  • SCC Codes
    30731304217191

Environmental

  • Operating Temperature
    5 - 113 °F ( -15 - 45 °C )
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0 - 10000ft ( 0 - 3048meters )
  • Storage Temperature
    -15 - 45 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0 - 10000ft ( 0 - 3048meters )

Conformance

  • Approvals
    UL recognized
  • Standard warranty
    Lifetime
Manuals and Warranties
Title
Size
Updated On

Title

Rack-mount ProtectNet (Manual)
PDF
PDF

Size

778KB

Updated On

2022-07-27

Installation; Electrical Connection; General Specifications; Technical Specifications; Troubleshooting; Warranty and Service
Brožura
Title
Size
Updated On

Title

ProtectNet Surge Protectors Specification Sheet
PDF
PDF

Size

88KB

Updated On

2023-09-29

Lists and describes APCs ProtectNet surge protectors features, benefits and technical specifications.
Osvědčení správních orgánů
Title
Size
Updated On

Title

Surge Protection Device (ProtectNet)
PDF
PDF

Size

18KB

Updated On

2024-02-22

Declaration of Conformity for Surge Protection Device (ProtectNet)
