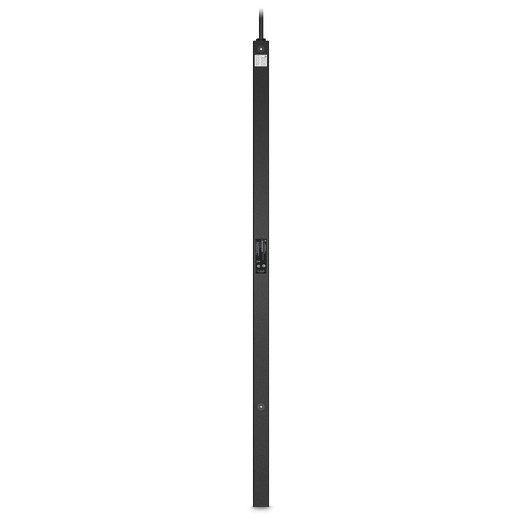

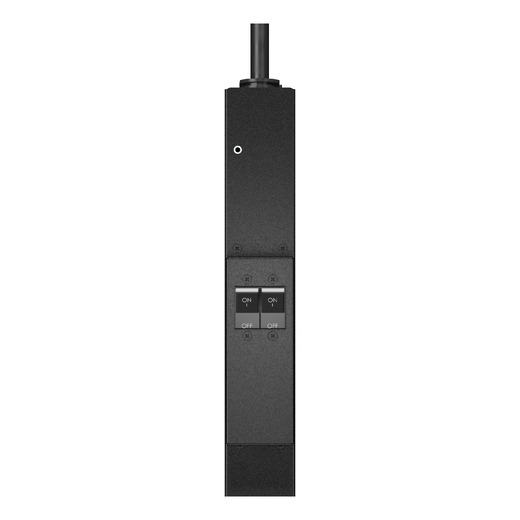

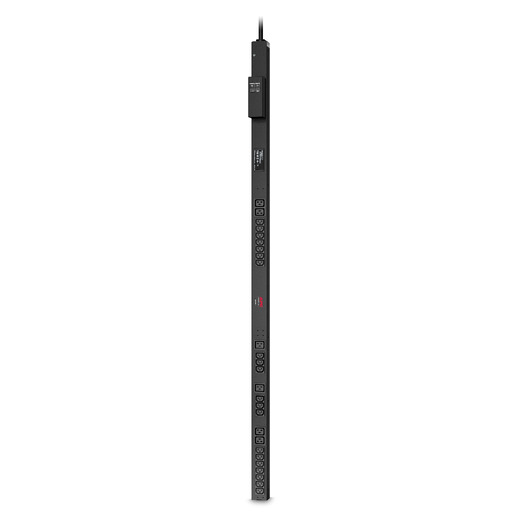

RACK PDU, BASIC, VERTICAL, 220-240V, 32A, (20) C13, (6) C19

Share:
RACK PDU, BASIC, VERTICAL, 220-240V, 32A, (20) C13, (6) C19 RACK PDU, BASIC, VERTICAL, 220-240V, 32A, (20) C13, (6) C19 RACK PDU, BASIC, VERTICAL, 220-240V, 32A, (20) C13, (6) C19
RACK PDU, BASIC, VERTICAL, 220-240V, 32A, (20) C13, (6) C19

RACK PDU, BASIC, VERTICAL, 220-240V, 32A, (20) C13, (6) C19

AP6009A

$574.00
Call for Availability
800-800-4272

NetShelter Basic Rack PDUs Features & Benefits

  • Low Cost Power Distribution
    Provides a number of outlets to bring power to rack equipment at an affordable price.
  • Wide range of input and output connections
    Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.
  • Rack-Mountable
    Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
  • Single input power source
    Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Product Distribution
Product Distribution

Afghanistan , Australia , Belgium , Brazil , Canada , China , Serbia and Montenegro , Fiji , France , United Kingdom , Greece , Hong Kong SAR China , Croatia , Indonesia , Israel , India , Italy , Cambodia , South Korea , Myanmar (Burma) , Malaysia , Netherlands , New Zealand , Philippines , Portugal , Singapore , Slovenia , Thailand , Taiwan , United States , Vietnam

Print Technical Specification

Output

  • Nominal Output Voltage
    230V
  • Overload Protection
    Yes
  • Maximum Total Current Draw
    32
  • Output Connections
    (6) IEC 60320 C19 (Battery Backup)
    (20) IEC 60320 C13 (Battery Backup)

Input

  • Nominal Input Voltage
    230V
  • Input frequency
    50/60 Hz
  • Input Connections
    IEC 60309 32 A 2P + E
  • Cord Length
    10.01ft ( 3.1meters )
  • Acceptable Input Voltage
    200 - 240VAC
  • Number of Power Cords
    1
  • Load Capacity
    7400VA
  • Maximum Input Current
    32A

Physical

  • Maximum Height
    64.02inches ( 1626MM , 162.6CM )
  • Maximum Width
    2.2inches ( 56MM , 5.6CM )
  • Maximum Depth
    1.69inches ( 43MM , 4.3CM )
  • Net Weight
    13.62lbs. ( 6.18KG )
  • Shipping weight
    17.64lbs. ( 8.0KG )
  • Shipping Height
    73.82inches ( 1875MM , 187.5CM )
  • Shipping Width
    5.31inches ( 135MM , 13.5CM )
  • Shipping Depth
    8.9inches ( 226MM , 22.6CM )

Environmental

  • Operating Temperature
    32 - 122 °F ( 0 - 50 °C )
  • Operating Relative Humidity
    5 - 95 %
  • Operating Elevation
    0 - 10000ft ( 0 - 3048meters )
  • Storage Temperature
    -15 - 65 °C
  • Storage Relative Humidity
    5 - 95 %
  • Storage Elevation
    0 - 50000ft ( 0 - 15240meters )

Conformance

  • Approvals
    CE, EAC, IRAM, VDE
  • Standard warranty
    2 years repair or replace

Sustainable Offer Status

  • RoHS
