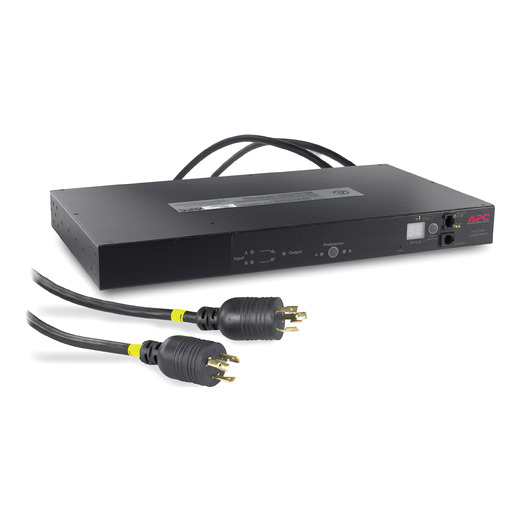

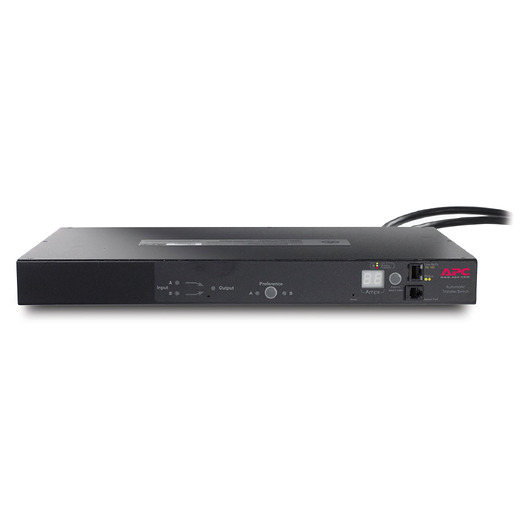

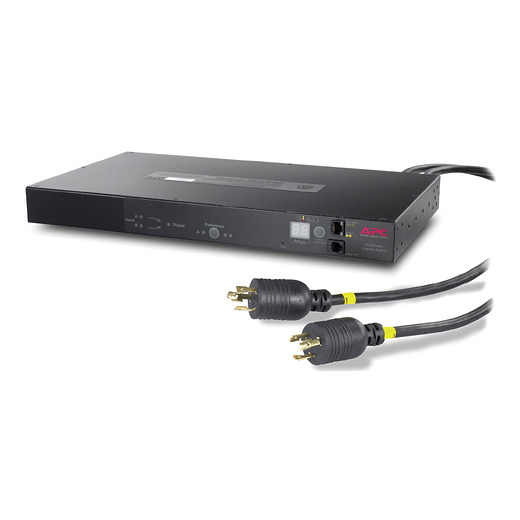

RACK ATS, 120V, 20A, L5-20 IN, (10) 5-20R OUT

Share:
RACK ATS, 120V, 20A, L5-20 IN, (10) 5-20R OUT

RACK ATS, 120V, 20A, L5-20 IN, (10) 5-20R OUT

AP7752

RACK ATS, 120V, 20A, L5-20 IN, (10) 5-20R OUT
Discontinued
Call Sales Support
800-800-4272

AP7752

RACK ATS, 120V, 20A, L5-20 IN, (10) 5-20R OUT

  • Local Current Monitoring Display
    The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)

NetShelter Rack Transfer Switches Features & Benefits

  • Rack-Mountable
    Occupys only 1U of valuable rack space. Puts the power where it is needed most - in the rack near the equipment.
  • Information Displays
    Indicates the status of the AC sources powering the units, as well as indicates which source is set as the primary source and which source is currently supplying power to the load. This provides a visual depiction of the power flow from the input to the load. This allows the user to quickly glance at the power flow and status of the input sources without connecting to the unit.
  • Wide range of input and output connections
    Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.
  • Transfer time <10ms
    Industry leading transfer time to ensure seamless ride through in the event of a primary power source failure.
  • Dual Input Power Sources
    Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternative power source.
  • 10 kAIC Overcurrent Protection
    Provides protection in the event of a significant overcurrent event.
  • Color LCD display
    Provides more robust and intuitive local control and manageability.
  • Network Management Capabilities
    Full-featured network management interfaces that provide standards-based management via Web and SNMP. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time.
Product Distribution
Product Distribution

Antigua & Barbuda , Anguilla , Netherlands Antilles , Argentina , Barbados , Bermuda , Bolivia , Brazil , Bahamas , Belize , Canada , Costa Rica , Czechia , Dominica , Dominican Republic , Ecuador , Spain , Grenada , Greece , Guatemala , Guyana , Honduras , Haiti , Israel , Italy , Jamaica , St. Kitts & Nevis , South Korea , Cayman Islands , St. Lucia , Morocco , Nicaragua , Netherlands , Panama , Peru , Puerto Rico , Portugal , Paraguay , Slovakia , El Salvador , Turkey , Trinidad & Tobago , Taiwan , United States , Uruguay , St. Vincent & Grenadines , Venezuela , U.S. Virgin Islands

Print Technical Specification

Output

  • Nominal Output Voltage
    120V
  • Overload Protection
    No
  • Maximum Total Current Draw
    20
  • Output Connections
    (10) NEMA 5-20R (Battery Backup)

Input

  • Nominal Input Voltage
    100V , 120V
  • Input frequency
    47 - 63 Hz
  • Input Connections
    NEMA L5-20P
  • Cord Length
    7.87ft ( 2.4meters )
  • Number of Power Cords
    2
  • Maximum Input Current
    20A
  • Maximum Line Current
    20A
  • Regulatory Derated Input Current (North America)
    16A

Physical

  • Maximum Height
    1.73inches ( 44MM , 4.4CM )
  • Maximum Width
    17.01inches ( 432MM , 43.2CM )
  • Maximum Depth
    9.02inches ( 229MM , 22.9CM )
  • Rack Height
    1U
  • Net Weight
    10.98lbs. ( 4.98KG )
  • Shipping weight
    14.88lbs. ( 6.75KG )
  • Shipping Height
    4.49inches ( 114MM , 11.4CM )
  • Shipping Width
    13.74inches ( 349MM , 34.9CM )
  • Shipping Depth
    23.62inches ( 600MM , 60.0CM )

Environmental

  • Operating Temperature
    23 - 113 °F ( -5 - 45 °C )
  • Operating Relative Humidity
    5 - 95 %
  • Operating Elevation
    0 - 10000ft ( 0 - 3048meters )
  • Storage Temperature
    -25 - 65 °C
  • Storage Relative Humidity
    5 - 95 %
  • Storage Elevation
    0 - 50000ft ( 0 - 15240meters )

Conformance

  • Approvals
    EN 55022 class A, FCC part 15 class A
  • Standard warranty
    2 years repair or replace

Sustainable Offer Status

  • PEP
    Available in Documentation tab
  • EOLI
    Available in Documentation tab
