NetBotz 13.56 MHz Rack Access Control

Share:

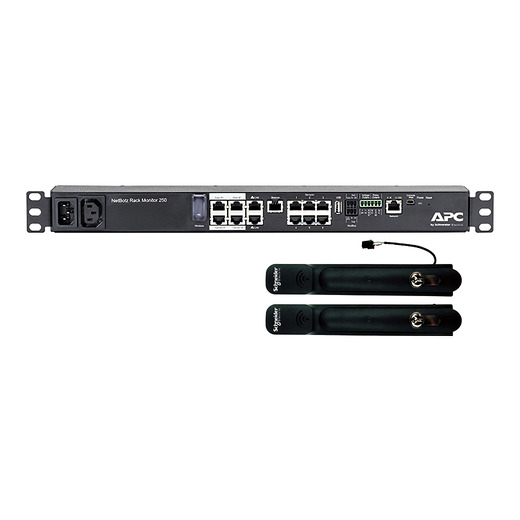

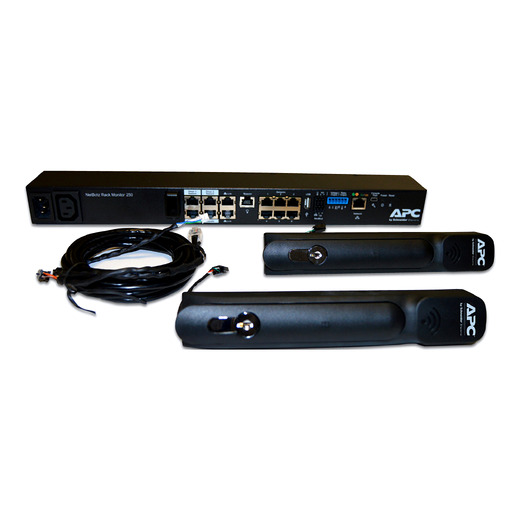

NetBotz 13.56 MHz Rack Access Control

NetBotz 13.56 MHz Rack Access Control

NBACS1356

NetBotz 13.56 MHz Rack Access Control
Discontinued
Call Sales Support
800-800-4272

NBACS1356

NetBotz 13.56 MHz Rack Access Control

  • Access monitoring
    Detect access by unauthorized personnel via door switch.
  • Data logging
    Identify problematic trends before they escalate or export the data log for analysis.
  • Door contact
    Enables a NetBotz appliance to detect the act of opening a door, which triggers surveillance recording.
  • Flexible Alert Policies
    Identify problematic trends before they escalate or export the data log for analysis.
  • Forced Entry Alarm
    Alarm administrators based on a forced entry into a rack.
  • Proximity Card User Registration
    Register proximity cards to specific people.
  • Rack-Mountable
    Occupys only 1U of valuable rack space. Puts the power where it is needed most - in the rack near the equipment.

NetBotz Access Control Features & Benefits

  • User Access Scheduling
    Grant equipment access for specific times for each proximity card configured.
  • Event logging
    Pinpoint the timing and sequence of events leading up to an incident with the event log.
  • Physical access control
    Grant authorized people access to equipment through proximity card authentication.
  • Telnet management
    Provides a simple telnet session or SSH for remote battery management access.
  • Browser Accessible
    View the user interface with a browser. Gives quick access from anywhere on the network without the need to install software.
  • Integrates with StruxureWare Data Center Expert
    An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
  • Master Key Override
    Override electronic access with a hard key for power outages and maintenance.
  • Password security
    User-selectable password with strong password rules and reset password mechanism.
  • Read-only Access
    Share access without risking unauthorized configuration changes.
Product Distribution
Product Distribution

United Arab Emirates , Afghanistan , Antigua & Barbuda , Anguilla , Albania , Armenia , Netherlands Antilles , Angola , Argentina , Austria , Australia , Azerbaijan , Bosnia & Herzegovina , Barbados , Belgium , Burkina Faso , Bulgaria , Bahrain , Burundi , Benin , Bermuda , Bolivia , Brazil , Bahamas , Botswana , Belarus , Belize , Canada , Congo - Kinshasa , Switzerland , Côte d’Ivoire , Chile , Cameroon , China , Colombia , Costa Rica , Serbia and Montenegro , Cyprus , Czechia , Germany , Djibouti , Denmark , Dominica , Dominican Republic , Algeria , Ecuador , Estonia , Egypt , Eritrea , Spain , Ethiopia , Finland , Fiji , Gabon , United Kingdom , Grenada , Georgia , French Guiana , Ghana , Gambia , Guadeloupe , Greece , Guatemala , Guyana , Hong Kong SAR China , Honduras , Croatia , Haiti , Hungary , Indonesia , Ireland , Israel , India , Iraq , Iceland , Italy , Jamaica , Jordan , Japan , Kenya , Cambodia , St. Kitts & Nevis , South Korea , Kuwait , Cayman Islands , Kazakhstan , Lebanon , St. Lucia , Liberia , Lithuania , Luxembourg , Latvia , Morocco , Madagascar , Mali , Myanmar (Burma) , Mongolia , Martinique , Mauritania , Malta , Mauritius , Malawi , Mexico , Malaysia , Mozambique , Namibia , Nigeria , Nicaragua , Netherlands , Norway , New Zealand , Oman , Panama , Peru , Philippines , Pakistan , Poland , Puerto Rico , Portugal , Paraguay , Qatar , Réunion , Romania , Rwanda , Saudi Arabia , Sweden , Singapore , Slovenia , Slovakia , Sierra Leone , Senegal , Somalia , Suriname , El Salvador , Turks & Caicos Islands , Togo , Thailand , Tajikistan , Turkmenistan , Tunisia , Turkey , Trinidad & Tobago , Taiwan , Tanzania , Ukraine , Uganda , United States , Uruguay , Uzbekistan , St. Vincent & Grenadines , Venezuela , U.S. Virgin Islands , Vietnam , Yemen , Mayotte , South Africa , Zambia , Zimbabwe

Print Technical Specification

Physical

  • Maximum Height
    1.73inches ( 44MM , 4.4CM )
  • Maximum Width
    17.01inches ( 432MM , 43.2CM )
  • Maximum Depth
    2.32inches ( 59MM , 5.9CM )
  • Rack Height
    1U
  • Net Weight
    2.8lbs. ( 1.27KG )
  • Shipping weight
    5.4lbs. ( 2.45KG )
  • Shipping Height
    7.64inches ( 194MM , 19.4CM )
  • Shipping Width
    20.83inches ( 529MM , 52.9CM )
  • Shipping Depth
    35.59inches ( 904MM , 90.4CM )

Environmental

  • Operating Temperature
    32 - 113 °F ( 0 - 45 °C )
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0 - 10000ft ( 0 - 3048meters )
  • Storage Temperature
    -15 - 65 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0 - 50000ft ( 0 - 15240meters )

Sustainable Offer Status

  • RoHS
    Compliant
Manuals and Warranties
Title
Size
Updated On

Title

NetBotz Basement Mounting Kit Installation
PDF
PDF

Size

548KB

Updated On

2024-04-19

Title

NetBotz Handle Kit
PDF
PDF

Size

720KB

Updated On

2023-03-07

Rack access handles for use with the NetBotz Rack Monitor 250, 750, and 175 Rack Access Pod

Title

NetBotz Rack Monitor 250 Release Notes
PDF
PDF

Size

127KB

Updated On

2023-02-27

AOS v7.0.4, APP v7.0.6

Title

NetBotz Rack Monitor 250 Installation and Quick Configuration Manual
PDF
PDF

Size

3523KB

Updated On

2022-09-14

Includes physical description, inventory list, installation procedures, network configuration procedures, specifications, warranty details.

Title

NetBotz Rack Monitor 250 Modbus Register Map
PDF
PDF

Size

2111KB

Updated On

2022-08-22

Configuration; Customization

Title

Security Handbook Network Enabled Devices AOS v7.X User Guide
PDF
PDF

Size

1323KB

Updated On

2022-07-18

This guide documents security features for firmware version 7.x for APC Network Management Cards and for devices with embedded components of APC Network Management Cards, which enable the devices to function remotely over the network.
Brochure
Title
Size
Updated On

Title

NetBotz 250 Environmental Monitoring Appliance Product Brochure
PDF
PDF

Size

613KB

Updated On

2023-09-29

Product brochure detailing the NetBotz 250 benefits and options.
Agency Approvals
Title
Size
Updated On

Title

Confirmation Letter for Products Outside the scope of China Certificate
PDF
PDF

Size

694KB

Updated On

2024-02-21
