Galaxy VL Maintenance Bypass Cabinet with Backfeed, single unit, 200-500kW 400/415/480V

Share:

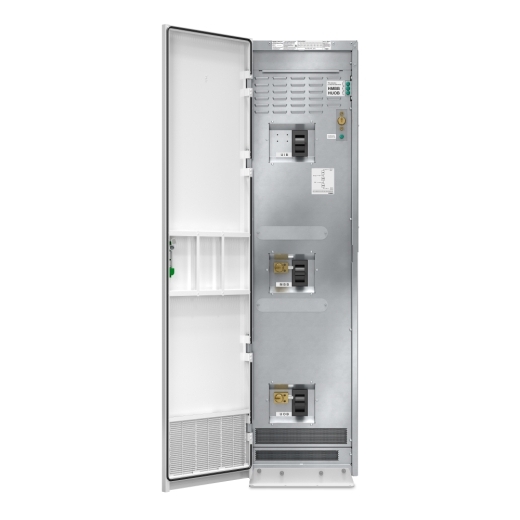

Galaxy VL Maintenance Bypass Cabinet with Backfeed, single unit, 200-500kW 400/415/480V

Galaxy VL Maintenance Bypass Cabinet with Backfeed, single unit, 200-500kW 400/415/480V

GVLMBCA200K500G

Galaxy VL Maintenance Bypass Cabinet with Backfeed, single unit, 200-500kW 400/415/480V

Maintenance bypass cabinet for complete isolation of the UPS during service operations.

Call for More Information
800-800-4272

Galaxy VL Features & Benefits

  • Multiple levels of service offers
    With the option of packages or individual service components, our services are structured to allow you to pick and choose what you would like Schneider Electric to do for you.
  • EcoStruxure IT Expert
    From your smartphone or computer, connect to our cloud-based, do-it-yourself monitoring system that collects, organizes, and distributes critical alerts and key information in real time, providing a unified view of even highly distributed physical infrastructure environments. Optimize your uptime and maintenance planning, and anticipate infrastructure issues before they occur with advanced analytics and performance benchmarking. Available in select countries. To learn more, visit a target="_blank" href="http://www.ecostruxureit.com"ecostruxureit.com/a.
  • Front-access servicing
    Simplifies installation and UPS maintenance while minimizing space requirements.
  • High efficiency in double conversion mode
    Consistently high power quality at high efficiency, even at low load levels. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.
  • Input power factor correction
    Minimizes installation costs by enabling the use of smaller generators and cabling.
  • Compact UPS
    High-density technology and full front access make this UPS a footprint saver well suited for confined spaces.
  • eConversion mode
    Operating mode that ensures ultra high efficiency while charging the batteries, conditioning the load power factor and ensuring a Class 1 output voltage regulation.
  • Parallel-redundant capability
    Powers the connected equipment with multiple uninterruptible power supplies and redundant fan design to increase system redundancy.
  • Robust operation
    No power derating in kW up to 40°C or 104°F.
  • Embedded Network Management Card
    Allows you to remotely manage alert thresholds and monitor your UPS over EcoStruxure IT, Web, SNMP, or Modbus TCP and Modbus RTU.
  • Flexible DC bus
    Optimizes battery sizing and supports a wide range of energy storage technologies, including VRLA, Li-ion, and NiCd batteries.
  • Modular UPS design
    Provides design redundancy and fast serviceability with improved mean time to repair, via self-diagnosing, field-replaceable modules.
  • Parallel-capacity capability
    Increases total power capacity by using multiple uninterruptible power supplies simultaneously.
  • Compatible with Schneider Electric's lithium ion battery solution
    Reduces system footprint and weight, cooling and maintenance requirements, and total cost of ownership; offers double the life of VRLA batteries; and improves backup storage predictability and manageability.
Product Distribution
Product Distribution

Antigua & Barbuda , Netherlands Antilles , Barbados , Bermuda , Bahamas , Belize , Dominican Republic , Ecuador , Guatemala , Honduras , Haiti , Jamaica , St. Kitts & Nevis , Nicaragua , Panama , Puerto Rico , El Salvador , Turks & Caicos Islands , Trinidad & Tobago , Venezuela , U.S. Virgin Islands

Print Technical Specification

Physical

  • Maximum Height
    77.56inches ( 1970MM , 197.0CM )
  • Maximum Width
    19.69inches ( 500MM , 50.0CM )
  • Maximum Depth
    33.35inches ( 847MM , 84.7CM )
  • Net Weight
    348.33lbs. ( 158.0KG )
  • Shipping weight
    573.2lbs. ( 260.0KG )
  • Shipping Height
    84.17inches ( 2138MM , 213.8CM )
  • Shipping Width
    38.98inches ( 990MM , 99.0CM )
  • Shipping Depth
    25.0inches ( 635MM , 63.5CM )
  • Color
    White

Environmental

  • Operating Temperature
    32 - 104 °F ( 0 - 40 °C )
  • Operating Relative Humidity
    0 - 95 (Non-condensing) %
  • Storage Temperature
    -25 - 55 °C
  • Storage Relative Humidity
    0 - 95 (Non-condensing) %
Manuals and Warranties
Title
Size
Updated On

Title

Galaxy VL Maintenance Bypass Cabinet for UL Installation
PDF
PDF

Size

12410KB

Updated On

2024-07-29

Installation manual containing information on how to install and connect the product
Brochure
Title
Size
Updated On

Title

Galaxy VL 200-500 kW (400/480V) Brochure
PDF
PDF

Size

7252KB

Updated On

2023-03-04

Features and benefits, ideal applications, and product specifications for the Galaxy VL 200-500 kW 3-phase UPS
Design/Configuration
Title
Size
Updated On

Title

Galaxy VL For UL Technical Specifications
PDF
PDF

Size

1597KB

Updated On

2024-08-18

Technical specifications document containing technical data, facility planning information, drawings, and options for the product.
Title
Size
Updated On
Galaxy VL MBC single unit 200-500 kW 400-480V Backfeed
GVLMBCA200K500G-Galaxy VL MBC single unit 200-500 kW 400-480V Backfeed
CAD Source File
12243KB
2023-10-04

GVLMBCA200K500G-Galaxy VL MBC single unit 200-500 kW 400-480V Backfeed
PDF
1160KB
2023-10-04

Galaxy VL Adjacent Maintenance Bypass Panel
GVLMBCA200K500X-Galaxy_VL_Maintanance_Bypass_Cabinet_Schneider_Electric_BIM_Model
CAD Source File
968KB
2023-10-04

Category

Sub-Category

Galaxy VL Seismic Kit for UPS, Maintenance Bypass Cabinet, and Bottom Cable Entry Cabinet
Galaxy VL Seismic Kit for UPS, Maintenance Bypass Cabinet, and Bottom Cable Entry Cabinet

Seismic kit that includes anchoring brackets and anchors.
