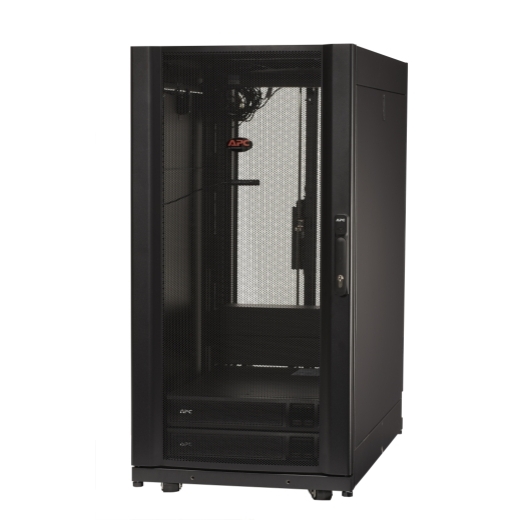

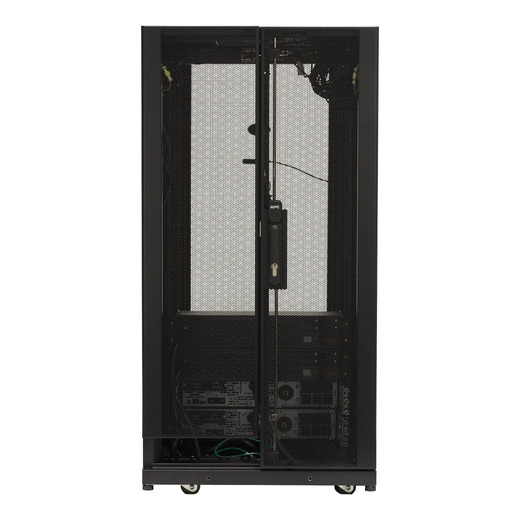

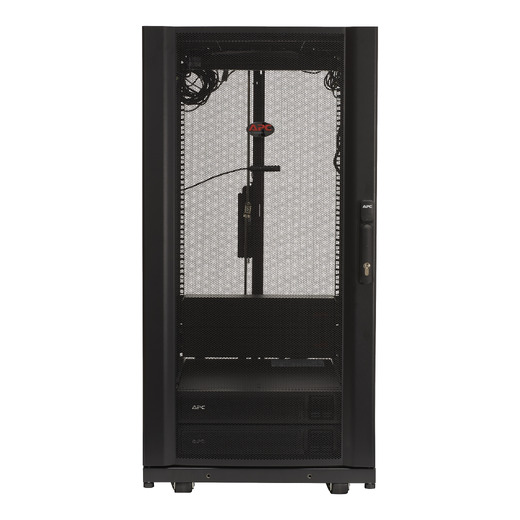

Ecostruxure Micro Data Center, with 24U SX rack, 3kVA, 120V, 60 Hz, pre assembled, 1199H x 600W x 1070D mm

Share:
Ecostruxure Micro Data Center, with 24U SX rack, 3kVA, 120V, 60 Hz, pre assembled, 1199H x 600W x 1070D mm Ecostruxure Micro Data Center, with 24U SX rack, 3kVA, 120V, 60 Hz, pre assembled, 1199H x 600W x 1070D mm Ecostruxure Micro Data Center, with 24U SX rack, 3kVA, 120V, 60 Hz, pre assembled, 1199H x 600W x 1070D mm
Ecostruxure Micro Data Center, with 24U SX rack, 3kVA, 120V, 60 Hz, pre assembled, 1199H x 600W x 1070D mm

Ecostruxure Micro Data Center, with 24U SX rack, 3kVA, 120V, 60 Hz, pre assembled, 1199H x 600W x 1070D mm

MDC24SX3KVAT

$9,955.00
Call for Availability
800-800-4272

EcoStruxure Micro Data Centers Features & Benefits

  • Pre-engineered and Factory Assembled
    Prefabricated Modules are designed and built to precise specifications in a controlled factory environment and utilize DCIM software which results in improved reliability and a more predictably performing data center.
  • Simple and Fast Deployment
    Prefabricated Data Center Modules arrive on site ready to deploy which significantly reduces installation time and cost.
  • Enclosure designed for harsh environments
    Prefabricated modules can support IT needs in applications such as mining, oil and gas, industrial factories, military operations, and regions with high heat and humidity.
Product Distribution
Product Distribution

Canada , Mexico , United States

Print Technical Specification

Physical

  • Maximum Height
    47.2inches ( 1199MM , 119.9CM )
  • Maximum Width
    23.62inches ( 600MM , 60.0CM )
  • Maximum Depth
    42.13inches ( 1070MM , 107.0CM )
  • Rack Height
    24U
  • Net Weight
    420.0lbs. ( 190.51KG )
  • Shipping weight
    570.0lbs. ( 258.55KG )
  • Shipping Height
    53.15inches ( 1350MM , 135.0CM )
  • Shipping Width
    47.99inches ( 1219MM , 121.9CM )
  • Shipping Depth
    35.39inches ( 899MM , 89.9CM )
  • Maximum Mounting Depth
    36.02inches ( 915.0MM , 91.49CM )
  • Minimum Mounting Depth
    7.52inches ( 191.0MM , 19.1CM )
  • Front Door
    16.0gauge
  • Vertical Posts
    16.0gauge
  • Rear Door
    18.0gauge
  • Roof
    18.0gauge
  • Side Panels
    18.0gauge
  • Weight Capacity (static load)
    3000.0lbs. ( 1360.78KG )
  • Weight Capacity (dynamic load)
    2249.99lbs. ( 1020.58KG )

Sustainable Offer Status

  • RoHS
    Compliant
Brochure
Title
Size
Updated On

Title

Micro Data Center Xpress
PDF
PDF

Size

197KB

Updated On

02/20/23

Edge computing brings bandwidth intensive content and latency-sensitive applications closer to the user or data source.

Title

Micro Data Center Xpress
PDF
PDF

Size

659KB

Updated On

06/29/22

Micro Data Center Xpress solutions from APC by Schneider Electric are Certified, Compatible, Secure, and Manageable. They simplify physical infrastructure deployment in Edge environments, making it fast, easy, and cost effective.

Title

EcoStruxure Micro Data Center S-Series Spec table
PDF
PDF

Size

240KB

Updated On

07/14/20

Made for server rooms or networks closets, our S-Series is highly customizable and easy to configure with hardware, software, and services, including validation of third party IT equipment with all the largest vendors.
Title
Size
Updated On
Micro Data Centers
MDC24SX3KVAT - Micro DC, 24U SX, 3kVA 120V
CAD Source File
4664KB
09/14/21

MDC24SX3KVAT - Micro DC, 24U SX, 3kVA 120V
PDF
940KB
09/14/21

Category

Sub-Category

Emergency Power Off (EPO)
Emergency Power Off (EPO)

Provides a single point of emergency equipment shutdown for up to eight APC InfraStruXure devices and one third-party device.

EPW9
$601.00
APC NetShelter Cable Management, Horizontal Cable Manager, 1U, Single Side with Cover, Black, 483 x 44 x 110 mm
APC NetShelter Cable Management, Horizontal Cable Manager, 1U, Single Side with Cover, Black, 483 x 44 x 110 mm

Horizontal cable management accessory to organize data cable layout within an enclosure or a rack.

AR8602A
$80.00
1U 19" Black Modular Toolless Airflow Management Blanking Panel - Qty 10
1U 19" Black Modular Toolless Airflow Management Blanking Panel - Qty 10

Modular toolless 1U Airflow Management Blanking Panel to prevent air recirculation by occupying unused rack space (Qty. 10).

AR8136BLK
$58.00
17" Rack LCD Console with Integrated 8 Port Analog KVM Switch
17" Rack LCD Console with Integrated 8 Port Analog KVM Switch

The Rack LCD Console with Integrated KVM Switch combines the functionality of Rack LCD Console and Analog KVM switches in one convenient package optimizing U space in the rack environment, eliminating cable clutter, and offering a value of two products functionality in one package. Keyboard is a US English keyboard layout.

AP5808
$1,890.00
