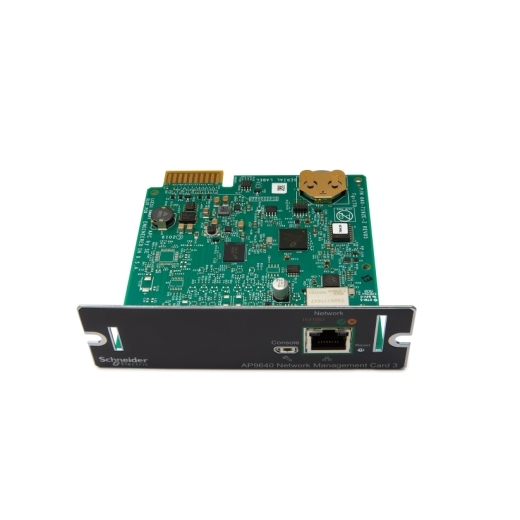

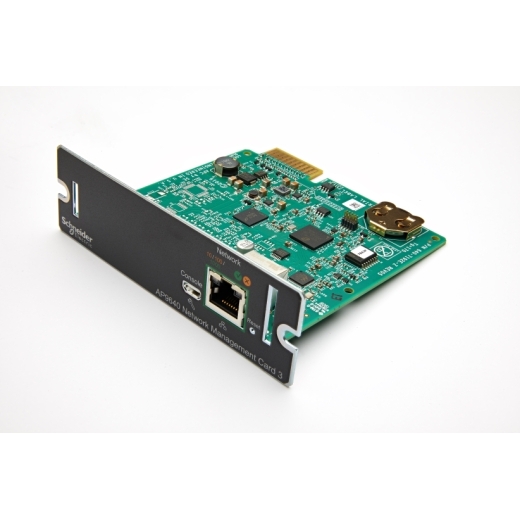

AP9640

Device monitoring and management, Network Management Cards, NMC3, secure remote UPS monitoring and management

null

Call for More Information
800-800-4272
Includes: Installation manual,Micro-USB cable

AP9640

Device monitoring and management, Network Management Cards, NMC3, secure remote UPS monitoring and management

  • BACnet/IP Support for Smart-UPS
    Supports reporting UPS information to Building Management Systems or other third party management systems via BACnet/IP (BTL certified) (Single Phase Smart-UPS only)
  • Command line interface
    Offers simultaneous remote management access through Telnet and SSH
  • Compatible with Smart-UPS
    Compatible with Smart-UPS. For complete list of supported Smart-UPS, please refer to FAQ ID br /a href="https://www.apc.com/us/en/faqs/index?page=content&id=FA237786"FA237786./a
  • Device Encryption
    Securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3
  • Gigabit Ethernet Support
    Supports faster Communication at 1 Gbps (Gigabit per second) over Network.
  • IPv6 Support
    Capable of operating on a network using IPv6 protocol
  • Micro-USB based Console Support
    For faster and easier Troubleshooting and Configuration.
  • Modbus TCP Support
    Supports reporting UPS information to Building Management Systems or other third party management systems via Modbus TCP.
  • Multiple language support
    Web browser interface available in English, French, Russian, Chinese, Japanese, Korean, German, Italian, Spanish, Portuguese
  • Multiple user access
    Supports simultaneous web browser access for up to 8 users and network command line interface access for up to 3 users
  • Root of Trust Support
    Supports Secure Boot with Root of Trust for enhanced Security.
  • Smart Battery Management Support
    Detailed battery information including battery cartridge parameters provides early-warning fault analysis to simplify management of the entire battery system (SRT Smart-UPS only).
  • Standard UPS RFC 1628 MIB Compatible
    Make UPS information available to your preferred network, server or enterprise management system by forwarding SNMP traps (events) using RFC 1628 MIB.
  • UPS Firmware Update
    User friendly mechanism to remotely and seamlessly update UPS firmware via the web browser interface (SMX, SMT and SRT Smart-UPS only).

UPS Network Management Cards Features & Benefits

  • Remote device management
    Enable management of your UPS by connecting it directly to the network.
  • Fault notification
    Real-time event notification minimizes response times to critical physical infrastructure situations. Enables IT Administrators to reduce mean time to repair, improve efficiency, and maximize uptime.
  • Enterprise management system compatible
    Make device information available to your preferred enterprise management system by forwarding SNMP traps (events) across SNMPv1 and SNMPv3 using the PowerNet MIB
  • Data logging
    Identify problematic trends before they escalate or export the data log for analysis.
  • Integrates with StruxureWare Data Center Expert
    An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
  • Event logging
    Pinpoint the timing and sequence of events leading up to an incident with the event log.
  • Scheduled shutdown and reboot
    Customize shut down and reboot of connected equipment and UPSs.
  • Notification
    Be notified of problems to ensure crucial situations are dealt with in a timely manner.
  • Browser Accessible
    View the user interface with a browser. Provides quick access from anywhere on a secure network.
  • Flash upgradeable firmware
    Install maintenance releases of firmware remotely using FTP.
  • Radius support
    Use an existing radius server to securely authenticate, authorize, and account for your APC device.
  • Multi-tier user access
    Supports up to four access levels - Administrator, Device User, Read-Only User and Network-only User - with user name and password requirements.
  • Password security
    User-selectable password with strong password rules and reset password mechanism.
  • Network Shutdown
    Reliable network-based shutdown of multiple servers
  • Reboot equipment remotely
    Saves dispatching technicians to remote locations.
Product Distribution
Product Distribution

United Arab Emirates , Afghanistan , Antigua & Barbuda , Anguilla , Albania , Armenia , Netherlands Antilles , Angola , Argentina , Austria , Australia , Azerbaijan , Bosnia & Herzegovina , Barbados , Belgium , Burkina Faso , Bulgaria , Bahrain , Burundi , Benin , Bermuda , Bolivia , Brazil , Bahamas , Botswana , Belarus , Belize , Canada , Congo - Kinshasa , Switzerland , Côte d’Ivoire , Chile , Cameroon , China , Colombia , Costa Rica , Serbia and Montenegro , Cyprus , Czechia , Germany , Djibouti , Denmark , Dominica , Dominican Republic , Algeria , Ecuador , Estonia , Egypt , Eritrea , Spain , Ethiopia , Finland , Fiji , France , Gabon , United Kingdom , Grenada , Georgia , French Guiana , Ghana , Gambia , Guadeloupe , Greece , Guatemala , Guyana , Hong Kong SAR China , Honduras , Croatia , Haiti , Hungary , Indonesia , Ireland , Israel , India , Iraq , Iceland , Italy , Jamaica , Jordan , Kenya , Cambodia , St. Kitts & Nevis , South Korea , Kuwait , Cayman Islands , Kazakhstan , Lebanon , St. Lucia , Liberia , Lithuania , Luxembourg , Latvia , Morocco , Madagascar , North Macedonia , Mali , Myanmar (Burma) , Mongolia , Martinique , Mauritania , Malta , Mauritius , Malawi , Mexico , Malaysia , Mozambique , Namibia , Nigeria , Nicaragua , Netherlands , Norway , New Zealand , Oman , Panama , Peru , Philippines , Pakistan , Poland , Puerto Rico , Portugal , Paraguay , Qatar , Réunion , Romania , Rwanda , Saudi Arabia , Sweden , Singapore , Slovenia , Slovakia , Sierra Leone , Senegal , Somalia , Suriname , El Salvador , Turks & Caicos Islands , Togo , Thailand , Tajikistan , Turkmenistan , Tunisia , Turkey , Trinidad & Tobago , Taiwan , Tanzania , Ukraine , Uganda , United States , Uruguay , Uzbekistan , St. Vincent & Grenadines , Venezuela , U.S. Virgin Islands , Vietnam , Yemen , Mayotte , South Africa , Zambia , Zimbabwe

Print Technical Specification

Communications & Management

  • Authentication
    Lightweight Directory Access Protocol (LDAP), Radius

Physical

  • Maximum Height
    1.5inches ( 38MM , 3.8CM )
  • Maximum Width
    4.76inches ( 121MM , 12.1CM )
  • Maximum Depth
    4.49inches ( 114MM , 11.4CM )
  • Net Weight
    0.18lbs. ( 0.08KG )
  • Shipping weight
    0.75lbs. ( 0.34KG )
  • Shipping Height
    2.01inches ( 51MM , 5.1CM )
  • Shipping Width
    6.26inches ( 159MM , 15.9CM )
  • Shipping Depth
    9.25inches ( 235MM , 23.5CM )

Environmental

  • Operating Temperature
    23 - 113 °F ( -5 - 45 °C )
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0 - 10000ft ( 0 - 3048meters )
  • Storage Temperature
    -15 - 65 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0 - 50000ft ( 0 - 15240meters )

Conformance

  • Approvals
    AS/NZS, AS/NZS 3548 (C-Tick) class A, BS EN 55032, FCC Class A, FCC part 15 class A, GOST, UK PSTI
  • Standard warranty
    2 years repair or replace

Sustainable Offer Status

  • RoHS
    Compliant
