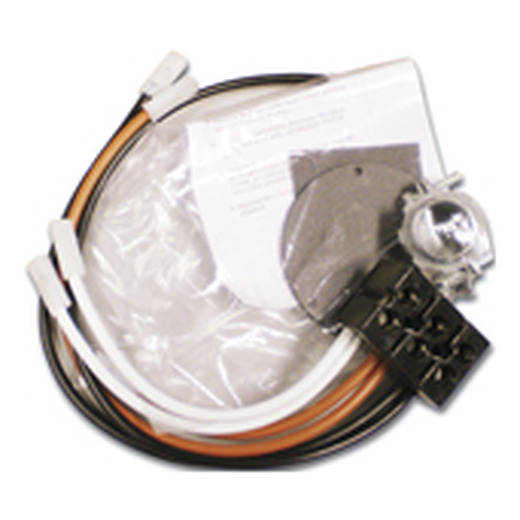

APC Universal Transfer Switch Hardwire Kit

Share:
APC Universal Transfer Switch Hardwire Kit APC Universal Transfer Switch Hardwire Kit APC Universal Transfer Switch Hardwire Kit
APC Universal Transfer Switch Hardwire Kit

APC Universal Transfer Switch Hardwire Kit

UTSHW

APC Universal Transfer Switch Hardwire Kit
Discontinued
Call Sales Support
800-800-4272

UTSHW

APC Universal Transfer Switch Hardwire Kit

  • Multiple mounting methods
    Allows for standardization on one product for use in different environments.
  • TUV certified
    Meets UL 1008 Transfer Switch Standard.

Wall (Mounted) Transfer Switches Features & Benefits

  • Generator compatible
    Ensures clean, uninterrupted power to protected equipment when generator power is used.
  • Convenience outlet
    Powers and charges a UPS or other 120V input power source.
  • UPS compatible
    Uniquely designed to accept input power from any single phase, 120V power source such as a UPS, solar panel or other alternative energy power inputs.
  • Hardwire capable
    For installations where hard wiring is required or preferred
  • Easy to install
    Innovative design allows for fast, easy installation by almost anybody.
  • Real-time load status
    Circuit loads are provided numerically on LCD display, eliminating the need for wattmeters and enabling load balancing and generator sizing.
  • Multiple mounting methods
    Allows for standardization on one product for use in different environments.
  • LED status indicators
    Quickly understand unit and power status with visual indicators.
  • LCD display
    Alpha-Numeric Display which displays system parameters and alarms.
  • Installation wizard
    Guides you through the initial set-up and configuration of input power sources and circuits.
  • Adaptive Load Management (ALM)
    Patent-pending technology that intelligently monitors power usage and maximizes generator operating efficiency.
Product Distribution
Product Distribution

Canada , United States

Print Technical Specification

Output

  • Nominal Output Voltage
    120V

Input

  • Nominal Input Voltage
    120V
  • Input frequency
    47 - 63 Hz

Physical

  • Maximum Height
    2.01inches ( 51MM , 5.1CM )
  • Maximum Width
    5.24inches ( 133MM , 13.3CM )
  • Maximum Depth
    4.49inches ( 114MM , 11.4CM )
  • Net Weight
    0.66lbs. ( 0.3KG )
  • Shipping weight
    0.81lbs. ( 0.37KG )
  • Shipping Height
    2.52inches ( 64MM , 6.4CM )
  • Shipping Width
    5.75inches ( 146MM , 14.6CM )
  • Shipping Depth
    5.0inches ( 127MM , 12.7CM )

Environmental

  • Operating Temperature
    23 - 113 °F ( -5 - 45 °C )
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0 - 10000ft ( 0 - 3048meters )
  • Storage Temperature
    -5 - 45 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0 - 10000ft ( 0 - 3048meters )

Conformance

  • Standard warranty
    2 years repair or replace
Manuals and Warranties
Title
Size
Updated On

Title

Universal Transfer Switch 6/6H/6BI/10BI Hardwire Kit
PDF
PDF

Size

239KB

Updated On

2023-01-24

UTS Hardwire Kit Installation Guide - English
