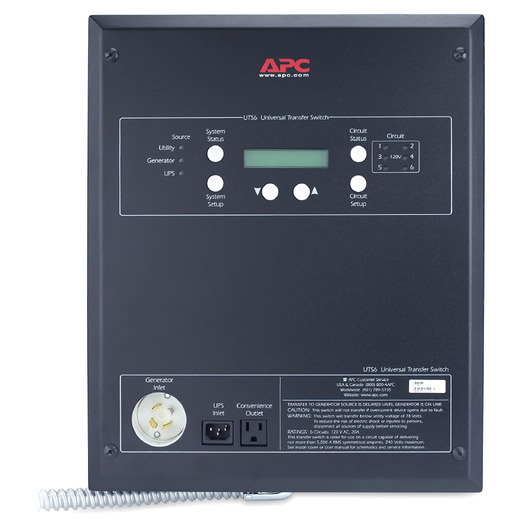

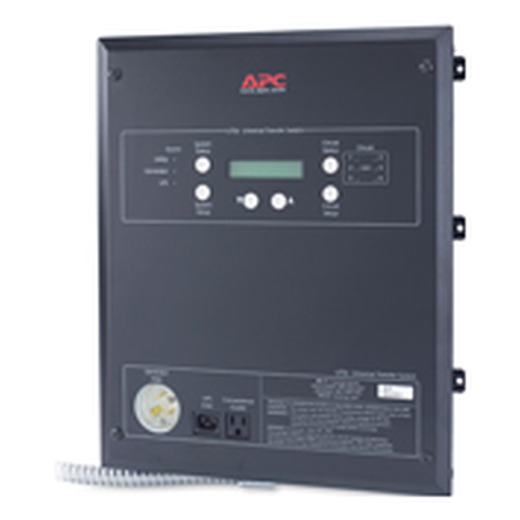

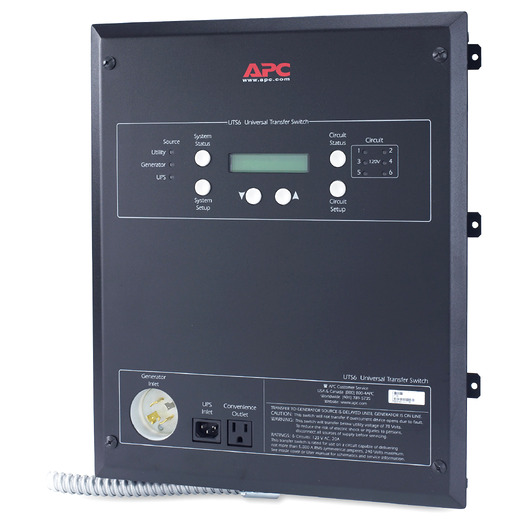

APC Universal Transfer Switch 6-Circuit 120V

Share:
APC Universal Transfer Switch 6-Circuit 120V APC Universal Transfer Switch 6-Circuit 120V APC Universal Transfer Switch 6-Circuit 120V APC Universal Transfer Switch 6-Circuit 120V
APC Universal Transfer Switch 6-Circuit 120V

APC Universal Transfer Switch 6-Circuit 120V

UTS6

APC Universal Transfer Switch 6-Circuit 120V
Discontinued
Call Sales Support
800-800-4272

UTS6

APC Universal Transfer Switch 6-Circuit 120V

  • Dual Input Power Sources
    Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternative power source.
  • LCD display
    Manage the UPS locally through a text-based display that allows quick diagnosis via stored alarm conditions and events.
  • Manual maintenance bypass
    Reduces installation costs by eliminating the need for an external mechanical bypass.
  • Multiple mounting methods
    Allows for standardization on one product for use in different environments.
  • TUV certified
    Meets UL 1008 Transfer Switch Standard.

Wall (Mounted) Transfer Switches Features & Benefits

  • Generator compatible
    Ensures clean, uninterrupted power to protected equipment when generator power is used.
  • Convenience outlet
    Powers and charges a UPS or other 120V input power source.
  • UPS compatible
    Uniquely designed to accept input power from any single phase, 120V power source such as a UPS, solar panel or other alternative energy power inputs.
  • Hardwire capable
    For installations where hard wiring is required or preferred
  • Easy to install
    Innovative design allows for fast, easy installation by almost anybody.
  • Real-time load status
    Circuit loads are provided numerically on LCD display, eliminating the need for wattmeters and enabling load balancing and generator sizing.
  • Multiple mounting methods
    Allows for standardization on one product for use in different environments.
  • LED status indicators
    Quickly understand unit and power status with visual indicators.
  • LCD display
    Alpha-Numeric Display which displays system parameters and alarms.
  • Installation wizard
    Guides you through the initial set-up and configuration of input power sources and circuits.
  • Adaptive Load Management (ALM)
    Patent-pending technology that intelligently monitors power usage and maximizes generator operating efficiency.
Product Distribution
Product Distribution

Canada , United States

Print Technical Specification

Output

  • Nominal Output Voltage
    120V
  • Other Output Voltages
    240

Input

  • Nominal Input Voltage
    120V
  • Input frequency
    47 - 63 Hz
  • Input Connections
    IEC 60320 C14, NEMA 5-15P, NEMA L14-20P
  • Number of Power Cords
    1
  • Maximum Line Current
    20A

Physical

  • Maximum Height
    19.61inches ( 498MM , 49.8CM )
  • Maximum Width
    15.51inches ( 394MM , 39.4CM )
  • Maximum Depth
    3.31inches ( 84MM , 8.4CM )
  • Net Weight
    21.54lbs. ( 9.77KG )
  • Shipping weight
    24.0lbs. ( 10.89KG )
  • Shipping Height
    20.98inches ( 533MM , 53.3CM )
  • Shipping Width
    17.52inches ( 445MM , 44.5CM )
  • Shipping Depth
    5.98inches ( 152MM , 15.2CM )
  • Color
    Black

Environmental

  • Operating Temperature
    -13 - 104 °F ( -25 - 40 °C )
  • Operating Relative Humidity
    5 - 95 %
  • Operating Elevation
    0 - 10000ft ( 0 - 3048meters )
  • Storage Temperature
    -40 - 85 °C
  • Storage Elevation
    0 - 10000ft ( 0 - 3048meters )

Conformance

  • Approvals
    cTUVus
  • Standard warranty
    2 years repair or replace
Manuals and Warranties
Title
Size
Updated On

Title

Universal Transfer Switch 6/6H/6BI/10BI Hardwire Kit
PDF
PDF

Size

239KB

Updated On

2023-01-24

UTS Hardwire Kit Installation Guide - English

Title

Installation Guide UTS6/UTS6H/UTS6BI/UTS10BI
PDF
PDF

Size

518KB

Updated On

2022-08-08

Site Preparation and Installation Guide for Universal Transfer Switch UTS6/UTS6H/UTS6BI/UTS10BI

Title

Universal Transfer Switch Quick Install Guide UTS6/UTS6H/UTS6BI/UTS10BI
PDF
PDF

Size

127KB

Updated On

2022-07-27

Basic Installation Instructions

Title

Operation Guide UTS6/UTS6H/UTS6BI/UTS10BI
PDF
PDF

Size

887KB

Updated On

2022-07-27
