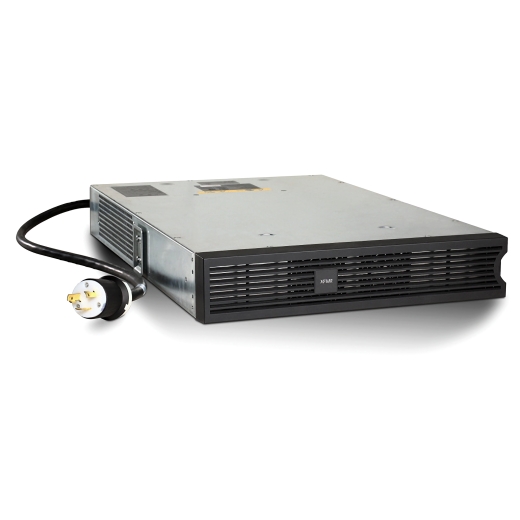

APC Step-Down Transformer RM 2U 208V IN 120V OUT; w/5-20 Receptacles

APC Step-Down Transformer RM 2U 208V IN 120V OUT; w/5-20 Receptacles

AP9626

AP9626

APC Step-Down Transformer RM 2U 208V IN 120V OUT; w/5-20 Receptacles

  • Transformer for Step-down or Step-up or Isolation
    Step down transformer placed upstream of the UPS to avoid inrush current and saturation eliminating need to oversize transformer

Step-Down Transformer Features & Benefits

Product Distribution
Product Distribution

Antigua & Barbuda , Anguilla , Netherlands Antilles , Argentina , Barbados , Belgium , Bermuda , Bolivia , Brazil , Belize , Canada , Switzerland , Chile , Colombia , Costa Rica , Germany , Dominican Republic , Ecuador , Spain , Greece , Guatemala , Guyana , Honduras , Croatia , Italy , Jamaica , South Korea , Morocco , Mexico , Nicaragua , Netherlands , Panama , Peru , Puerto Rico , Paraguay , Saudi Arabia , Slovenia , El Salvador , Trinidad & Tobago , Taiwan , United States , Uruguay , Venezuela , U.S. Virgin Islands

Print Technical Specification

Output

  • Nominal Output Voltage
    120V
  • Efficiency at Full Load
    90 % %
  • Always on Outlets
    12
  • Maximum Total Current Draw
    24

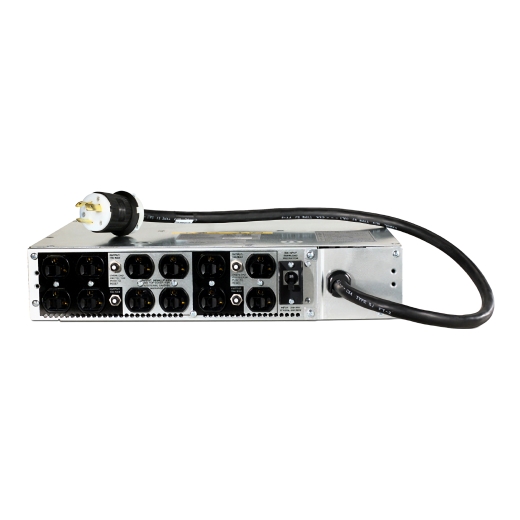

  • Output Connections
    (12) NEMA 5-20R (Battery Backup)

Input

  • Nominal Input Voltage
    208V
  • Input Connections
    NEMA L6-30P
  • Acceptable Input Voltage
    208VAC
  • Number of Power Cords
    1
  • Efficiency at Full Load
    90 % %
  • Load Capacity
    5000VA
  • Maximum Input Current
    30A
  • Maximum Line Current
    24A

Physical

  • Maximum Height
    3.5inches ( 89MM , 8.9CM )
  • Maximum Width
    17.52inches ( 445MM , 44.5CM )
  • Maximum Depth
    24.02inches ( 610MM , 61.0CM )
  • Rack Height
    2U
  • Net Weight
    95.2lbs. ( 43.18KG )
  • Shipping weight
    110.23lbs. ( 50.0KG )
  • Shipping Height
    10.0inches ( 254MM , 25.4CM )
  • Shipping Width
    37.52inches ( 953MM , 95.3CM )
  • Shipping Depth
    24.49inches ( 622MM , 62.2CM )
  • Color
    Black

Environmental

  • Operating Temperature
    32 - 104 °F ( 0 - 40 °C )
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0 - 10000ft ( 0 - 3048meters )
  • Storage Temperature
    -15 - 45 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0 - 50000ft ( 0 - 15240meters )

Conformance

  • Approvals
    CSA, OSHPD, UL 1778
  • Standard warranty
    2 years repair or replace
