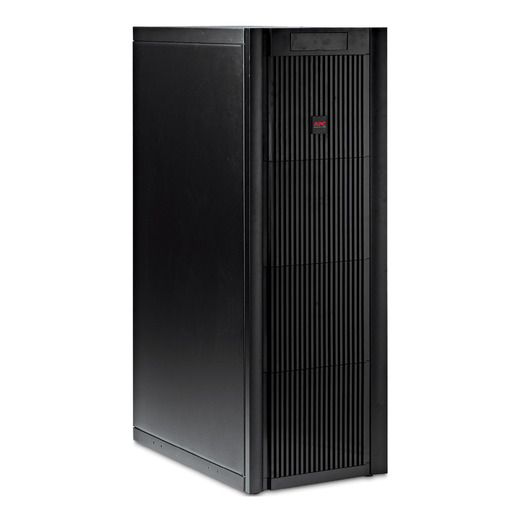

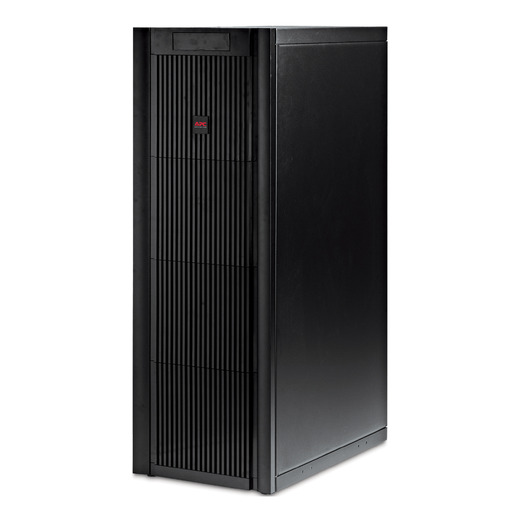

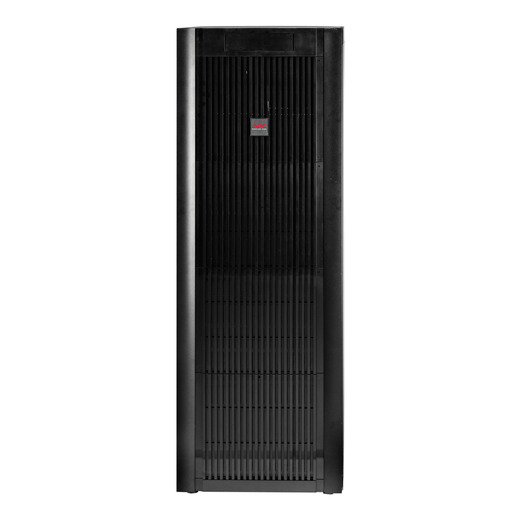

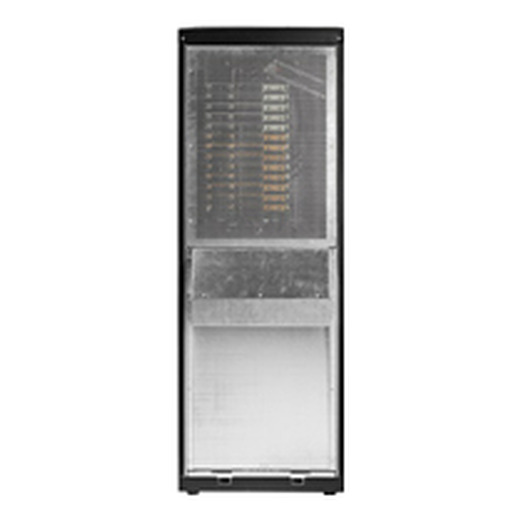

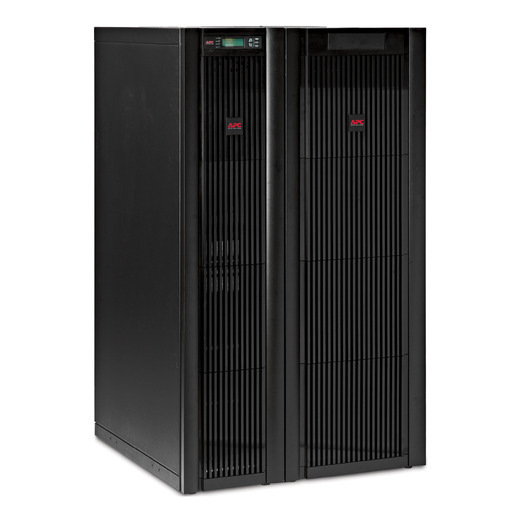

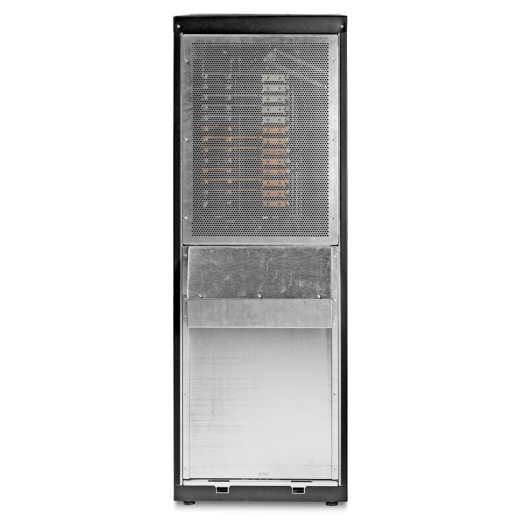

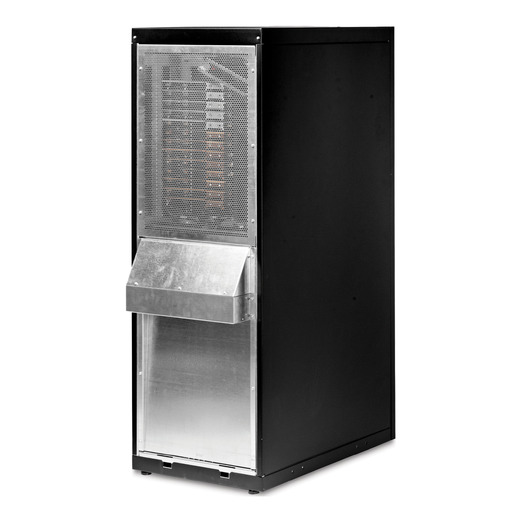

APC Smart-UPS VT Extended Run Enclosure, 192V, VRLA, with 6 battery modules, Start-up 5x8

APC Smart-UPS VT Extended Run Enclosure, 192V, VRLA, with 6 battery modules, Start-up 5x8

SUVTXR6B6S

APC Smart-UPS VT Extended Run Enclosure, 192V, VRLA, with 6 battery modules, Start-up 5x8
Discontinued

Smart-UPS Battery Systems Features & Benefits

  • Advanced battery management included
    Embedded monitoring at the cell, module, and cabinet level provides a clear picture of battery runtime and health, with the added benefits of predictable, consistent runtime performance, and stable cell health.
  • Multiple battery pack configuration
    Connect up to 10 battery packs for extended runtime applications.
Product Distribution
Product Distribution

United Arab Emirates , Afghanistan , Antigua & Barbuda , Anguilla , Albania , Armenia , Netherlands Antilles , Angola , Australia , Azerbaijan , Bosnia & Herzegovina , Barbados , Belgium , Burkina Faso , Bahrain , Burundi , Benin , Bermuda , Bolivia , Brazil , Botswana , Belarus , Belize , Canada , Congo - Kinshasa , Côte d’Ivoire , Chile , Cameroon , China , Colombia , Costa Rica , Cyprus , Czechia , Djibouti , Denmark , Dominican Republic , Algeria , Ecuador , Egypt , Eritrea , Spain , Ethiopia , Fiji , France , Gabon , Georgia , Ghana , Gambia , Greece , Guatemala , Guyana , Hong Kong SAR China , Honduras , Croatia , Hungary , Indonesia , Ireland , Israel , India , Iraq , Iceland , Italy , Jamaica , Jordan , Kenya , Cambodia , South Korea , Kuwait , Cayman Islands , Kazakhstan , Lebanon , Liberia , Luxembourg , Morocco , Mali , Myanmar (Burma) , Mongolia , Mauritania , Malta , Malawi , Mexico , Malaysia , Mozambique , Namibia , Nigeria , Nicaragua , Norway , New Zealand , Oman , Panama , Peru , Philippines , Pakistan , Puerto Rico , Portugal , Paraguay , Romania , Rwanda , Saudi Arabia , Singapore , Slovenia , Slovakia , Sierra Leone , Senegal , Somalia , Suriname , El Salvador , Togo , Thailand , Tajikistan , Turkmenistan , Tunisia , Turkey , Trinidad & Tobago , Taiwan , Tanzania , Ukraine , Uganda , United States , Uruguay , Uzbekistan , Venezuela , U.S. Virgin Islands , Vietnam , Yemen , South Africa , Zambia , Zimbabwe

Print Technical Specification

Output

  • Battery Output Voltage
    192 V

Input

  • Nominal Input Voltage
    208V 3PH

Batteries & Runtime

  • Battery type
    VRLA
  • Included Battery Modules
    6
  • Battery mounting
    Enclosed battery cabinet
  • Battery Placement
    External frame
  • Expected Battery Life (years)
    3 - 5
  • Battery blocks per string
    32

Physical

  • Maximum Height
    59.02inches ( 1499MM , 149.9CM )
  • Maximum Width
    20.59inches ( 523MM , 52.3CM )
  • Maximum Depth
    32.99inches ( 838MM , 83.8CM )
  • Net Weight
    1690.55lbs. ( 766.82KG )
  • Shipping weight
    1758.71lbs. ( 797.74KG )
  • Shipping Height
    64.69inches ( 1643MM , 164.3CM )
  • Shipping Width
    41.81inches ( 1062MM , 106.2CM )
  • Shipping Depth
    25.59inches ( 650MM , 65.0CM )
  • Color
    Black

Environmental

  • Operating Temperature
    32 - 104 °F ( 0 - 40 °C )
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0 - 3333ft ( 0 - 1015.9meters )
  • Storage Temperature
    -50 - 40 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0 - 50000ft ( 0 - 15240meters )

Conformance

  • Approvals
    C-Tick, CE, ISO 14001, ISO 9001, RCM
  • Standard warranty
    1 year repair or replace

Sustainable Offer Status

  • PEP
    Available in Documentation tab
  • EOLI
    Available in Documentation tab
