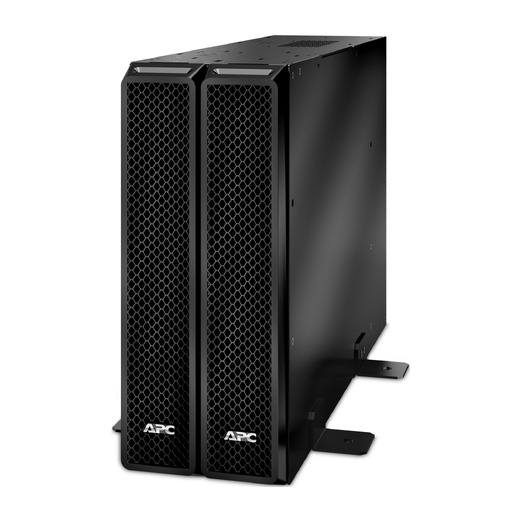

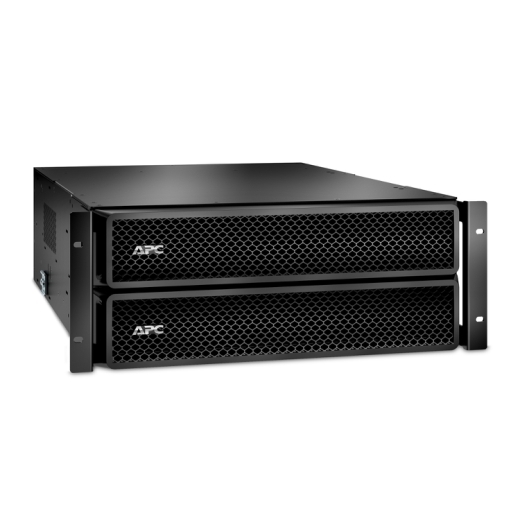

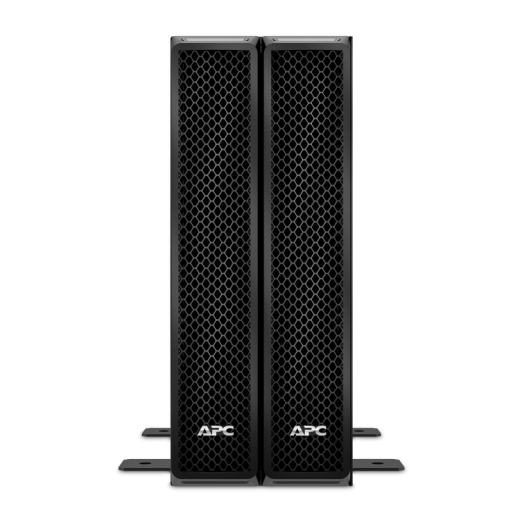

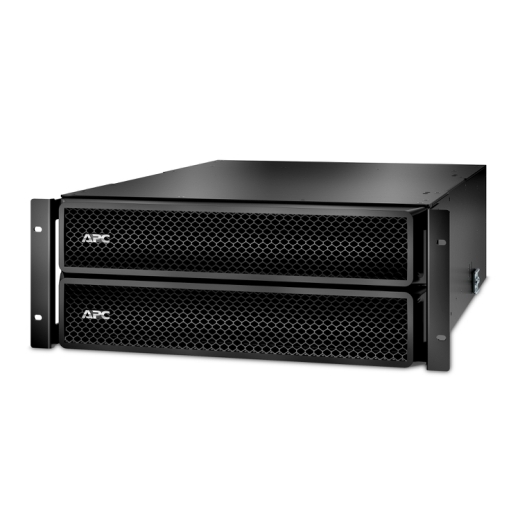

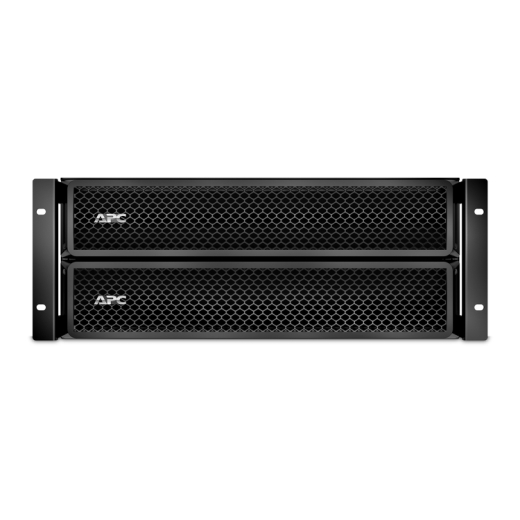

APC Smart-UPS SRT Step-Down Transformer, 10kVA, rackmount, 4U, 2x NEMA L5-20R & 2x NEMA L14-30R outlets

Share:
APC Smart-UPS SRT Step-Down Transformer, 10kVA, rackmount, 4U, 2x NEMA L5-20R & 2x NEMA L14-30R outlets

APC Smart-UPS SRT Step-Down Transformer, 10kVA, rackmount, 4U, 2x NEMA L5-20R & 2x NEMA L14-30R outlets

SRT10KRMTF

APC Smart-UPS SRT Step-Down Transformer, 10kVA, rackmount, 4U, 2x NEMA L5-20R & 2x NEMA L14-30R outlets

null

Call for More Information
800-800-4272
Includes: Mounting hardware,Rack mounting brackets,Safety guide,User manual,Warranty card

SRT10KRMTF

APC Smart-UPS SRT Step-Down Transformer, 10kVA, rackmount, 4U, 2x NEMA L5-20R & 2x NEMA L14-30R outlets

  • Rack-Mountable
    Occupys only 1U of valuable rack space. Puts the power where it is needed most - in the rack near the equipment.
  • Transformer for Step-down or Step-up or Isolation
    Step down transformer placed upstream of the UPS to avoid inrush current and saturation eliminating need to oversize transformer

Smart-UPS Accessories Features & Benefits

Product Distribution
Product Distribution

Antigua & Barbuda , Anguilla , Netherlands Antilles , Barbados , Bermuda , Bolivia , Bahamas , Belize , Dominica , Dominican Republic , Ecuador , Grenada , Guatemala , Guyana , Honduras , Haiti , Jamaica , St. Kitts & Nevis , Cayman Islands , St. Lucia , Nicaragua , Panama , Puerto Rico , Paraguay , El Salvador , Trinidad & Tobago , Uruguay , St. Vincent & Grenadines , Venezuela , U.S. Virgin Islands

Print Technical Specification

Output

  • Nominal Output Voltage
    120V , 208V , 240V
  • Always on Outlets
    4
  • Maximum Total Current Draw
    60

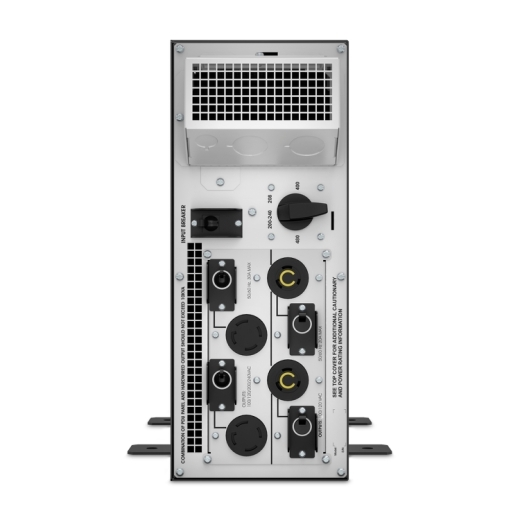

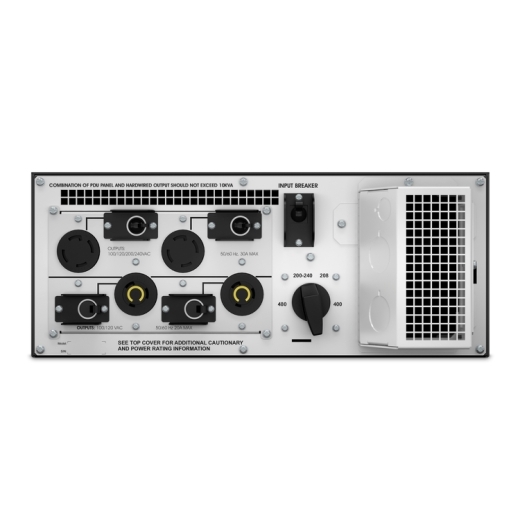

  • Output Connections
    (2) NEMA L14-30R (Battery Backup)
    (2) NEMA L5-20R (Battery Backup)
    (1) Hard wire 4-wire (2P + N + E) (Battery Backup)

Input

  • Nominal Input Voltage
    208V
  • Input frequency
    45 - 65 Hz
  • Input Connections
    Hard wire 3-wire (2P + E)
  • Acceptable Input Voltage
    200 - 240VAC
  • Load Capacity
    10000VA
  • Maximum Input Current
    60A
  • Maximum Line Current
    60A

Physical

  • Maximum Height
    6.85inches ( 174MM , 17.4CM )
  • Maximum Width
    17.01inches ( 432MM , 43.2CM )
  • Maximum Depth
    29.49inches ( 749MM , 74.9CM )
  • Net Weight
    220.0lbs. ( 99.79KG )
  • Shipping weight
    275.0lbs. ( 124.74KG )
  • Shipping Height
    15.98inches ( 406MM , 40.6CM )
  • Shipping Width
    39.37inches ( 1000MM , 100.0CM )
  • Shipping Depth
    23.62inches ( 600MM , 60.0CM )
  • Color
    Black

Environmental

  • Operating Temperature
    32 - 104 °F ( 0 - 40 °C )
  • Operating Relative Humidity
    0 - 95 (Non-condensing) %
  • Operating Elevation
    0 - 10000ft ( 0 - 3048meters )
  • Storage Temperature
    -15 - 45 °C
  • Storage Relative Humidity
    0 - 95 (Non-condensing) %
  • Storage Elevation
    0 - 50000ft ( 0 - 15240meters )

Conformance

  • Approvals
    CE, CSA, UL listed
  • Standard warranty
    2 years repair or replace
Manuals and Warranties
Title
Size
Updated On

Title

Safety Guide Smart-UPS RT/Hardwire/over 1.5 kVA
PDF
PDF

Size

47KB

Updated On

2023-06-29

Safety Guide for Smart-UPS RT/Hardwire/over 1.5 kVA

Title

Smart-UPS On-Line Isolation and Step-Down Transformer SRT10KRMTF
PDF
PDF

Size

647KB

Updated On

2022-08-10

Manual for Smart-UPS On-Line Isolation and Step-Down Transformer SRT10KRMTF
Environmental Profile
Title
Size
Updated On

Title

End of Life instructions for Smart UPS Less than 1500_EN
PDF
PDF

Size

704KB

Updated On

2024-08-01

Title
Size
Updated On
Smart-UPS On-Line, Step-Down Transformers, Single-Line Diagrams, 10kVA
SRT10KRMTF-SD - APC Smart-UPS SRT 10kVA 4U RM Step-Down Transformer
CAD Source File
147KB
2023-10-04

SRT10KRMTF-SD - APC Smart-UPS SRT 10kVA 4U RM Step-Down Transformer
PDF
158KB
2023-10-04

Smart-UPS On-Line, Step-Down Transformers, Packages, 10kVA
SRT10KRMTF - APC Smart-UPS SRT 10kVA 4U RM Step-Down Transformer Rackmount
CAD Source File
3689KB
2023-10-04

SRT10KRMTF - APC Smart-UPS SRT 10kVA 4U RM Step-Down Transformer Rackmount
PDF
792KB
2023-10-04

Smart-UPS On-Line,Package with Step-Down Transformer, 10kVA
SRT10KRMXLT-10KTF - APC Smart-UPS SRT 10000VA Rackmount 208V with Transformer
CAD Source File
11417KB
2023-10-04

SRT10KRMXLT-10KTF - APC Smart-UPS SRT 10000VA Rackmount 208V with Transformer
PDF
1435KB
2023-10-04
