APC ProtectNet standalone surge protector for 10/100/1000 Base-T Ethernet lines

Share:
APC ProtectNet standalone surge protector for 10/100/1000 Base-T Ethernet lines APC ProtectNet standalone surge protector for 10/100/1000 Base-T Ethernet lines APC ProtectNet standalone surge protector for 10/100/1000 Base-T Ethernet lines APC ProtectNet standalone surge protector for 10/100/1000 Base-T Ethernet lines

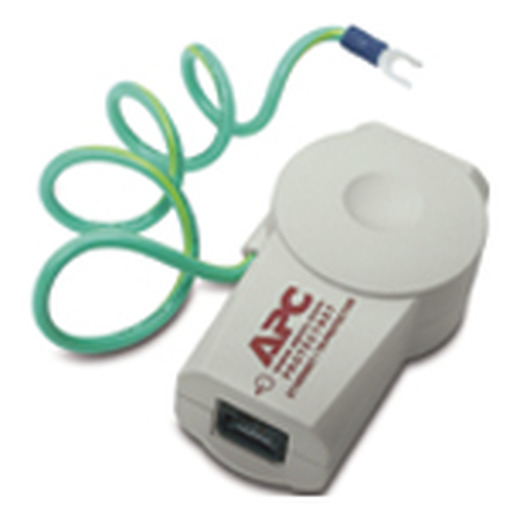

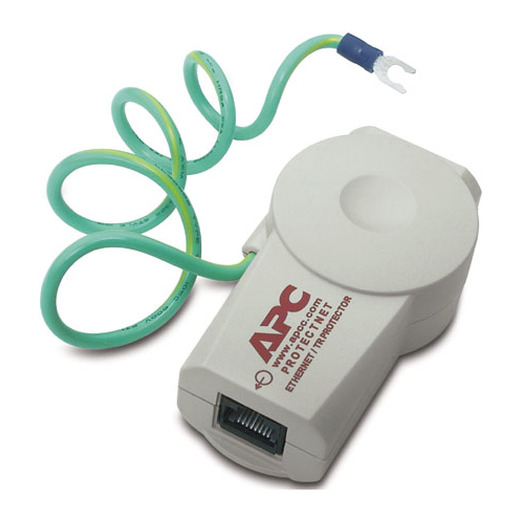

APC ProtectNet standalone surge protector for 10/100/1000 Base-T Ethernet lines

APC ProtectNet standalone surge protector for 10/100/1000 Base-T Ethernet lines

PNET1GB

APC ProtectNet standalone surge protector for 10/100/1000 Base-T Ethernet lines
Discontinued
Call Sales Support
800-800-4272

PNET1GB

APC ProtectNet standalone surge protector for 10/100/1000 Base-T Ethernet lines

  • Catastrophic Event Protection
    SurgeArrest components such as MOVs and Thermal fuse ensure instantaneous reaction to lightning strikes and wiring faults. If the surge components are damaged due to power spike or over voltage, excess power cannot reach your equipment. Unlike the APC SurgeArrest products, most surge suppressors continue to let power through even after circuits have been damaged, leaving your equipment exposed to other damaging surges.

ProtectNet Features & Benefits

  • Lightning and Surge Protection
    To prevent damage to your equipment from electric power surges and spikes.
  • Fail Safe Mode
    Most other surge suppressors continue to let power through even after their circuits have been damaged, leaving your equipment exposed to future surges. APC's SurgeArrest fail safe, which means that once the circuit of an APC SurgeArrest has been compromised the unit disconnects equipment from the power supply ensuring that no damaging surges reach your equipment.
  • Data-line Protection
    Protection of data lines (Ethernet, Coaxial and Phone lines) ensures complete protection of your equipment from surges. It is very important to protect your equipment from “back door” electric surges traveling through data lines, as they can be as damaging to your equipment as surges traveling over power lines.
Product Distribution
Product Distribution

United Arab Emirates , Afghanistan , Antigua & Barbuda , Anguilla , Albania , Armenia , Netherlands Antilles , Angola , Argentina , Austria , Australia , Azerbaijan , Bosnia & Herzegovina , Barbados , Belgium , Burkina Faso , Bulgaria , Bahrain , Burundi , Benin , Bermuda , Bolivia , Bahamas , Botswana , Belarus , Belize , Canada , Congo - Kinshasa , Switzerland , Côte d’Ivoire , Chile , Cameroon , China , Colombia , Costa Rica , Serbia and Montenegro , Cyprus , Czechia , Germany , Djibouti , Denmark , Dominican Republic , Algeria , Ecuador , Estonia , Egypt , Eritrea , Spain , Ethiopia , Finland , Fiji , France , Gabon , United Kingdom , Georgia , French Guiana , Ghana , Gambia , Guatemala , Guyana , Hong Kong SAR China , Honduras , Croatia , Haiti , Hungary , Indonesia , Ireland , Israel , India , Iraq , Iceland , Italy , Jamaica , Jordan , Japan , Kenya , Cambodia , South Korea , Kuwait , Cayman Islands , Kazakhstan , Lebanon , Liberia , Lithuania , Luxembourg , Latvia , Morocco , North Macedonia , Mali , Myanmar (Burma) , Mongolia , Mauritania , Malta , Malawi , Malaysia , Mozambique , Namibia , Nigeria , Nicaragua , Netherlands , Norway , New Zealand , Oman , Panama , Peru , Philippines , Pakistan , Poland , Puerto Rico , Portugal , Paraguay , Romania , Rwanda , Saudi Arabia , Sweden , Singapore , Slovenia , Slovakia , Sierra Leone , Senegal , Somalia , Suriname , El Salvador , Togo , Thailand , Tajikistan , Turkmenistan , Tunisia , Trinidad & Tobago , Tanzania , Ukraine , Uganda , United States , Uruguay , Uzbekistan , Venezuela , U.S. Virgin Islands , Vietnam , Yemen , South Africa , Zambia , Zimbabwe

Print Technical Specification

Surge Protection and Filtering

  • Data Lines Protected
    (multi-line only)
    1-8
  • ts_nm_surge_response
    1ns

Physical

  • Maximum Height
    4.09inches ( 104MM , 10.4CM )
  • Maximum Width
    1.85inches ( 47MM , 4.7CM )
  • Maximum Depth
    1.1inches ( 28MM , 2.8CM )
  • Net Weight
    0.11lbs. ( 0.05KG )
  • Shipping weight
    0.24lbs. ( 0.11KG )
  • Shipping Height
    4.09inches ( 104MM , 10.4CM )
  • Shipping Width
    1.14inches ( 29MM , 2.9CM )
  • Shipping Depth
    3.54inches ( 90MM , 9.0CM )
  • Color
    Beige
  • SCC Codes
    10731304226731

Environmental

  • Operating Temperature
    5 - 149 °F ( -15 - 65 °C )
  • Operating Relative Humidity
    0 - 95 %
  • Storage Temperature
    -15 - 65 °C
  • Storage Relative Humidity
    0 - 95 %

Conformance

  • Approvals
    UL 497B
  • Standard warranty
    10 years repair or replace

Sustainable Offer Status

  • Other Environmental Compliance
    China RoHS
Manuals and Warranties
Title
Size
Updated On

Title

Personal Surge ProtectNet 1Gb Ethernet 60 V
PDF
PDF

Size

366KB

Updated On

2022-07-28

Personal Surge ProtectNet 1Gb Ethernet 60 V
Brochure
Title
Size
Updated On

Title

ProtectNet Surge Protectors Specification Sheet
PDF
PDF

Size

88KB

Updated On

2023-09-29

Lists and describes APCs ProtectNet surge protectors features, benefits and technical specifications.
Agency Approvals
Title
Size
Updated On

Title

CE approval for ProtectNet
PDF
PDF

Size

16KB

Updated On

2024-02-22

CE approval for ProtectNet (model PNET1GB)

Title

Surge Protection Device (ProtectNet)
PDF
PDF

Size

18KB

Updated On

2024-02-22

Declaration of Conformity for Surge Protection Device (ProtectNet)
