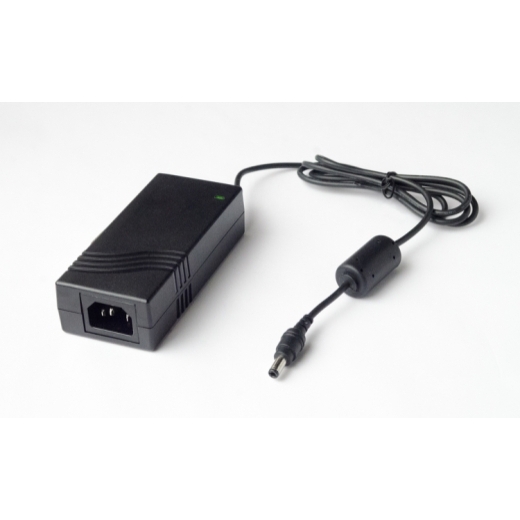

APC NetShelter CX, Replacement Power Supply, C14 Socket, 24V

Share:
APC NetShelter CX, Replacement Power Supply, C14 Socket, 24V
APC NetShelter CX, Replacement Power Supply, C14 Socket, 24V

APC NetShelter CX, Replacement Power Supply, C14 Socket, 24V

AR4705

APC NetShelter CX, Replacement Power Supply, C14 Socket, 24V
Discontinued
Call Sales Support
800-800-4272

AR4705

APC NetShelter CX, Replacement Power Supply, C14 Socket, 24V

Includes : Installation guide

NetShelter CX Enclosures Features & Benefits

  • Special packaging options for shipping rack with equipment pre-racked
    Enclosures with shock packaging are standard enclosures with provisions in the packaging design and enclosure assembly for shipping the enclosures with equipment mounted inside. Extensive industry experience with the leading IT manufacturers and most recently certified with Cisco® for pre-racking and shipping Cisco Unified Computing Systems (UCS). Check apc.com for enclosure size options and availability.
  • Toolless Rack Mounting Capabilities
    Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
  • Lockable front doors
    Protect IT equipment from unwanted access
  • Plug and Play setup
    Fast and Easy set up
  • Acoustic foam lining for noise dampening
    Superior noise reduction of installed IT equipment allowing the enclosure to be placed in a quiet environment.
  • Light oak veneer finish
    The enclosure blends discretely into almost any office environment.
Product Distribution
Product Distribution

United Arab Emirates , Afghanistan , Albania , Armenia , Angola , Austria , Australia , Azerbaijan , Bosnia & Herzegovina , Belgium , Burkina Faso , Bulgaria , Bahrain , Burundi , Benin , Brazil , Botswana , Belarus , Canada , Congo - Kinshasa , Switzerland , Côte d’Ivoire , Cameroon , China , Serbia and Montenegro , Cyprus , Czechia , Germany , Djibouti , Denmark , Algeria , Egypt , Eritrea , Spain , Ethiopia , Finland , Fiji , France , Gabon , United Kingdom , Georgia , French Guiana , Ghana , Gambia , Guadeloupe , Greece , Hong Kong SAR China , Croatia , Hungary , Indonesia , Ireland , Israel , India , Iraq , Iceland , Italy , Jordan , Kenya , Cambodia , South Korea , Kuwait , Kazakhstan , Lebanon , Liberia , Lithuania , Luxembourg , Latvia , Morocco , Madagascar , North Macedonia , Mali , Myanmar (Burma) , Mongolia , Martinique , Mauritania , Malta , Mauritius , Malawi , Malaysia , Mozambique , Namibia , Nigeria , Netherlands , Norway , New Zealand , Oman , Philippines , Pakistan , Poland , Portugal , Qatar , Réunion , Romania , Rwanda , Saudi Arabia , Sweden , Singapore , Slovenia , Slovakia , Sierra Leone , Senegal , Somalia , Suriname , Turks & Caicos Islands , Togo , Thailand , Tajikistan , Turkmenistan , Tunisia , Turkey , Taiwan , Tanzania , Ukraine , Uganda , United States , Uzbekistan , Vietnam , Yemen , Mayotte , South Africa , Zambia , Zimbabwe

Print Technical Specification

Output

  • Nominal Output Voltage
    24VDC
  • Cord Length
    4ft ( 1.2meters )

Input

  • Nominal Input Voltage
    100V , 110V , 115V , 120V , 127V , 200V , 208V , 220V , 230V , 240V
  • Input frequency
    50/60 Hz +/- 3 Hz Auto-sensing
  • Input Connections
    IEC 60320 C14

Physical

  • Maximum Height
    1.26inches ( 32MM , 3.2CM )
  • Maximum Width
    2.05inches ( 52MM , 5.2CM )
  • Maximum Depth
    4.57inches ( 116MM , 11.6CM )
  • Net Weight
    0.77lbs. ( 0.35KG )
  • Shipping weight
    1.32lbs. ( 0.6KG )
  • Shipping Height
    3.94inches ( 100MM , 10.0CM )
  • Shipping Width
    5.12inches ( 130MM , 13.0CM )
  • Shipping Depth
    7.09inches ( 180MM , 18.0CM )

Conformance

  • Approvals
    C-Tick, CCC, cUL listed, EN 55022 class B, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 61000-4-8, EN/IEC 60950-1, PSE
  • Standard warranty
    2 year (manufacturer's defect)

Sustainable Offer Status

  • RoHS
    Compliant
Manuals and Warranties
Title
Size
Updated On

Title

NetShelter CX Fan Power Supply AR4704, 4705 Installation Instructions
PDF
PDF

Size

223KB

Updated On

2022-02-01

Installation instructions for 15V and 24V power supply units for NetShelter CX fans
