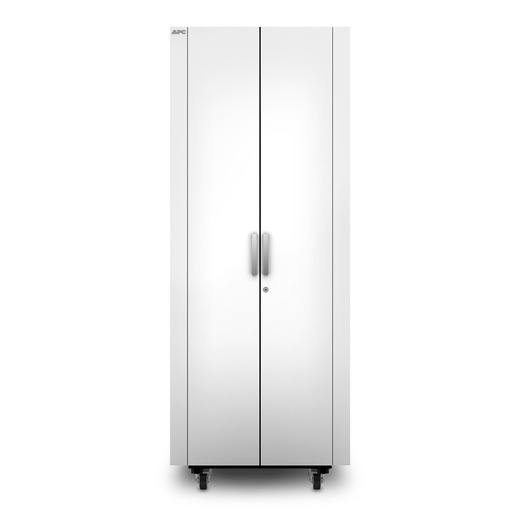

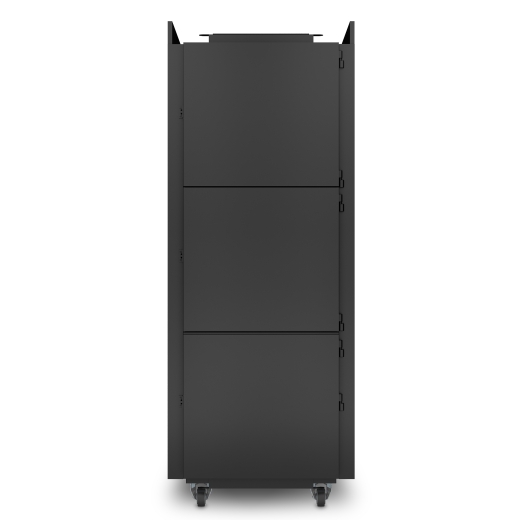

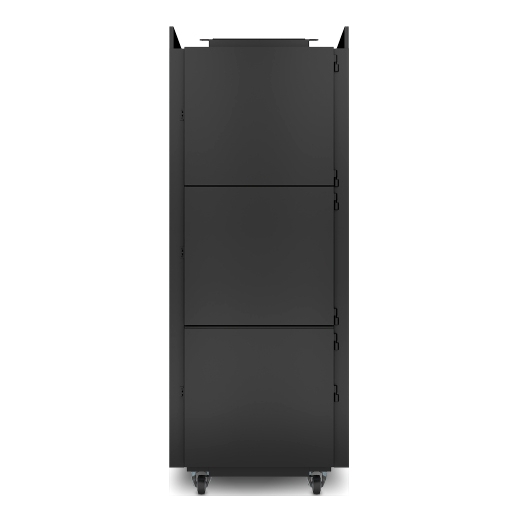

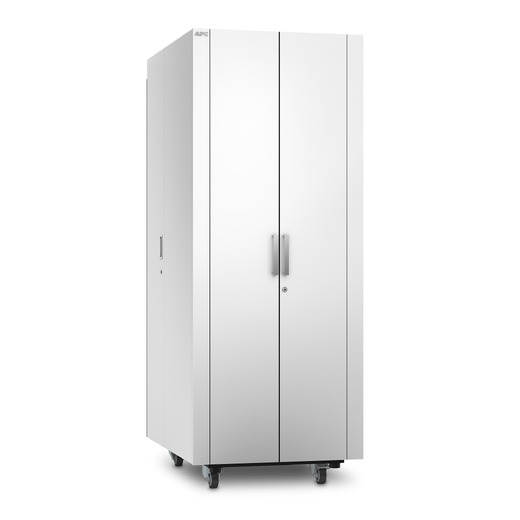

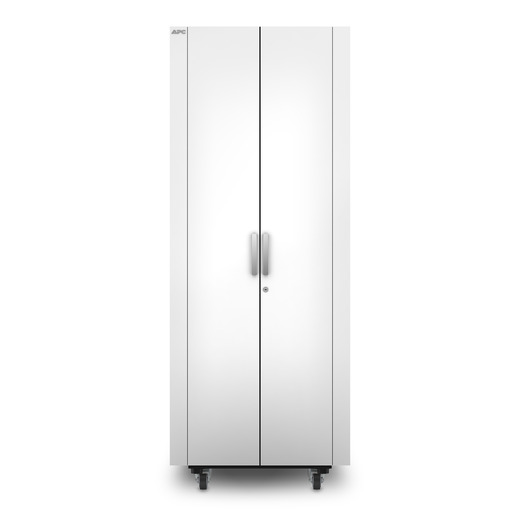

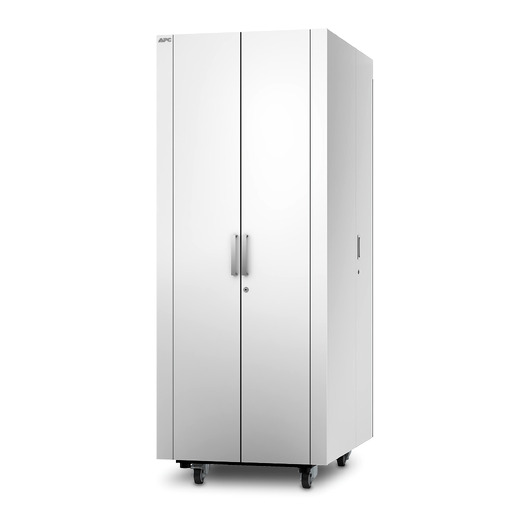

APC NetShelter CX, 38U, Soundproof Server Rack Enclosure, 100V to 120V, White, 1950H x 750W x 1130D mm

Share:
APC NetShelter CX, 38U, Soundproof Server Rack Enclosure, 100V to 120V, White, 1950H x 750W x 1130D mm

APC NetShelter CX, 38U, Soundproof Server Rack Enclosure, 100V to 120V, White, 1950H x 750W x 1130D mm

AR4038X432

APC NetShelter CX, 38U, Soundproof Server Rack Enclosure, 100V to 120V, White, 1950H x 750W x 1130D mm
Discontinued
Call Sales Support
800-800-4272

AR4038X432

APC NetShelter CX, 38U, Soundproof Server Rack Enclosure, 100V to 120V, White, 1950H x 750W x 1130D mm

  • Acoustic foam lining for noise dampening
    Superior noise reduction of installed IT equipment allowing the enclosure to be placed in a quiet environment.
  • Adjustable Front Vertical Mounting Rail
    The front mounting rails can be adjusted to allow for various mounting depths and to allow for additional clearance from the front door.
  • Adjustable leveling feet
    Leveling feet can be quickly adjusted through the use of a screwdriver or drill, eliminating the need to reach underneath with a wrench.
  • Dedicated rear cable access point
    The cable port has a capacity of up to 400 cables and is situated perfectly for ground or under-floor cabling.
  • Four vertical 0U accessory channels and cable containment brackets
    Provides multiple mounting locations for cable management accessories and rack PDUs without using critical equipment space.
  • Integrated heat removal
    High efficiency fan modules remove heat and eliminate the need to purchase a costly cooling unit for your IT equipment.
  • Integrated power distribution
    Provided with a rack power distribution unit servers and other equipment are ready for deployment.
  • Lockable front doors
    Protect IT equipment from unwanted access
  • Removable side panels
    Provides customers with easy accessibility to equipment.

NetShelter CX Enclosures Features & Benefits

  • Acoustic foam lining for noise dampening
    Superior noise reduction of installed IT equipment allowing the enclosure to be placed in a quiet environment.
  • Light oak veneer finish
    The enclosure blends discretely into almost any office environment.
  • Lockable front doors
    Protect IT equipment from unwanted access
  • Plug and Play setup
    Fast and Easy set up
  • Special packaging options for shipping rack with equipment pre-racked
    Enclosures with shock packaging are standard enclosures with provisions in the packaging design and enclosure assembly for shipping the enclosures with equipment mounted inside. Extensive industry experience with the leading IT manufacturers and most recently certified with Cisco® for pre-racking and shipping Cisco Unified Computing Systems (UCS). Check apc.com for enclosure size options and availability.
  • Toolless Rack Mounting Capabilities
    Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
Product Distribution
Product Distribution

Antigua & Barbuda , Anguilla , Netherlands Antilles , Barbados , Bermuda , Bolivia , Brazil , Bahamas , Belize , Canada , Chile , Costa Rica , Dominica , Dominican Republic , Ecuador , Grenada , Guatemala , Guyana , Honduras , Haiti , Jamaica , St. Kitts & Nevis , Cayman Islands , St. Lucia , Mexico , Nicaragua , Panama , Puerto Rico , Paraguay , El Salvador , Trinidad & Tobago , Taiwan , United States , Uruguay , St. Vincent & Grenadines , Venezuela , U.S. Virgin Islands

Print Technical Specification

Output

  • Nominal Output Voltage
    100V , 120V
  • Maximum Total Current Draw
    15
  • Output Connections
    (11) NEMA 5-15R (Battery Backup)

Input

  • Nominal Input Voltage
    115V , 120V
  • Input frequency
    50/60 Hz
  • Input Connections
    NEMA 5-15P
  • Input Power
    101 Watts

Physical

  • Maximum Height
    76.77inches ( 1950MM , 195.0CM )
  • Maximum Width
    29.53inches ( 750MM , 75.0CM )
  • Maximum Depth
    44.49inches ( 1130MM , 113.0CM )
  • Rack Height
    38U
  • Net Weight
    446.44lbs. ( 202.5KG )
  • Shipping weight
    507.06lbs. ( 230.0KG )
  • Shipping Height
    84.65inches ( 2150MM , 215.0CM )
  • Shipping Width
    47.24inches ( 1200MM , 120.0CM )
  • Shipping Depth
    31.5inches ( 800MM , 80.0CM )
  • Color
    White
  • Maximum Mounting Depth
    34.65inches ( 880.0MM , 88.01CM )
  • Minimum Mounting Depth
    28.35inches ( 720.0MM , 72.01CM )
  • Rack Width
    19"
  • Weight Capacity (static load)
    1715.99lbs. ( 778.36KG )

Conformance

  • Approvals
    EIA-310D, TAA compliance
  • Standard warranty
    2 year (manufacturer's defect)

Sustainable Offer Status

  • RoHS
    Compliant
