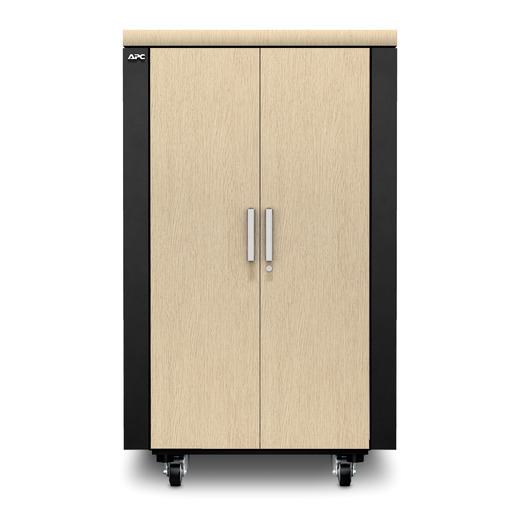

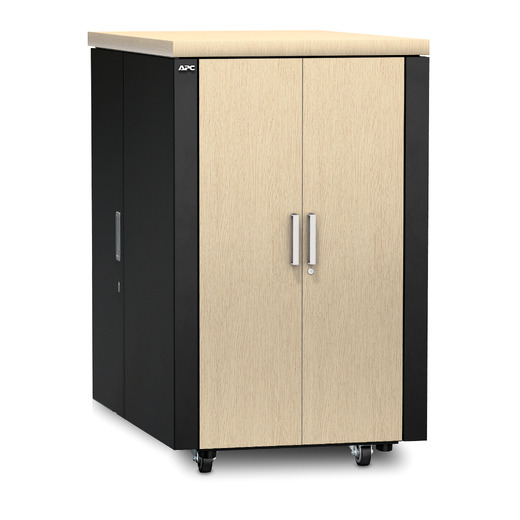

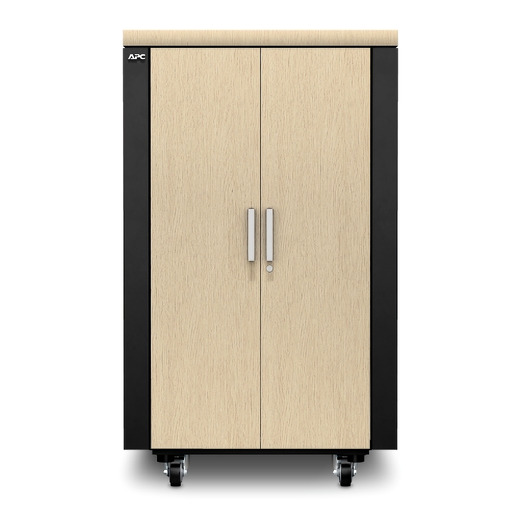

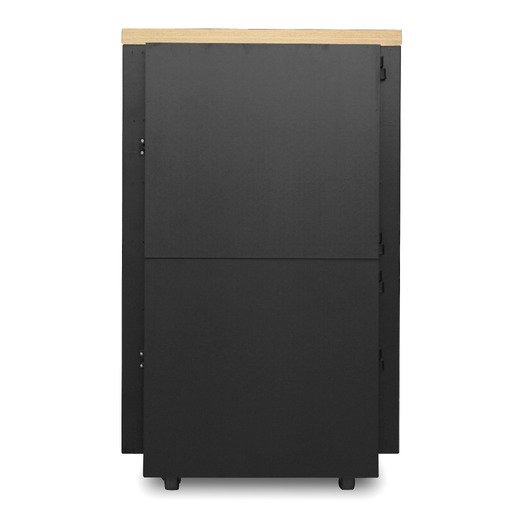

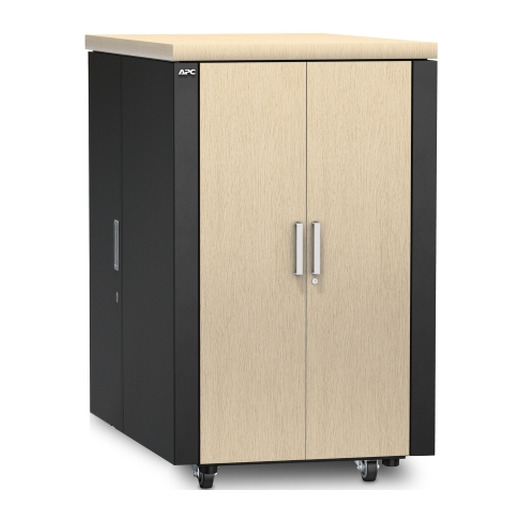

APC NetShelter CX, 24U, Soundproof Server Rack Enclosure, 100V to 240V, Grey, 1275H x 750W x 1130D mm

APC NetShelter CX, 24U, Soundproof Server Rack Enclosure, 100V to 240V, Grey, 1275H x 750W x 1130D mm

AR4024SP

APC NetShelter CX, 24U, Soundproof Server Rack Enclosure, 100V to 240V, Grey, 1275H x 750W x 1130D mm
Discontinued

AR4024SP

APC NetShelter CX, 24U, Soundproof Server Rack Enclosure, 100V to 240V, Grey, 1275H x 750W x 1130D mm

  • Acoustic foam lining for noise dampening
    Superior noise reduction of installed IT equipment allowing the enclosure to be placed in a quiet environment.
  • Adjustable equipment mounting rails
    The equipment mounting rails, front and rear, are fully adjustable for various mounting depths, for rear-facing equipment mounting or additional clearance from the front door. Maximum rack depth 88 cm/34.6 in. Minimum rack depth 12 cm/4.7 in.
  • Compatibility with enhanced enclosure access security options
    Enclosure is provided standard with front, rear, side locking components and is designed for compatibility with increased security options such as combination-style and electronic swipe access handles.
  • Dedicated rear cable access point
    The cable port has a capacity of up to 400 cables and is situated perfectly for ground or under-floor cabling.
  • Integrated heat removal
    High efficiency fan modules remove heat and eliminate the need to purchase a costly cooling unit for your IT equipment.
  • Light oak veneer finish
    The enclosure blends discretely into almost any office environment.
  • Removable side panels
    Provides customers with easy accessibility to equipment.
  • Six vertical 0U accessory channels
    Provides multiple mounting locations for cable management accessories and rack PDUs without using critical equipment space.
  • Special packaging options for shipping rack with equipment mounted
    Enclosures with shock packaging are standard enclosures with provisions in the packaging design and enclosure assembly for shipping the enclosures with equipment mounted inside. Check apc.com for enclosure size options and availability.

NetShelter CX Enclosures Features & Benefits

  • Acoustic foam lining for noise dampening
    Superior noise reduction of installed IT equipment allowing the enclosure to be placed in a quiet environment.
  • Light oak veneer finish
    The enclosure blends discretely into almost any office environment.
  • Lockable front doors
    Protect IT equipment from unwanted access
  • Plug and Play setup
    Fast and Easy set up
  • Special packaging options for shipping rack with equipment pre-racked
    Enclosures with shock packaging are standard enclosures with provisions in the packaging design and enclosure assembly for shipping the enclosures with equipment mounted inside. Extensive industry experience with the leading IT manufacturers and most recently certified with Cisco® for pre-racking and shipping Cisco Unified Computing Systems (UCS). Check apc.com for enclosure size options and availability.
  • Toolless Rack Mounting Capabilities
    Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
Product Distribution
Product Distribution

United Arab Emirates , Afghanistan , Albania , Armenia , Angola , Austria , Australia , Azerbaijan , Bosnia & Herzegovina , Belgium , Burkina Faso , Bulgaria , Bahrain , Burundi , Benin , Botswana , Belarus , Canada , Congo - Kinshasa , Switzerland , Côte d’Ivoire , Cameroon , China , Serbia and Montenegro , Cyprus , Czechia , Germany , Djibouti , Denmark , Algeria , Egypt , Eritrea , Spain , Ethiopia , Finland , Fiji , Gabon , United Kingdom , Georgia , French Guiana , Ghana , Gambia , Guadeloupe , Greece , Croatia , Hungary , Indonesia , Ireland , Israel , India , Iraq , Iceland , Italy , Jordan , Kenya , Cambodia , South Korea , Kuwait , Kazakhstan , Lebanon , Liberia , Lithuania , Luxembourg , Latvia , Morocco , Madagascar , North Macedonia , Mali , Myanmar (Burma) , Mongolia , Martinique , Mauritania , Malta , Mauritius , Malawi , Malaysia , Mozambique , Namibia , Nigeria , Netherlands , Norway , New Zealand , Oman , Philippines , Pakistan , Poland , Portugal , Qatar , Réunion , Romania , Rwanda , Saudi Arabia , Sweden , Singapore , Slovenia , Slovakia , Sierra Leone , Senegal , Somalia , Suriname , Turks & Caicos Islands , Togo , Thailand , Tajikistan , Turkmenistan , Tunisia , Turkey , Tanzania , Ukraine , Uganda , United States , Uzbekistan , Vietnam , Yemen , Mayotte , South Africa , Zambia , Zimbabwe

Print Technical Specification

Input

  • Nominal Input Voltage
    100V , 110V , 115V , 120V , 127V , 200V , 208V , 220V , 230V , 240V
  • Input frequency
    50/60 Hz +/- 3 Hz Auto-sensing
  • Input Connections
    IEC 60320 C14
  • Input Power
    68 Watts

Physical

  • Maximum Height
    50.2inches ( 1275MM , 127.5CM )
  • Maximum Width
    29.53inches ( 750MM , 75.0CM )
  • Maximum Depth
    44.49inches ( 1130MM , 113.0CM )
  • Rack Height
    24U
  • Net Weight
    379.19lbs. ( 172.0KG )
  • Shipping weight
    546.75lbs. ( 248.0KG )
  • Shipping Height
    61.02inches ( 1550MM , 155.0CM )
  • Shipping Width
    51.18inches ( 1300MM , 130.0CM )
  • Shipping Depth
    39.37inches ( 1000MM , 100.0CM )
  • Color
    Grey , Oak
  • Maximum Mounting Depth
    33.94inches ( 862.0MM , 86.21CM )
  • Rack Width
    19"
  • Weight Capacity (static load)
    1770.97lbs. ( 803.3KG )
  • Weight Capacity (dynamic load)
    800.06lbs. ( 362.9KG )

Conformance

  • Approvals
    EIA-310D, UL 2416
  • Standard warranty
    2 year (manufacturer's defect)

Sustainable Offer Status

  • RoHS
    Compliant
Manuals and Warranties
Title
Size
Updated On
PDF

Size

1255KB

Updated On

2023-09-29

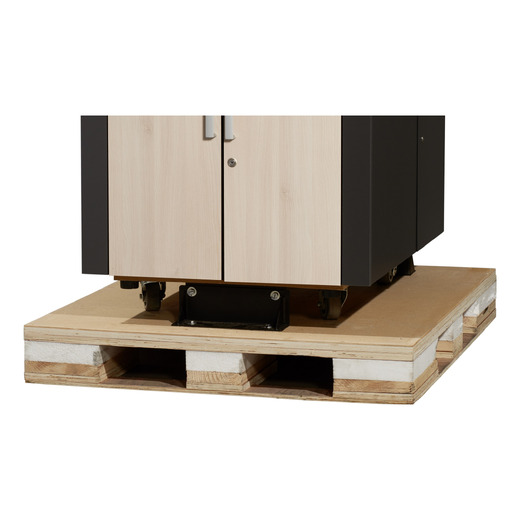

CX Enclosures, populated with equipment, and installed on a Shock Pallet.
PDF

Size

1178KB

Updated On

2023-09-29

Brochure
Title
Size
Updated On
PDF

Size

335KB

Updated On

2024-02-21

Made for commercial environments, like offices, retail, education, or healthcare facilities, our C-Series includes the same capabilities as C-Series with additional features such as fan ventilation, air filtration, and soundproofing.
PDF

Size

998KB

Updated On

2023-10-04

Product brochure highlighting Cisco certification received for the NetShelter SX and NetShelter CX Shock Packaging Racks and Enclosures
PDF

Size

487KB

Updated On

2023-09-29

Brochure Outlining the NetShelter CX Enclosures
