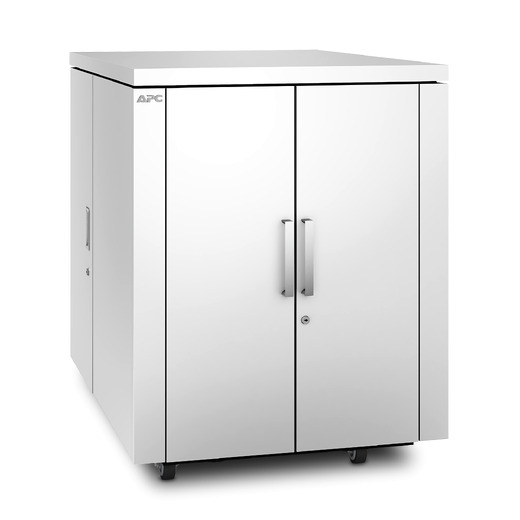

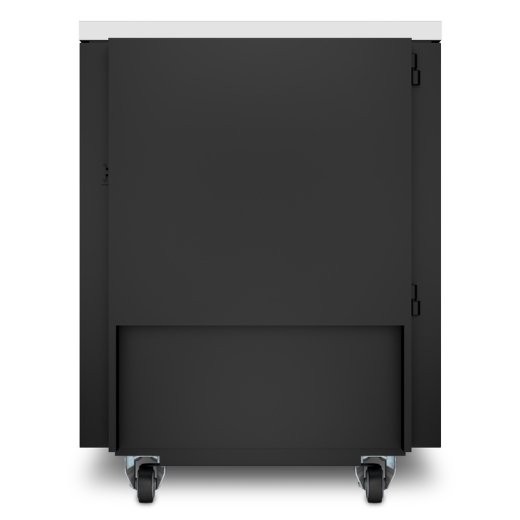

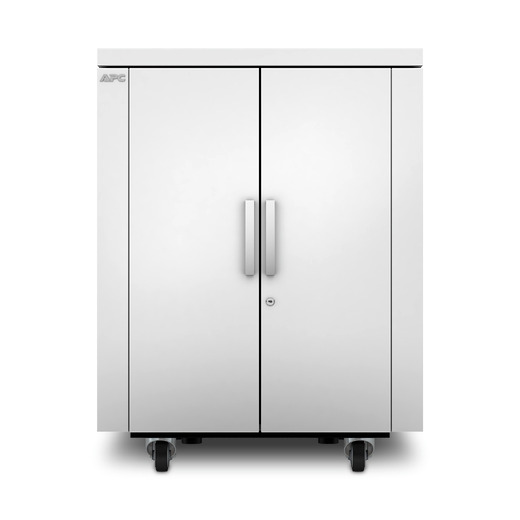

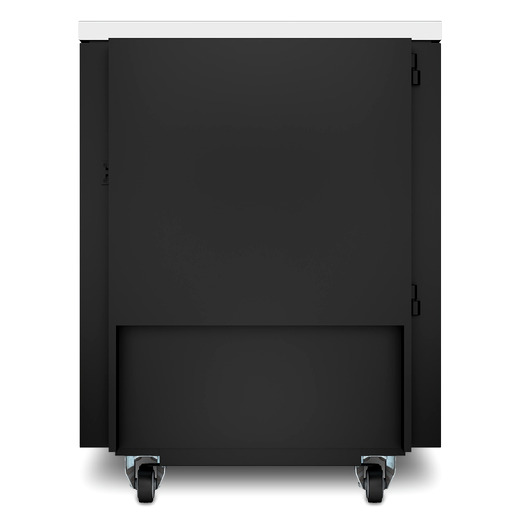

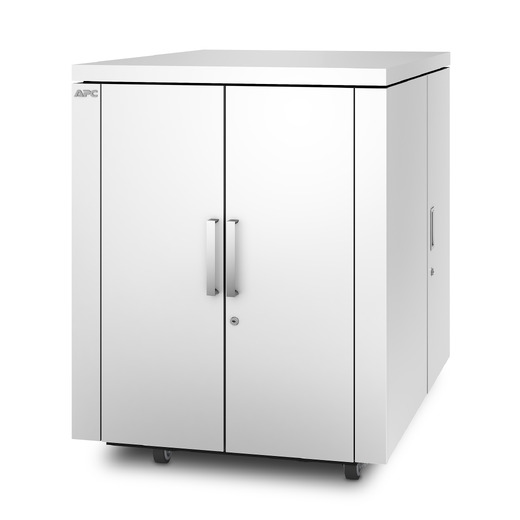

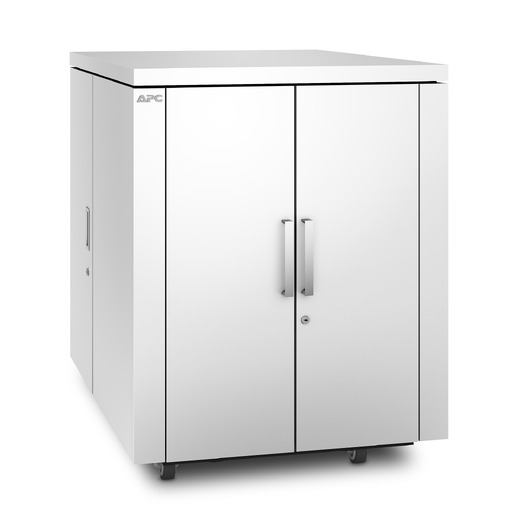

APC NetShelter CX, 18U, Soundproof Server Rack Enclosure, 100V to 240V, White, 1015H x 750W x 1130D mm

AR4018SPX432

APC NetShelter CX, 18U, Soundproof Server Rack Enclosure, 100V to 240V, White, 1015H x 750W x 1130D mm

Discontinued

Call Sales Support
800-800-4272

AR4018SPX432

APC NetShelter CX, 18U, Soundproof Server Rack Enclosure, 100V to 240V, White, 1015H x 750W x 1130D mm

Acoustic foam lining for noise dampening

Superior noise reduction of installed IT equipment allowing the enclosure to be placed in a quiet environment.
Adjustable equipment mounting rails

The equipment mounting rails, front and rear, are fully adjustable for various mounting depths, for rear-facing equipment mounting or additional clearance from the front door. Maximum rack depth 88 cm/34.6 in. Minimum rack depth 12 cm/4.7 in.
Compatibility with enhanced enclosure access security options

Enclosure is provided standard with front, rear, side locking components and is designed for compatibility with increased security options such as combination-style and electronic swipe access handles.
Dedicated rear cable access point

The cable port has a capacity of up to 400 cables and is situated perfectly for ground or under-floor cabling.
Integrated heat removal

High efficiency fan modules remove heat and eliminate the need to purchase a costly cooling unit for your IT equipment.
Removable side panels

Provides customers with easy accessibility to equipment.
Six vertical 0U accessory channels

Provides multiple mounting locations for cable management accessories and rack PDUs without using critical equipment space.
Special packaging options for shipping rack with equipment mounted

Enclosures with shock packaging are standard enclosures with provisions in the packaging design and enclosure assembly for shipping the enclosures with equipment mounted inside. Check apc.com for enclosure size options and availability.

NetShelter CX Enclosures Features & Benefits

Agility

Toolless Rack Mounting Capabilities

Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
Special packaging options for shipping rack with equipment pre-racked

Enclosures with shock packaging are standard enclosures with provisions in the packaging design and enclosure assembly for shipping the enclosures with equipment mounted inside. Extensive industry experience with the leading IT manufacturers and most recently certified with Cisco® for pre-racking and shipping Cisco Unified Computing Systems (UCS). Check apc.com for enclosure size options and availability.
Plug and Play setup

Fast and Easy set up
Lockable front doors

Protect IT equipment from unwanted access
Light oak veneer finish

The enclosure blends discretely into almost any office environment.
Acoustic foam lining for noise dampening

Superior noise reduction of installed IT equipment allowing the enclosure to be placed in a quiet environment.

Product Distribution

United Arab Emirates , Afghanistan , Albania , Armenia , Angola , Austria , Australia , Azerbaijan , Bosnia & Herzegovina , Belgium , Burkina Faso , Bulgaria , Bahrain , Burundi , Benin , Botswana , Belarus , Canada , Congo - Kinshasa , Switzerland , Côte d’Ivoire , Cameroon , China , Serbia and Montenegro , Cyprus , Czechia , Germany , Djibouti , Denmark , Algeria , Egypt , Eritrea , Spain , Ethiopia , Finland , Fiji , Gabon , United Kingdom , Georgia , French Guiana , Ghana , Gambia , Guadeloupe , Croatia , Hungary , Indonesia , Ireland , Israel , India , Iraq , Iceland , Italy , Jordan , Kenya , Cambodia , South Korea , Kuwait , Kazakhstan , Lebanon , Liberia , Lithuania , Luxembourg , Latvia , Morocco , Madagascar , North Macedonia , Mali , Myanmar (Burma) , Mongolia , Martinique , Mauritania , Malta , Mauritius , Malawi , Malaysia , Mozambique , Namibia , Nigeria , Netherlands , Norway , New Zealand , Oman , Philippines , Pakistan , Poland , Portugal , Qatar , Réunion , Romania , Rwanda , Saudi Arabia , Sweden , Singapore , Slovenia , Slovakia , Sierra Leone , Senegal , Somalia , Suriname , Turks & Caicos Islands , Togo , Thailand , Tajikistan , Turkmenistan , Tunisia , Turkey , Tanzania , Ukraine , Uganda , United States , Uzbekistan , Vietnam , Yemen , Mayotte , South Africa , Zambia , Zimbabwe

Print Technical Specification

Input

Nominal Input Voltage
100V , 110V , 115V , 120V , 127V , 200V , 208V , 220V , 230V , 240V
Input frequency
50/60 Hz +/- 3 Hz Auto-sensing
Input Connections
IEC 60320 C14
Input Power
39 Watts

Physical

Maximum Height
39.96inches ( 1015MM , 101.5CM )
Maximum Width
29.53inches ( 750MM , 75.0CM )
Maximum Depth
44.49inches ( 1130MM , 113.0CM )
Rack Height
18U
Net Weight
317.47lbs. ( 144.0KG )
Shipping weight
485.02lbs. ( 220.0KG )
Shipping Height
50.39inches ( 1280MM , 128.0CM )
Shipping Width
51.18inches ( 1300MM , 130.0CM )
Shipping Depth
39.37inches ( 1000MM , 100.0CM )
Color
White
Maximum Mounting Depth
33.94inches ( 862.0MM , 86.21CM )
Rack Width
19"
Weight Capacity (static load)
1826.0lbs. ( 828.26KG )
Weight Capacity (dynamic load)
699.99lbs. ( 317.51KG )

Conformance

Approvals
EIA-310D
Standard warranty
2 year (manufacturer's defect)

Sustainable Offer Status

RoHS
Compliant

Manuals and Warranties

Title

Size

Updated On

Title

NetShelter CX Enclosure Unpacking and Repacking with Shock Pallet

PDF

Size

1255KB

Updated On

2023-09-29

CX Enclosures, populated with equipment, and installed on a Shock Pallet.

Title

NetShelter CX SP Installation Manual

PDF

Size

1178KB

Updated On

2023-09-29

Brochure

Title

Size

Updated On

Title

EcoStruxure Micro Data Center C-Series Spec table

PDF

Size

335KB

Updated On

2024-02-21

Made for commercial environments, like offices, retail, education, or healthcare facilities, our C-Series includes the same capabilities as C-Series with additional features such as fan ventilation, air filtration, and soundproofing.

Title

Size

Updated On

Racks and Enclosures, NetShelter CX

AR4018SP-NetShelter CX 18U Secure Soundproof Server Room in a Box Enclosure - Shock Packaging

CAD Source File

2020KB

2023-09-29

AR4018SP-NetShelter CX 18U Secure Soundproof Server Room in a Box Enclosure - Shock Packaging

PDF

1003KB

2023-09-29
