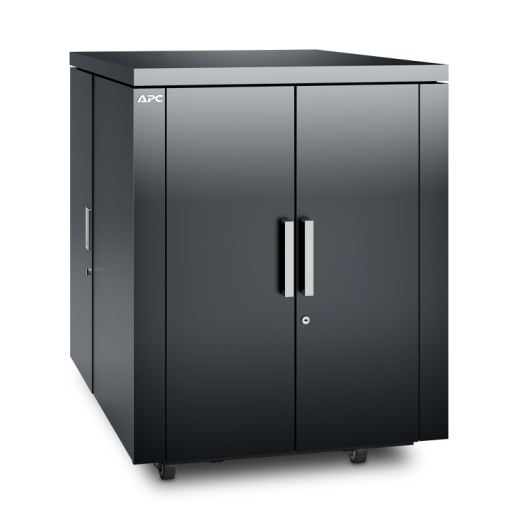

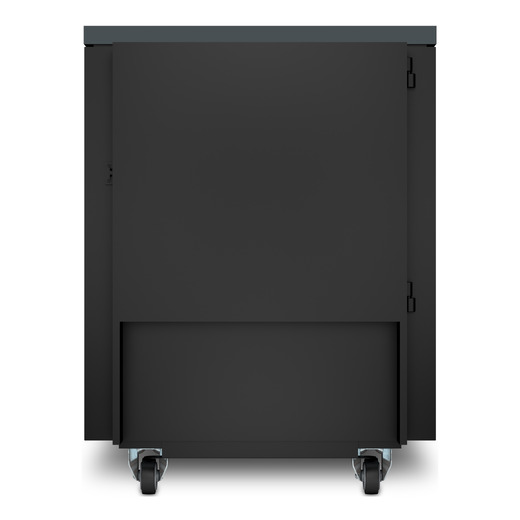

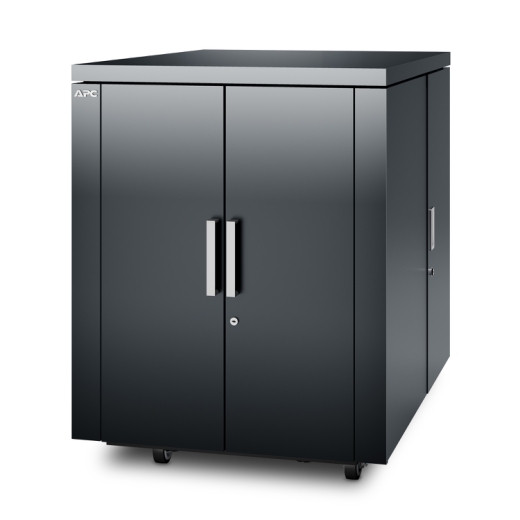

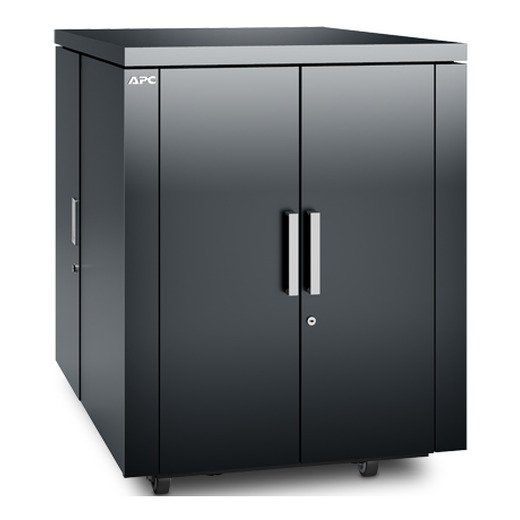

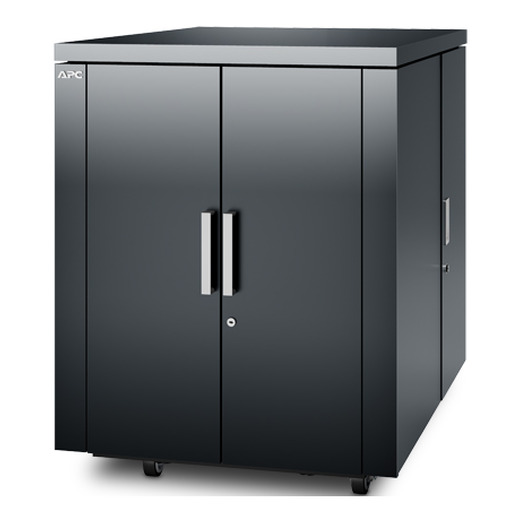

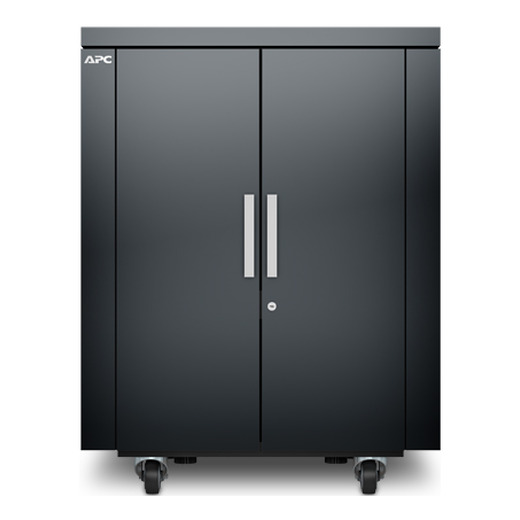

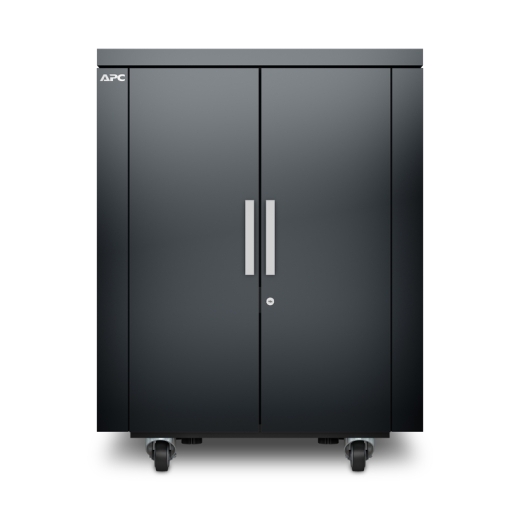

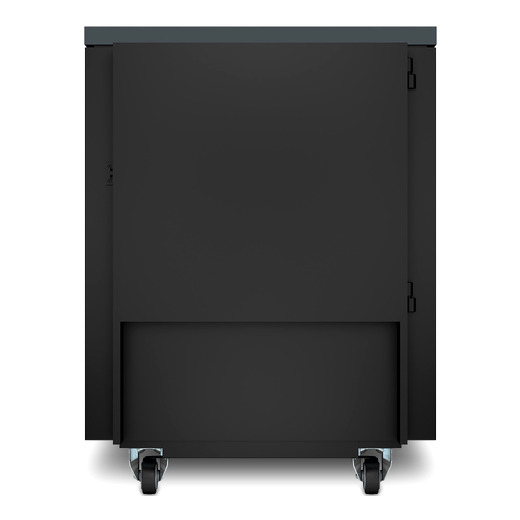

APC NetShelter CX, 18U, Soundproof Server Rack Enclosure, 100V to 120V, Dark Grey, 1015H x 750W x 1130D mm

APC NetShelter CX, 18U, Soundproof Server Rack Enclosure, 100V to 120V, Dark Grey, 1015H x 750W x 1130D mm

AR4018X431

APC NetShelter CX, 18U, Soundproof Server Rack Enclosure, 100V to 120V, Dark Grey, 1015H x 750W x 1130D mm

Specialized enclosures with integrated cooling, noise dampening, and power distribution for server and network applications in office environments.

Call for Availability
800-800-4272
Includes: Casters,Installation guide,Key(s),Leveling feet,Rack power distribution unit (PDU),Side panels

AR4018X431

APC NetShelter CX, 18U, Soundproof Server Rack Enclosure, 100V to 120V, Dark Grey, 1015H x 750W x 1130D mm

  • Acoustic foam lining for noise dampening
    Superior noise reduction of installed IT equipment allowing the enclosure to be placed in a quiet environment.
  • Adjustable Front Vertical Mounting Rail
    The front mounting rails can be adjusted to allow for various mounting depths and to allow for additional clearance from the front door.
  • Adjustable leveling feet
    Leveling feet can be quickly adjusted through the use of a screwdriver or drill, eliminating the need to reach underneath with a wrench.
  • Dedicated rear cable access point
    The cable port has a capacity of up to 400 cables and is situated perfectly for ground or under-floor cabling.
  • Four vertical 0U accessory channels and cable containment brackets
    Provides multiple mounting locations for cable management accessories and rack PDUs without using critical equipment space.
  • Integrated heat removal
    High efficiency fan modules remove heat and eliminate the need to purchase a costly cooling unit for your IT equipment.
  • Integrated power distribution
    Provided with a rack power distribution unit servers and other equipment are ready for deployment.
  • Lockable front doors
    Protect IT equipment from unwanted access
  • Removable side panels
    Provides customers with easy accessibility to equipment.

NetShelter CX Enclosures Features & Benefits

  • Acoustic foam lining for noise dampening
    Superior noise reduction of installed IT equipment allowing the enclosure to be placed in a quiet environment.
  • Light oak veneer finish
    The enclosure blends discretely into almost any office environment.
  • Lockable front doors
    Protect IT equipment from unwanted access
  • Plug and Play setup
    Fast and Easy set up
  • Special packaging options for shipping rack with equipment pre-racked
    Enclosures with shock packaging are standard enclosures with provisions in the packaging design and enclosure assembly for shipping the enclosures with equipment mounted inside. Extensive industry experience with the leading IT manufacturers and most recently certified with Cisco® for pre-racking and shipping Cisco Unified Computing Systems (UCS). Check apc.com for enclosure size options and availability.
  • Toolless Rack Mounting Capabilities
    Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
Product Distribution
Product Distribution

Antigua and Barbuda , Anguilla , Netherlands Antilles , Aruba , Barbados , Bermuda , Bolivia , Brazil , Bahamas , Belize , Canada , Dominica , Dominican Republic , Ecuador , Grenada , Guatemala , Guyana , Honduras , Haiti , Jamaica , Saint Kitts And Nevis , Cayman Islands , Saint Lucia , Nicaragua , Panama , Puerto Rico , Paraguay , El Salvador , Trinidad and Tobago , United States , Uruguay , Saint Vincent And The Grenadines , Venezuela , U.S. Virgin Islands

Print Technical Specification

Output

  • Nominal Output Voltage
    100V , 120V
  • Maximum Total Current Draw
    15
  • Output Connections
    (13) NEMA 5-15R (Battery Backup)

Input

  • Nominal Input Voltage
    100V , 120V
  • Input frequency
    50/60 Hz
  • Input Connections
    NEMA 5-15P
  • Input Power
    39 Watts

Physical

  • Maximum Height
    39.96inches ( 1015MM , 101.5CM )
  • Maximum Width
    29.53inches ( 750MM , 75.0CM )
  • Maximum Depth
    44.49inches ( 1130MM , 113.0CM )
  • Rack Height
    18U
  • Net Weight
    288.81lbs. ( 131.0KG )
  • Shipping weight
    347.23lbs. ( 157.5KG )
  • Shipping Height
    49.21inches ( 1250MM , 125.0CM )
  • Shipping Width
    47.24inches ( 1200MM , 120.0CM )
  • Shipping Depth
    31.5inches ( 800MM , 80.0CM )
  • Color
    Grey
  • Maximum Mounting Depth
    34.65inches ( 880.0MM , 88.01CM )
  • Minimum Mounting Depth
    28.35inches ( 720.0MM , 72.01CM )
  • Rack Width
    19"
  • Weight Capacity (static load)
    1826.0lbs. ( 828.26KG )

Conformance

  • Approvals
    EIA-310D, TAA compliance
  • Standard warranty
    2 year (manufacturer's defect)

Sustainable Offer Status

  • RoHS
    Compliant
Manuals and Warranties
Title
Size
Updated On
PDF

Size

689KB

Updated On

03/08/21

Unpacking Sheet for the NetShelter CX Integrated Enclosure for the Office Environment
Brochure
Title
Size
Updated On
PDF

Size

65KB

Updated On

02/20/23

NetShelter CX, solving problems for the Healthcare vertical
PDF

Size

335KB

Updated On

08/06/20

Made for commercial environments, like offices, retail, education, or healthcare facilities, our C-Series includes the same capabilities as C-Series with additional features such as fan ventilation, air filtration, and soundproofing.
