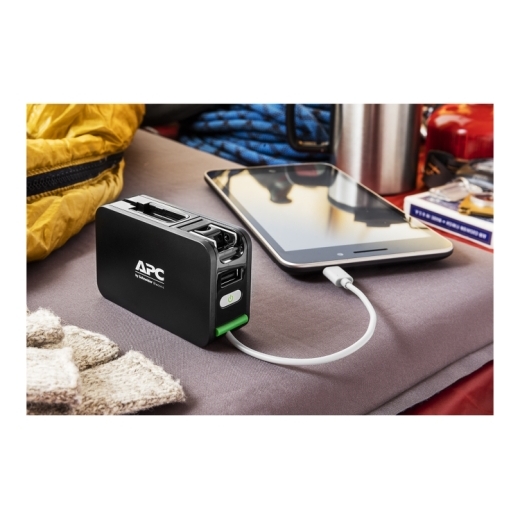

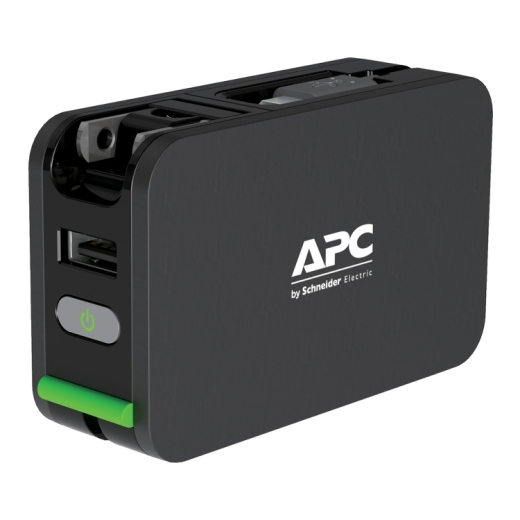

APC Mobile Power Pack, 3400mAh , Lithium-Ion, All-in-One charging solution, Black

Share:
APC Mobile Power Pack, 3400mAh , Lithium-Ion, All-in-One charging solution, Black APC Mobile Power Pack, 3400mAh , Lithium-Ion, All-in-One charging solution, Black APC Mobile Power Pack, 3400mAh , Lithium-Ion, All-in-One charging solution, Black APC Mobile Power Pack, 3400mAh , Lithium-Ion, All-in-One charging solution, Black
APC Mobile Power Pack, 3400mAh , Lithium-Ion, All-in-One charging solution, Black

APC Mobile Power Pack, 3400mAh , Lithium-Ion, All-in-One charging solution, Black

M3PMBK

APC Mobile Power Pack, 3400mAh , Lithium-Ion, All-in-One charging solution, Black
Discontinued
Call Sales Support
800-800-4272

M3PMBK

APC Mobile Power Pack, 3400mAh , Lithium-Ion, All-in-One charging solution, Black

  • Captive micro-USB cable
    Conveniently charge your devices on the go without having to carry an additional USB cable.
  • Efficient charging
    Extends the Mobile Power Pack's battery life by automatically shutting down when the connected devices have completely charged.

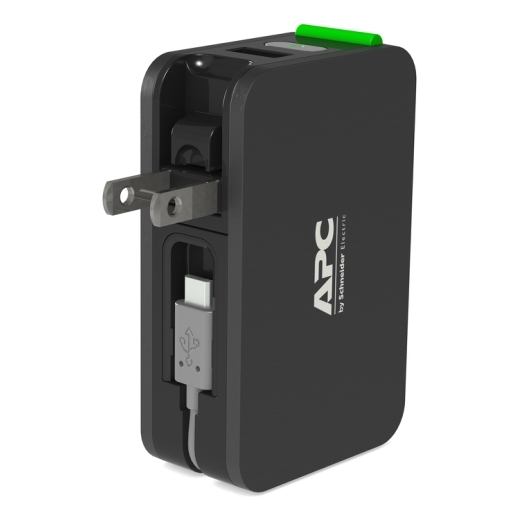

  • Foldaway AC plug
    Retractable plug provides convenient charging of the internal battery.
  • LED battery charge indicator
    Push-button activated LED display provides battery charge status.
  • Mobile device compatible
    Mobile power packs recharge all devices that connect to power using a USB cable, including your mobile phone, tablet, audio player, handheld gaming console, and e-reader.

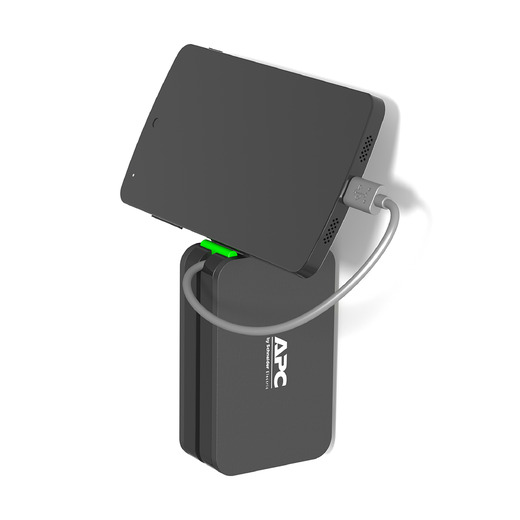

  • Pass-through charging
    Charge your mobile power pack and connected devices simultaneously.
  • Thermal overload protection
    Safeguards unit and battery from damage by automatically powering down when the battery temperature is above the safe operating limit.
  • Universal input power
    Charge the internal battery using any power input (100-264 VaC), anywhere in the world.

Mobile Power Packs Features & Benefits

  • Efficient charging
    Extends the Mobile Power Pack's battery life by automatically shutting down when the connected devices have completely charged.
  • LED battery charge indicator
    Push-button activated LED display provides battery charge status.
  • Mobile device compatible
    Mobile power packs recharge all devices that connect to power using a USB cable, including your mobile phone, tablet, audio player, handheld gaming console, and e-reader.
Product Distribution
Product Distribution

Antigua & Barbuda , Anguilla , Netherlands Antilles , Argentina , Barbados , Bermuda , Bolivia , Brazil , Bahamas , Belize , Canada , Chile , Costa Rica , Dominica , Dominican Republic , Ecuador , Grenada , Guatemala , Guyana , Honduras , Haiti , Jamaica , St. Kitts & Nevis , Cayman Islands , St. Lucia , Nicaragua , Panama , Puerto Rico , Paraguay , El Salvador , Trinidad & Tobago , United States , Uruguay , St. Vincent & Grenadines , Venezuela , U.S. Virgin Islands

Print Technical Specification

Output

  • Battery Capacity (mAh)
    3400
  • Battery Output Voltage
    5 V

Input

  • Nominal Input Voltage
    100V , 110V , 115V , 120V , 200V , 208V , 220V , 230V , 240V
  • Input frequency
    47 - 63 Hz
  • Input Connections
    NEMA 1-15P, Standard 2-blade plug
  • Input Power
    7 Watts

Batteries & Runtime

  • Battery type
    Li-Ion (Lithium-Ion)
  • Expected Battery Life (years)
    1
  • Battery life (number of cycles)
    360 cycles

Physical

  • Maximum Height
    1.06inches ( 27MM , 2.7CM )
  • Maximum Width
    2.05inches ( 52MM , 5.2CM )
  • Maximum Depth
    3.39inches ( 86MM , 8.6CM )
  • Net Weight
    0.26lbs. ( 0.12KG )
  • Color
    Black

Environmental

  • Operating Temperature
    32 - 104 °F ( 0 - 40 °C )
  • Operating Relative Humidity
    0 - 95 (Non-condensing) %
  • Operating Elevation
    0 - 10000ft ( 0 - 3048meters )
  • Storage Temperature
    0 - 40 °C
  • Storage Relative Humidity
    0 - 95 (Non-condensing) %
  • Storage Elevation
    0 - 10000ft ( 0 - 3048meters )

Conformance

  • Approvals
    California Energy Commission (CEC), CE Mark, cTUVus, EN/IEC 60950-1, FCC part 15 class B, PSE
  • Standard warranty
    1 year repair or replace

Sustainable Offer Status

  • RoHS
    Compliant
Manuals and Warranties
Title
Size
Updated On

Title

Mobile Power Pack M3Px - APJ/NAM
PDF
PDF

Size

612KB

Updated On

2022-07-04

User Manual for Mobile Power Packs M3PABK and M3PMBK for APJ and NAM Regions
Brochure
Title
Size
Updated On

Title

Mobile Power Packs M3PMBK Brochure
PDF
PDF

Size

464KB

Updated On

2024-02-06

Two page brochure with top level features, benefits and specs
Agency Approvals
Title
Size
Updated On

Title

CB certificate for APC MOBILE POWER PACK 3400MAH WITH AC PLUG
PDF
PDF

Size

190KB

Updated On

2024-02-22

IEC 60950-1:2005 + A1 + A2

Title

EMC certificate for APC MOBILE POWER PACK 3400MAH WITH AC PLUG
PDF
PDF

Size

658KB

Updated On

2024-02-22

EN 55022: 2010 + AC:2011; EN 61000-3-2:2014; EN 61000-3-3:2013; EN55024:2010; IEC61000-4-2; IEC61000-4-3; IEC61000-4-4; IEC61000-4-5; IEC61000-4-6; IEC61000-4-11

Title

ROHS certificate for APC MOBILE POWER PACK 3400MAH WITH AC PLUG AND MICRO USB OUTPUT CABLE, BLACK
PDF
PDF

Size

789KB

Updated On

2024-02-22

According to RoHS Directive 2011/65/EU

Title

cTUVus certificate for APC MOBILE POWER PACK 3400MAH WITH AC PLUG
PDF
PDF

Size

151KB

Updated On

2024-02-22

UL 2054:2004 R9.11; UL 60950-1:2007 R10.14; CAN/CSA-C22.2 NO.60950-1-07 + A1:2011 + A2:2014

Title

FCC certificate for APC MOBILE POWER PACK 3400MAH WITH AC PLUG
PDF
PDF

Size

629KB

Updated On

2024-02-22

FCC Part 15 Subpart B

Title

CE LVD certificate for APC MOBILE POWER PACK 3400MAH WITH AC PLUG
PDF
PDF

Size

675KB

Updated On

2024-02-22

EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
Environmental Profile
Title
Size
Updated On

Title

End of Life instructions for Lithium Ion RBC _EN
PDF
PDF

Size

219KB

Updated On

2022-10-05
