APC KVM Console Extender

Share:

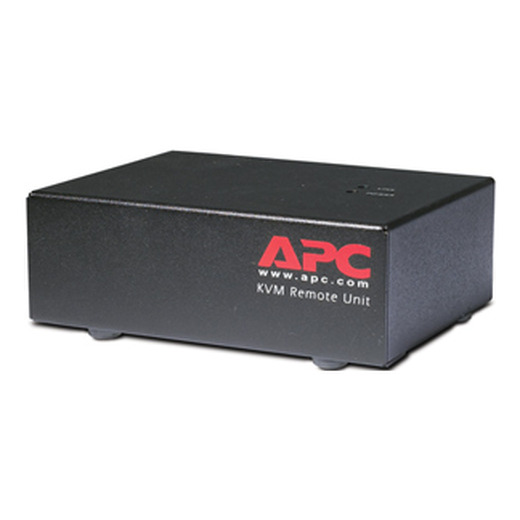

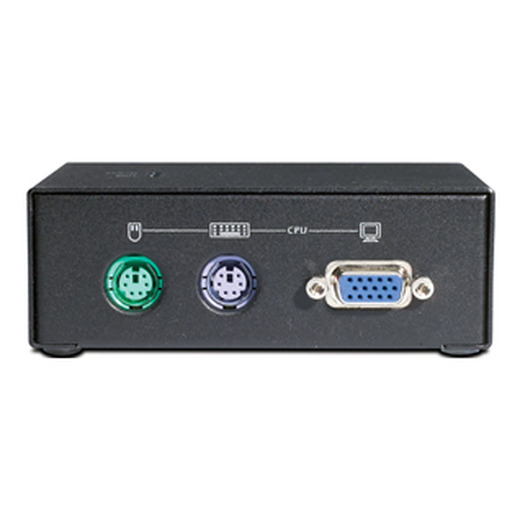

APC KVM Console Extender

APC KVM Console Extender

AP5203

APC KVM Console Extender
Discontinued
Call Sales Support
800-800-4272

NetShelter KVM Switches Features & Benefits

  • Scalable Architecture
    Cascade multiple KVM switches for a modular solution that supports multiple platforms, improving flexibility and simplifying future expansion. Please see the user's manual for specific cascading capabilities.
  • Multi-platform Support
    Windows, Sun, Unix and Linux compatible.
  • Out-of-Band Management
    Troubleshoot servers and diagnose problems in lieu of a working operating system with POST and BIOS-level access to servers.
  • Hot Pluggable Operation
    Add or remove servers without having to power off the switch.
  • Occupies 1U of rack space
    Conserve valuable rack space in the data center.
Product Distribution
Product Distribution

Belgium , Brazil , Canada , Chile , China , Serbia and Montenegro , Greece , Croatia , Italy , South Korea , Morocco , Netherlands , Portugal , Slovenia , Taiwan , United States

Print Technical Specification

Input

  • Nominal Input Voltage
    120V
  • Input Connections
    NEMA 5-15P
  • Number of Power Cords
    1
  • Input Power
    10 Watts

Physical

  • Maximum Height
    1.61inches ( 41MM , 4.1CM )
  • Maximum Width
    3.9inches ( 99MM , 9.9CM )
  • Maximum Depth
    3.19inches ( 81MM , 8.1CM )
  • Net Weight
    1.76lbs. ( 0.8KG )
  • Shipping weight
    2.01lbs. ( 0.91KG )
  • Shipping Height
    2.01inches ( 51MM , 5.1CM )
  • Shipping Width
    6.5inches ( 165MM , 16.5CM )
  • Shipping Depth
    5.0inches ( 127MM , 12.7CM )
  • Color
    Black

Environmental

  • Operating Temperature
    32 - 122 °F ( 0 - 50 °C )
  • Operating Relative Humidity
    0 - 85 %
  • Operating Elevation
    0 - 10000ft ( 0 - 3048meters )
  • Storage Temperature
    -20 - 50 °C
  • Storage Relative Humidity
    0 - 85 %
  • Storage Elevation
    0 - 50000ft ( 0 - 15240meters )

Conformance

  • Approvals
    CE, FCC part 15 class A, TAA compliance
  • Standard warranty
    2 years repair or replace

Sustainable Offer Status

  • RoHS
    Compliant
Manuals and Warranties
Title
Size
Updated On

Title

Installation Coaxial Analog KVM Switch and Extender
PDF
PDF

Size

247KB

Updated On

2022-02-01

Installation instructions
