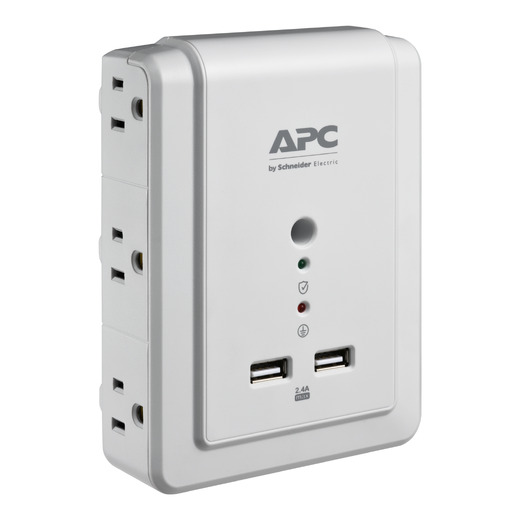

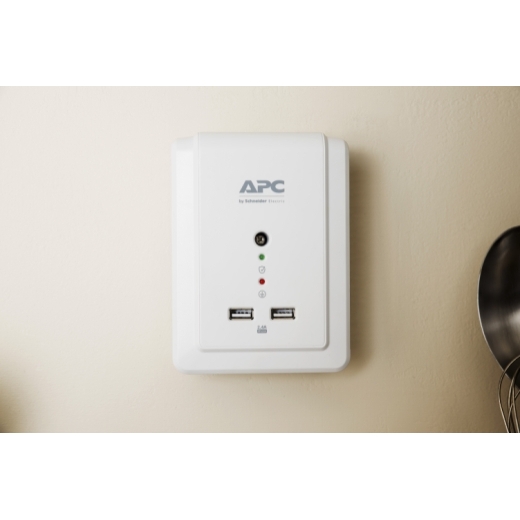

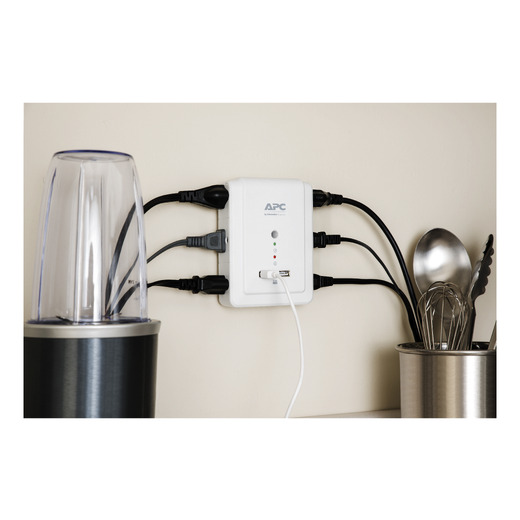

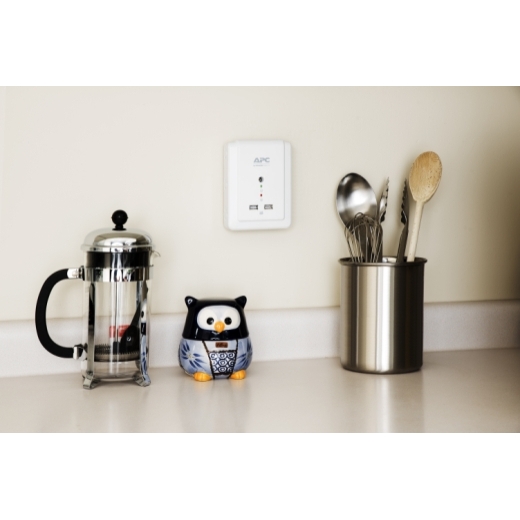

APC Essential SurgeArrest 6 Outlet Wall Mount With USB, 120V

Share:
APC Essential SurgeArrest 6 Outlet Wall Mount With USB, 120V

APC Essential SurgeArrest 6 Outlet Wall Mount With USB, 120V

P6WU2

APC Essential SurgeArrest 6 Outlet Wall Mount With USB, 120V
Discontinued
Call Sales Support
800-800-4272

P6WU2

APC Essential SurgeArrest 6 Outlet Wall Mount With USB, 120V

  • EMI and RFI noise filtering
    Reduces line noise that can cause data loss and keyboard errors.
  • Fail Safe Mode
    Most other surge suppressors continue to let power through even after their circuits have been damaged, leaving your equipment exposed to future surges. APC's SurgeArrest fail safe, which means that once the circuit of an APC SurgeArrest has been compromised the unit disconnects equipment from the power supply ensuring that no damaging surges reach your equipment.
  • IEEE let-through rating and UL 1449 compliance
    The 'Institute of Electrical and Electronics Engineers' (IEEE) Let-Through Voltage rating is based on a test that subjects a Surge Protector to a 6,000 volt spike. The rating equates to the amount of excess voltage that reaches connected equipment. The lower the number, the better the performance of the Surge Protector is. Underwriter's Laboratory's UL1449 surge protection safety standard uses these ratings to help users gauge performance. UL's best Transient Voltage Surge Suppressor (TVSS) Let-Through Voltage rating is "300V".
  • Lightning and Surge Protection
    When measured via ANSI/IEEE 587 Category ''A" and "B" tests, the suppression performance of the APC Smart-UPS is superior to virtually all separate surge suppressors.
  • Smart charging port
    A 2.4 amp USB port integrates Smart Charging technology to maximize charging speeds according to the type of device detected.

SurgeArrest Essential Features & Benefits

  • Safety-Agency Approved Surge Protector
    All the APC surge protectors undergo stringent testing to comply with global and local agency safety requirements.
  • Noise Filtering
    Attenuates EMI/RFI line noise that can cause data errors and keyboard lockups, ensuring better performance of protected equipment.
  • Lightning and Surge Protection
    To prevent damage to your equipment from electric power surges and spikes.
  • Data-line Protection
    Protection of data lines (Ethernet, Coaxial and Phone lines) ensures complete protection of your equipment from surges. It is very important to protect your equipment from “back door” electric surges traveling through data lines, as they can be as damaging to your equipment as surges traveling over power lines.
  • Resettable circuit breaker
    Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
  • Fail Safe Mode
    Most other surge suppressors continue to let power through even after their circuits have been damaged, leaving your equipment exposed to future surges. APC's SurgeArrest fail safe, which means that once the circuit of an APC SurgeArrest has been compromised the unit disconnects equipment from the power supply ensuring that no damaging surges reach your equipment.
  • Catastrophic Event Protection
    SurgeArrest components such as MOVs and Thermal fuse ensure instantaneous reaction to lightning strikes and wiring faults. If the surge components are damaged due to power spike or over voltage, excess power cannot reach your equipment. Unlike the APC SurgeArrest products, most surge suppressors continue to let power through even after circuits have been damaged, leaving your equipment exposed to other damaging surges.
  • Protection working indicator
    SurgeArrest will warn you if its circuitry has been damaged by heavy strike or power line surge and it is unable to provide 100% protection. If still under warranty, APC will then replace your damaged SurgeArrest free of charge.
  • Building Wiring Fault Indicator
    This LED informs users of potentially dangerous wiring problems in the wall circuit.
Product Distribution
Product Distribution

Anguilla , Netherlands Antilles , Barbados , Bermuda , Bahamas , Belize , Dominican Republic , Ecuador , Guatemala , Guyana , Honduras , Haiti , Jamaica , Nicaragua , Panama , Puerto Rico , El Salvador , Turks & Caicos Islands , Trinidad & Tobago , Venezuela , U.S. Virgin Islands

Print Technical Specification

Output

  • Number of Outlets
    6.0
  • Receptacle Style
    NEMA 5-15R

Input

  • Nominal Input Voltage
    120V
  • Input frequency
    50/60 Hz +/- 5 Hz Auto-sensing
  • Input Connections
    NEMA 5-15P
  • Input Power
    1200 Watts
  • Maximum Input Current
    15.0A
  • Maximum Line Current
    15A

Surge Protection and Filtering

  • Surge energy rating
    1080Joules
  • ts_nm_surge_response
    1ns
  • Peak Current Normal Mode
    60 per phasekAmps

Physical

  • Maximum Height
    4.02inches ( 102MM , 10.2CM )
  • Maximum Width
    1.5inches ( 38MM , 3.8CM )
  • Maximum Depth
    5.51inches ( 140MM , 14.0CM )
  • Net Weight
    0.55lbs. ( 0.25KG )
  • Shipping weight
    0.57lbs. ( 0.26KG )
  • Shipping Height
    9.49inches ( 241MM , 24.1CM )
  • Shipping Width
    7.76inches ( 197MM , 19.7CM )
  • Shipping Depth
    2.24inches ( 57MM , 5.7CM )
  • Color
    Beige
  • SCC Codes
    10731304331824

Environmental

  • Operating Temperature
    32 - 104 °F ( 0 - 40 °C )
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0 - 10000ft ( 0 - 3048meters )
  • Storage Temperature
    -15 - 45 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0 - 50000ft ( 0 - 15240meters )

Conformance

  • Approvals
    ETL
  • Equipment protection policy
    Lifetime : $50000
  • Standard warranty
    Limited Lifetime
Manuals and Warranties
Title
Size
Updated On

Title

Essential SurgeArrest P6WU2/P6W/P6WT
PDF
PDF

Size

297KB

Updated On

2022-07-26

User Guide for Essential SurgeArrest P6WU2/P6W/P6WT
Brochure
Title
Size
Updated On

Title

APC SurgeArrest P6WU2 Brochure
PDF
PDF

Size

254KB

Updated On

2023-09-29

Brochure and technical specifications for the P6WU2
Agency Approvals
Title
Size
Updated On

Title

cETLus certificate
PDF
PDF

Size

135KB

Updated On

2024-02-22

Current Taps And Adapters [UL 498A:2008 Ed.2+R:02Aug2019] General Use Receptacles, Attachment Plugs, and Similar Wiring Devices>Expires on: 31Mar2022< [CSA C22.2#42:2010 Ed.7+U2] Surge Protective Devices [UL 1449:2014 Ed.4+R:17Mar2016] Electromagne
