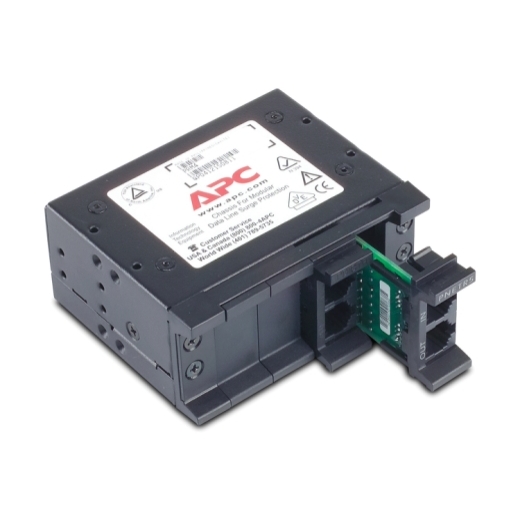

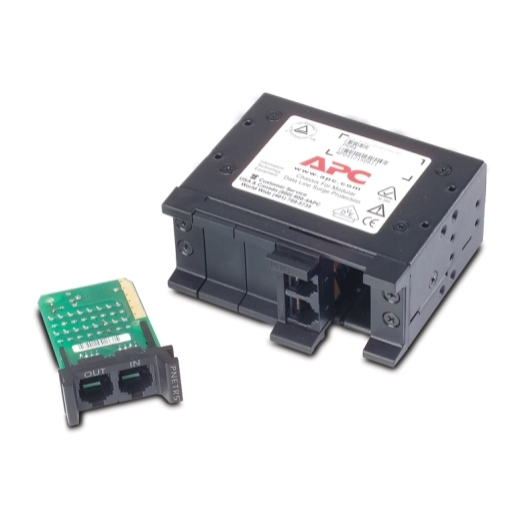

APC 4 position chassis for replaceable data line surge protection modules, 1U

Share:
APC 4 position chassis for replaceable data line surge protection modules, 1U

APC 4 position chassis for replaceable data line surge protection modules, 1U

PRM4

APC 4 position chassis for replaceable data line surge protection modules, 1U
Discontinued
Call Sales Support
800-800-4272

ProtectNet Features & Benefits

  • Lightning and Surge Protection
    To prevent damage to your equipment from electric power surges and spikes.
  • Fail Safe Mode
    Most other surge suppressors continue to let power through even after their circuits have been damaged, leaving your equipment exposed to future surges. APC's SurgeArrest fail safe, which means that once the circuit of an APC SurgeArrest has been compromised the unit disconnects equipment from the power supply ensuring that no damaging surges reach your equipment.
  • Data-line Protection
    Protection of data lines (Ethernet, Coaxial and Phone lines) ensures complete protection of your equipment from surges. It is very important to protect your equipment from “back door” electric surges traveling through data lines, as they can be as damaging to your equipment as surges traveling over power lines.
Product Distribution
Product Distribution

United Arab Emirates , Afghanistan , Antigua & Barbuda , Anguilla , Albania , Armenia , Netherlands Antilles , Angola , Austria , Australia , Azerbaijan , Bosnia & Herzegovina , Barbados , Belgium , Burkina Faso , Bulgaria , Bahrain , Burundi , Benin , Bermuda , Bolivia , Botswana , Belarus , Belize , Canada , Congo - Kinshasa , Switzerland , Côte d’Ivoire , Cameroon , China , Colombia , Costa Rica , Serbia and Montenegro , Cyprus , Czechia , Germany , Djibouti , Denmark , Dominican Republic , Algeria , Ecuador , Estonia , Egypt , Eritrea , Spain , Ethiopia , Finland , Fiji , France , Gabon , United Kingdom , Georgia , Ghana , Gambia , Greece , Guatemala , Guyana , Hong Kong SAR China , Honduras , Croatia , Hungary , Indonesia , Ireland , Iraq , Iceland , Italy , Jamaica , Jordan , Kenya , Cambodia , South Korea , Kuwait , Cayman Islands , Kazakhstan , Lebanon , Liberia , Lithuania , Luxembourg , Latvia , Morocco , Mali , Myanmar (Burma) , Mongolia , Mauritania , Malta , Malawi , Malaysia , Mozambique , Namibia , Nigeria , Nicaragua , Netherlands , Norway , New Zealand , Oman , Panama , Peru , Philippines , Pakistan , Poland , Puerto Rico , Portugal , Paraguay , Romania , Rwanda , Saudi Arabia , Sweden , Singapore , Slovenia , Slovakia , Sierra Leone , Senegal , Somalia , Suriname , El Salvador , Togo , Thailand , Tajikistan , Turkmenistan , Tunisia , Trinidad & Tobago , Tanzania , Ukraine , Uganda , United States , Uruguay , Uzbekistan , Venezuela , U.S. Virgin Islands , Vietnam , Yemen , South Africa , Zambia , Zimbabwe

Print Technical Specification

Physical

  • Maximum Height
    1.73inches ( 44MM , 4.4CM )
  • Maximum Width
    4.02inches ( 102MM , 10.2CM )
  • Maximum Depth
    3.27inches ( 83MM , 8.3CM )
  • Net Weight
    0.66lbs. ( 0.3KG )
  • Shipping weight
    0.97lbs. ( 0.44KG )
  • Shipping Height
    2.52inches ( 64MM , 6.4CM )
  • Shipping Width
    5.0inches ( 127MM , 12.7CM )
  • Shipping Depth
    5.75inches ( 146MM , 14.6CM )
  • Color
    Black
  • SCC Codes
    30731304217177

Environmental

  • Operating Temperature
    5 - 113 °F ( -15 - 45 °C )
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0 - 10000ft ( 0 - 3048meters )
  • Storage Temperature
    -15 - 45 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0 - 10000ft ( 0 - 3048meters )

Conformance

  • Approvals
    TÜV, VDE
  • Standard warranty
    Lifetime

Sustainable Offer Status

  • RoHS
    Compliant
Manuals and Warranties
Title
Size
Updated On

Title

ProtectNet PRM4 (Manual)
PDF
PDF

Size

936KB

Updated On

2022-07-20

Site Preparation; Installation; Configuration; Technical Specifications; Declaration of Conformity; Troubleshooting; Warranty and Service
Agency Approvals
Title
Size
Updated On

Title

cTUVus for PRM4
PDF
PDF

Size

823KB

Updated On

2024-02-22

UL 60950:2000; CAN/CSA-C22.2 No. 60950-00

Title

Surge Protection Device (ProtectNet)
PDF
PDF

Size

18KB

Updated On

2024-02-22

Declaration of Conformity for Surge Protection Device (ProtectNet)
