Output

• Nominal Output Voltage
  120V , 208V , 240V
• Efficiency at Full Load
  95 % %
• Always on Outlets
  4
• Overload Protection
  Yes
• Maximum Total Current Draw
  60

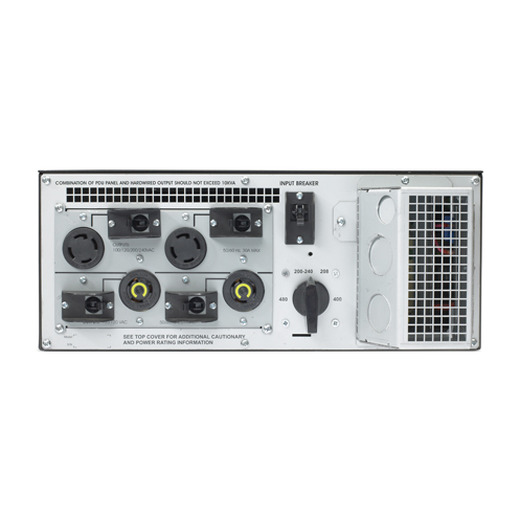

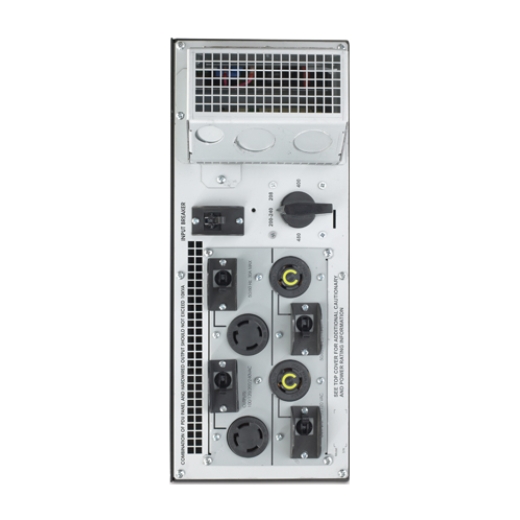

• Output Connections
  (2) NEMA L14-30R (Battery Backup)
  (2) NEMA L5-20R (Battery Backup)
  (1) Hard wire 4-wire (2P + N + E) (Battery Backup)

Input

• Nominal Input Voltage
  208V
• Input frequency
  45 - 65 Hz
• Input Connections
  Hard wire 3-wire (2P + E)
• Acceptable Input Voltage
  200 - 240VAC
• Efficiency at Full Load
  95 % %
• Load Capacity
  10000VA
• Maximum Input Current
  60A
• Maximum Line Current
  60A

Physical

• Maximum Height
  6.89inches ( 175MM , 17.5CM )
• Maximum Width
  17.01inches ( 432MM , 43.2CM )
• Maximum Depth
  29.49inches ( 749MM , 74.9CM )
• Rack Height
  4U
• Net Weight
  220.46lbs. ( 100.0KG )
• Shipping weight
  275.58lbs. ( 125.0KG )
• Shipping Height
  15.98inches ( 406MM , 40.6CM )
• Shipping Width
  39.37inches ( 1000MM , 100.0CM )
• Shipping Depth
  23.62inches ( 600MM , 60.0CM )
• Color
  Black

Environmental

• Operating Temperature
  32 - 104 °F ( 0 - 40 °C )
• Operating Relative Humidity
  0 - 95 %
• Operating Elevation
  0 - 10000ft ( 0 - 3048meters )
• Storage Temperature
  -25 - 65 °C
• Storage Relative Humidity
  0 - 95 %
• Storage Elevation
  0 - 50000ft ( 0 - 15240meters )

Conformance

• Approvals
  C-Tick, CE, CSA, GOST, UL listed, VDE
• Standard warranty
  2 years repair or replace
