Overhead Zone Cabling 4U 19 in (482 mm)W Patch Frame

Share:

Overhead Zone Cabling 4U 19 in (482 mm)W Patch Frame

VDIM33174

Overhead Zone Cabling 4U 19 in (482 mm)W Patch Frame

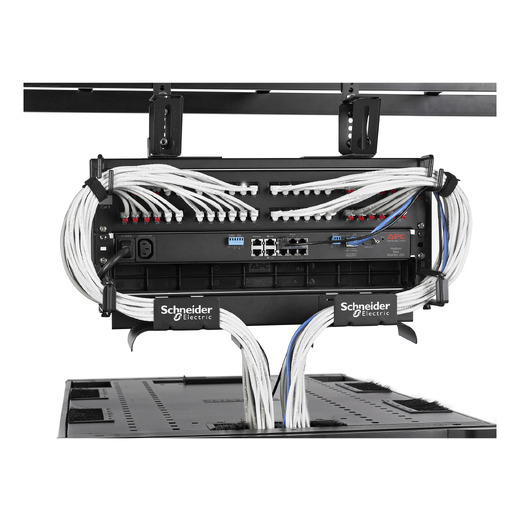

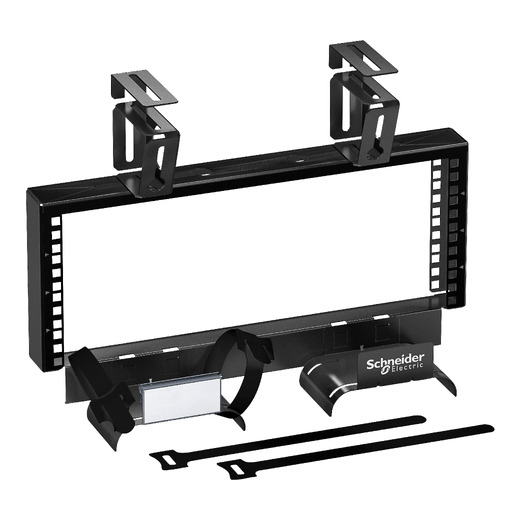

This Overhead Zone Cabling Patch Frame is a 4U 2-post 482mm (19in) width frame that attaches directly to overhead cable management systems above racks or enclosures for patching or installation of small switches. Zone Cabling provides flexibility in network and datacenter design by decoupling the physical network cabling from the enclosure, allowing easy movement of racks and upgrades to the network while saving time and money. Frame is provided standard with brackets for mesh wire cable tray and can also be mounted to cable ladder systems using cable ladder elevation bracket (AR8186). The frame supports up to 15 kg (33 lb) of rack mounted equipment or cabling.

Call for More Information
800-800-4272
Includes: Installation guide,Mounting hardware,Qty 1 - 8 inch/20cm grounding strap,Qty 1 - Documentation label holder,Qty 2 - Cable Radius Drop,Qty 2 - Mesh wire cable tray mounting brackets,Qty 2 - Straight/Angle mounting brackets,Qty 4 - Hook-and-loop fasteners

NetShelter Network Connectivity Features & Benefits

  • Superior usability
    Actassi is easy to specify, easy to install, easy to use and easy to upgrade
  • Quick and easy installation
    With innovations such as the S-One connector, the sliding 19” patch panels and the CL-MX cable, Actassi allows you to work faster: installation time will be decreased by up to 20%, still high-performing network cabling is ensured. The S-One connector is up to 50% faster to connect, and the pre-term fiber is up to 3 times faster to install.
  • Performance with compliancy to the most advanced international standards
    Network Connectivity Actassi products exceed the most advanced international standards, such as ISO/IEC 11801 amd 2:2010 for the new S-One connector
  • Innovation in design and offer
    Actassi includes one-piece tool-less RJ45 connectors (up to 50% faster to connect) ; 19" patch panels with quick-fix and sliding function, automatic earthling, and superior cable management and marking ; innovative LAN cables with one-foil shielding design ; 3 and 4 point Class EA LAN cabling with the highest performance ; pre-terminated fiber and copper offer, 100% pre-assembled and pre-tested.
  • PoE+
    S-One connectors enable PoE+ applications
  • Compatibility with Schneider Electric products
    Actassi components are designed to perfectly fit to other Schneider Electric products and solutions, to build a complete system.
  • Guaranty of performance, security and reliability
    Independent laboratory verification. Independent certification by 3rd party, renewed every year. 3rd party certified compliant covering all performance up to highest Cat6A (1OGb/s) available in both shielded and unshielded. Full component compliance to ISO 11801:2011 Ed 2.2, EIA/TIA 568-C. Training & extensive system warranty. Environment Focus: Green Premium offer (Product Environmental Profile)
  • Comprehensive offer
    Actassi includes RJ45 connectors; patch panels; copper LAN cables and patch cords; pre-terminated fiber optic solution.
Product Distribution
Product Distribution

United Arab Emirates , Albania , Armenia , Angola , Austria , Azerbaijan , Bosnia & Herzegovina , Belgium , Burkina Faso , Bulgaria , Bahrain , Burundi , Benin , Botswana , Belarus , Canada , Congo - Kinshasa , Switzerland , Côte d’Ivoire , Cameroon , Cyprus , Czechia , Germany , Djibouti , Denmark , Algeria , Estonia , Egypt , Eritrea , Spain , Ethiopia , Finland , France , Gabon , United Kingdom , Georgia , French Guiana , Ghana , Gambia , Guadeloupe , Greece , Croatia , Hungary , Ireland , Israel , Iraq , Iceland , Italy , Jordan , Kenya , Kuwait , Kazakhstan , Lebanon , Liberia , Lithuania , Luxembourg , Latvia , Morocco , Madagascar , North Macedonia , Mali , Mongolia , Martinique , Mauritania , Malta , Mauritius , Malawi , Mozambique , Namibia , Nigeria , Netherlands , Norway , Oman , Pakistan , Poland , Portugal , Réunion , Romania , Russia , Rwanda , Saudi Arabia , Sweden , Slovenia , Slovakia , Sierra Leone , Senegal , Somalia , Suriname , Turks & Caicos Islands , Togo , Tajikistan , Turkmenistan , Tunisia , Turkey , Tanzania , Ukraine , Uganda , United States , Uzbekistan , XF , Yemen , Mayotte , South Africa , Zambia , Zimbabwe

Print Technical Specification

Physical

  • Maximum Height
    350MM , 35.0CM
  • Maximum Width
    500MM , 50.0CM
  • Maximum Depth
    160MM , 16.0CM
  • Rack Height
    4U
  • Net Weight
    2.55KG
  • Shipping weight
    2.8KG
  • Shipping Height
    90MM , 9.0CM
  • Shipping Width
    260MM , 26.0CM
  • Shipping Depth
    540MM , 54.0CM
  • Color
    Black
  • Rack Width
    19"
  • Weight Capacity (static load)
    15.0KG

Conformance

  • Approvals
    TAA compliance
  • Standard warranty
    2 years repair or replace

Sustainable Offer Status

  • RoHS
    Compliant
  • REACH
    REACH: Contains No SVHCs
  • Proposition 65 Warning
    Available in Documentation tab
