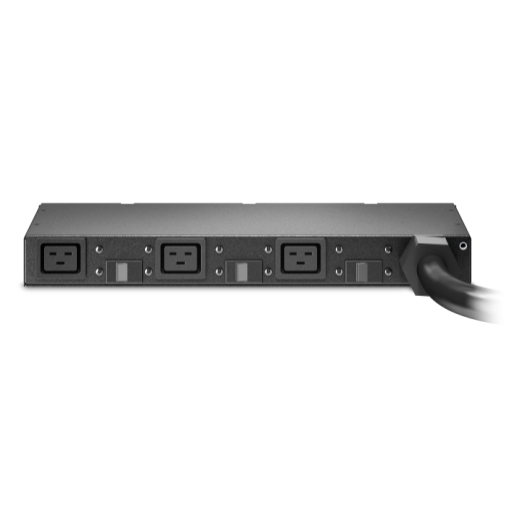

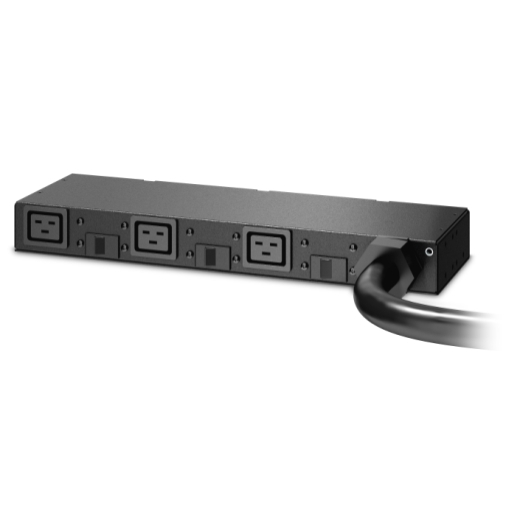

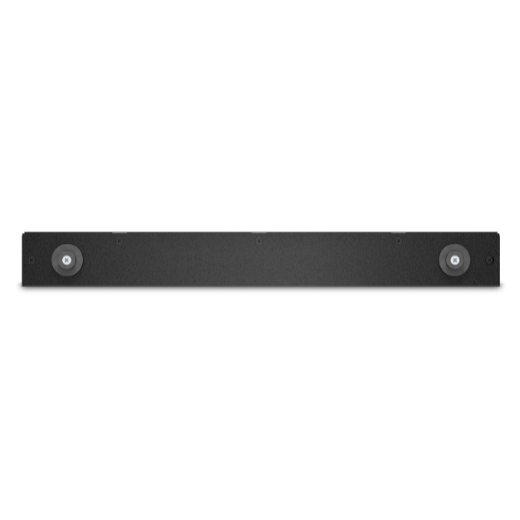

Rack PDU, Basic, 0U/1U, 208V, 60A, (3) C19

Share:
Rack PDU, Basic, 0U/1U, 208V, 60A, (3) C19 Rack PDU, Basic, 0U/1U, 208V, 60A, (3) C19 Rack PDU, Basic, 0U/1U, 208V, 60A, (3) C19
Rack PDU, Basic, 0U/1U, 208V, 60A, (3) C19

Rack PDU, Basic, 0U/1U, 208V, 60A, (3) C19

AP6039A

Rack PDU, Basic, 0U/1U, 208V, 60A, (3) C19
Discontinued
Call Sales Support
800-800-4272

NetShelter Basic Rack PDUs Features & Benefits

  • Rack-Mountable
    Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
  • Wide range of input and output connections
    Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.
  • Single input power source
    Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
  • Low Cost Power Distribution
    Provides a number of outlets to bring power to rack equipment at an affordable price.
Product Distribution
Product Distribution

Afghanistan , Canada , Chile , China , Costa Rica , Fiji , Hong Kong SAR China , Indonesia , India , Italy , Cambodia , South Korea , Myanmar (Burma) , Malaysia , Philippines , Singapore , Thailand , Taiwan , United States , Vietnam

Print Technical Specification

Output

  • Overload Protection
    Yes
  • Maximum Total Current Draw
    60
  • Output Connections
    (3) IEC 60320 C19 (Battery Backup)

Input

  • Nominal Input Voltage
    200V , 208V
  • Input frequency
    50/60 Hz
  • Input Connections
    IEC 60309 60 A 2P + E
  • Cord Length
    3.7meters
  • Load Capacity
    10000VA
  • Maximum Input Current
    60A
  • Maximum Line Current
    60A
  • Regulatory Derated Input Current (North America)
    48A

Physical

  • Maximum Height
    44MM , 4.4CM
  • Maximum Width
    388MM , 38.8CM
  • Maximum Depth
    126MM , 12.6CM
  • Rack Height
    1U
  • Net Weight
    6.92KG
  • Shipping weight
    9.78KG
  • Shipping Height
    395MM , 39.5CM
  • Shipping Width
    500MM , 50.0CM
  • Shipping Depth
    195MM , 19.5CM

Conformance

  • Approvals
    cUL listed, UL listed
  • Standard warranty
    2 years repair or replace

Sustainable Offer Status

  • RoHS
    Compliant
Design/Configuration
Title
Size
Updated On

Title

Basic Rack Power Distribution Unit AP6039A Overview Sheet
PDF
PDF

Size

155KB

Updated On

2023-09-29

Overview Sheet of the Basic Rack Power Distribution Unit AP6039A
