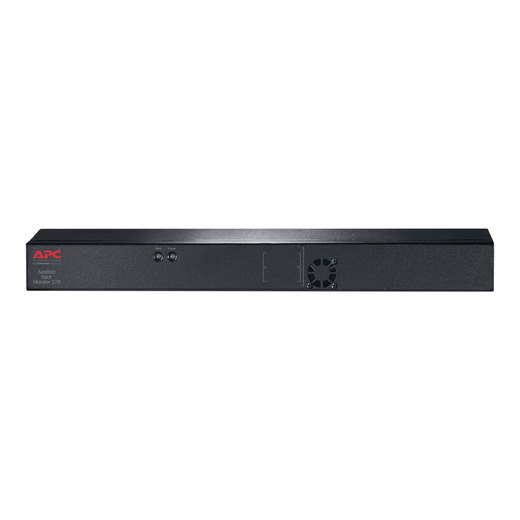

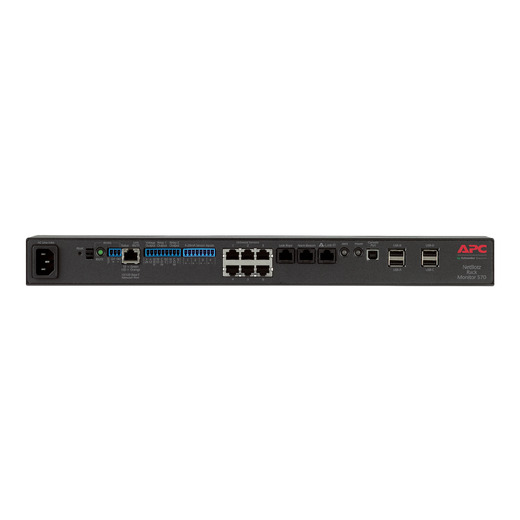

NetBotz Rack Monitor 570

NBRK0570

NetBotz Rack Monitor 570

Discontinued

Call Sales Support
800-800-4272

NBRK0570

NetBotz Rack Monitor 570

Customizable Input Contacts

Monitor conditions from external devices.
Customizable Output Relays

Control output from external devices via output relay(s).

NetBotz 500 Features & Benefits

Availability

Access monitoring

Detect access by unauthorized personnel via door switch.
Environmental monitoring

Prevent equipment failure from a full range of threatening environmental conditions.
Fault notification

Real-time event notification minimizes response times to critical physical infrastructure situations. Enables IT Administrators to reduce mean time to repair, improve efficiency, and maximize uptime.
Surveillance

Detect and record motion, allowing a visual record to be paired with an access or environmental alert, which speeds root cause analysis.

Manageability

Alerts View

Easily review and correlate alerts. Provide context to alerts by attaching video clips, graphs, and maps.
Enterprise management system compatible

Make device information available to your preferred enterprise management system by forwarding SNMP traps (events) across SNMPv1 and SNMPv3 using the PowerNet MIB
Integrates with StruxureWare Data Center Expert

An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
Advanced View client application

Robust appliance interface provides historic alerts, graphs, and configuration.

Total cost of Ownership

Event-driven video storage

Video storage prompted by motion or alert.
Browser Accessible

View the user interface with a browser. Provides quick access from anywhere on a secure network.

Agility

Customized escalation policies

Alerts are managed according to your escalation policies and received in multiple formats.
Adjustable threshold

Customize threshold definitions (multiple thresholds per sensor, scheduling, severity levels) to your requirements.

Product Distribution

United Arab Emirates , Afghanistan , Antigua & Barbuda , Anguilla , Albania , Armenia , Netherlands Antilles , Angola , Austria , Australia , Azerbaijan , Bosnia & Herzegovina , Barbados , Belgium , Burkina Faso , Bulgaria , Bahrain , Burundi , Benin , Bermuda , Bolivia , Brazil , Bahamas , Botswana , Belarus , Belize , Canada , Congo - Kinshasa , Switzerland , Côte d’Ivoire , Chile , Cameroon , China , Colombia , Costa Rica , Serbia and Montenegro , Cyprus , Czechia , Germany , Djibouti , Denmark , Dominica , Dominican Republic , Algeria , Ecuador , Estonia , Egypt , Eritrea , Spain , Ethiopia , Finland , Fiji , Gabon , Grenada , Georgia , French Guiana , Ghana , Gambia , Guadeloupe , Greece , Guatemala , Guyana , Hong Kong SAR China , Honduras , Croatia , Haiti , Hungary , Indonesia , Ireland , Israel , India , Iraq , Iceland , Italy , Jamaica , Jordan , Japan , Kenya , Cambodia , St. Kitts & Nevis , South Korea , Kuwait , Cayman Islands , Kazakhstan , Lebanon , St. Lucia , Liberia , Lithuania , Luxembourg , Latvia , Morocco , Madagascar , Mali , Myanmar (Burma) , Mongolia , Martinique , Mauritania , Malta , Mauritius , Malawi , Mexico , Malaysia , Mozambique , Namibia , Nigeria , Nicaragua , Netherlands , Norway , New Zealand , Oman , Panama , Peru , Philippines , Pakistan , Poland , Puerto Rico , Portugal , Paraguay , Réunion , Romania , Rwanda , Saudi Arabia , Sweden , Singapore , Slovenia , Slovakia , Sierra Leone , Senegal , Somalia , Suriname , El Salvador , Turks & Caicos Islands , Togo , Thailand , Tajikistan , Turkmenistan , Tunisia , Turkey , Trinidad & Tobago , Taiwan , Tanzania , Ukraine , Uganda , United States , Uruguay , Uzbekistan , St. Vincent & Grenadines , Venezuela , U.S. Virgin Islands , Vietnam , Yemen , Mayotte , South Africa , Zambia , Zimbabwe

Print Technical Specification

Input

Number of Power Cords
1
Input Power
51 Watts

Physical

Maximum Height
43MM , 4.3CM
Maximum Width
432MM , 43.2CM
Maximum Depth
93MM , 9.3CM
Rack Height
1U
Net Weight
1.74KG

Environmental

Operating Temperature
0 - 45 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0 - 3048meters
Storage Temperature
-15 - 65 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0 - 15240meters

Conformance

Approvals
AS/NZS 3548 (C-Tick) class A, CE, cUL listed, FCC part 15 class A, GOST, ICES-003, IRAM, low voltage directive 2006/95/EC, NOM, UL listed, VCCI class A, VDE
Standard warranty
2 years repair or replace

General

Camera Frame Rate
Up to 30 fps
Type of Camera Pods Supported
4 - 20 mA sensor,Camera pod 120,CCTV adapter pod 120,Rack sensor pod 150,Room sensor pod 155,Sensor pod 120
Camera Resolution
Up to 1280x1024
Type of External Sensors Supported
0-5V, Door contact, Dry contact, Fluid spot leak, Humidity, Smoke, Temperature, Vibration
Number of Universal Sensor Ports
6
Number of Sensor Pods Supported
12
Number of Universal Sensors Supported
72
Number of Cameras Supported
4 Networked, 4 USB
Video Source Input Signals
Analog CCTV cameras via USB CCTV adapter pod,NetBotz USB camera pod,NTSC camera,PAL camera,Pelco IP110-CHV9,Pelco IP3701H-2,Pelco IPSD4N-W0

Manuals and Warranties

Title

Size

Updated On

Title

NetBotz Basement Mounting Kit Installation

PDF

Size

548KB

Updated On

2024-04-19

Title

NetBotz 4.x BotzWare Release Notes

PDF

Size

242KB

Updated On

2024-02-29

Title

NetBotz Appliance Users Guide

PDF

Size

967KB

Updated On

2023-09-29

Title

NetBotz 4.x Security Handbook

PDF

Size

154KB

Updated On

2023-03-21

Title

NetBotz Rack Monitor 450/550/570 Installation and Quick Configuration Manual

PDF

Size

751KB

Updated On

2022-02-01

Includes physical description, inventory list, installation procedures, network configuration procedures, specifications, warranty details.

Brochure

Title

Size

Updated On

Title

NetBotz Wireless Sensors

PDF

Size

1606KB

Updated On

2024-09-09

A brochure highlighting the newest wireless offering in the NetBotz product line consisting of compact wireless temperature and humidity sensors and a USB coordinator to form wireless networks.

Design/Configuration

Title

Size

Updated On

Title

APC NetBotz Product Compatibility Chart

PDF

Size

347KB

Updated On

2023-05-25

Overview of NetBotz appliances, sensors, cables, software, support and management compatibility.

Agency Approvals

Title

Size

Updated On

Title

EU Declaration of Conformity NBRK0250, NBRK0570, NBRK0750

PDF

Size

239KB

Updated On

2024-02-22

Title

Korean Certification for NetBotz Rack Monitor NBRK0570

PDF

Size

336KB

Updated On

2024-02-22

Market entry for Korea

Title

German Certification for NetBotz Rack Monitor NBRK0570

PDF

Size

983KB

Updated On

2024-02-22

Germany market entry

Title

NetBotz China CCC Exemption Certificate

PDF

Size

360KB

Updated On

2024-02-22

CCC Exemption

Title

Russian Certification for NetBotz Rack Monitor NBRK0570

PDF

Size

467KB

Updated On

2024-02-22

Russian market entry

Title

MOROCCO DECLARATION NBRK SERIES

PDF

Size

238KB

Updated On

2024-02-22

Title

Confirmation Letter for Products Outside the scope of China Certificate

PDF

Size

694KB

Updated On

2024-02-21

Title

UKCA Declaration of Conformity_NetBotz Appliances NBRK0XXX Series

PDF

Size

677KB

Updated On

2022-10-07

Title

NBRK0250, NBRK0570, NBRK0750 CB CERTIFICATE

PDF

Size

162KB

Updated On

2022-10-07

CB CERTIFICATE NBRK_62368

Title

NBRK0250 UL Certificate of Compliance

PDF

Size

453KB

Updated On

2022-10-07

NBRK0250, NBRK0570, NBRK0750 UL Certificate of Compliance_62368

Title

Size

Updated On

Firmware Upgrades

Data Center Expert

Part Number

Updated On

Data Center Expert

Surveillance, Software License, NetBotz, 5 Node

Compatible With: Windows 2000 , WinNT/Intel

Part Number

NBSV1005

Updated On

2002-01-15

Data Center Expert

Surveillance, Software License, NetBotz, 25 Node

Compatible With: Windows 2000 , WinNT/Intel

Part Number

NBSV1025

Updated On

2002-01-15

Data Center Expert

Surveillance, Software License, NetBotz, 15 Node

Compatible With: Windows 2000 , WinNT/Intel

Part Number

NBSV1000

Updated On

2002-01-15

Data Center Expert

Surveillance, Software License, NetBotz, 10 Node

Compatible With: Windows 2000 , WinNT/Intel

Part Number

NBSV1010

Updated On

2002-01-15

Software for NetBotz Appliances

Part Number

Updated On

Software for NetBotz Appliances

Device Monitoring, Software License, NetBotz, 5 Node

Compatible With: Windows 2000 , WinNT/Intel

Part Number

NBWN0006

Updated On

2002-01-15

Software for NetBotz Appliances

Advanced, Software License, NetBotz, Pack 1

Compatible With: Windows 2000 , WinNT/Intel

Part Number

NBWN0005

Updated On

2002-01-15

Wired, Sensor, NetBotz, Leak Rope, 20 ft

Provides early detection of fluid in your data center or network closet along the entire length. Compatible with select NetBotz appliances.

NBES0308

Wired, Sensor, NetBotz, Smoke Detection, 10 ft

Universal Sensor that detects smoke in IT spaces. This sensor supplements the existing life safety system already in place.

NBES0307

Wired, Sensor, NetBotz, Leak Rope Extension, 20 ft

Extend the length of your rope leak sensor to ensure proper leak detection coverage in your data center or network closet. Requires NBES0308.

NBES0309

Wired, Sensor, NetBotz, Dry Contact Cable, 15 ft

Universal Sensor that monitors third-party dry contact state sensors.

NBES0304

Wired, Sensor, NetBotz, 2 Door Switch Sensor

Universal Sensor that monitors access to NetShelter SX Enclosures.

NBES0303

Wired, Accessory, NetBotz, Alarm Beacon, Visual

Quickly notify personnel of critical situations with a visible alarm signal. Compatible with select NetBotz appliances.

AP9324

APC Temperature & Humidity Sensor

This Temperature & Humidity Sensor is a Universal sensor that monitors temperature and humidity in your Data Center or Network Closet. IT has an RJ-45 connector. The cord length is 3.9m.

AP9335TH
