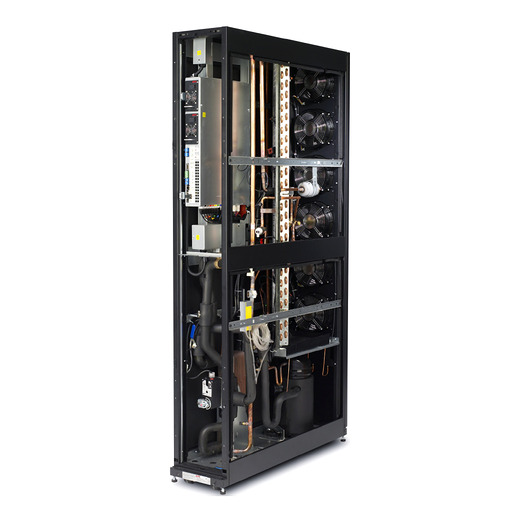

InRow RD, 300mm, Fluid Cooled, 208-230V, 60Hz

Share:
InRow RD, 300mm, Fluid Cooled, 208-230V, 60Hz InRow RD, 300mm, Fluid Cooled, 208-230V, 60Hz InRow RD, 300mm, Fluid Cooled, 208-230V, 60Hz
InRow RD, 300mm, Fluid Cooled, 208-230V, 60Hz

InRow RD, 300mm, Fluid Cooled, 208-230V, 60Hz

ACRD200

InRow RD, 300mm, Fluid Cooled, 208-230V, 60Hz

null

Call for More Information
800-800-4272
Includes: Installation guide,Operations and maintenance manual

ACRD200

InRow RD, 300mm, Fluid Cooled, 208-230V, 60Hz

  • Containment system compatible
    The unit can be combined with a Rack or Hot Aisle Containment System to eliminate hot air mixing and maximize cooling efficiency
  • Head pressure control
    Modulates refrigerant head pressure to protect from coil freeze.
  • Washable filters
    Easy to maintain, cleanable, deep loading mesh filter removes particles from the return air stream.

Uniflair Direct Expansion InRow Cooling Features & Benefits

  • Rack inlet temperature control
    Reduces the risk of hot spots at the rack level
  • Predictable cooling
    Placing the unit in the row of racks moves the source of cooling closer to the heat load. This eliminates air mixing and provides a predictable cooling architecture.
  • Active response controls
    Monitors and actively adjusts cooling capacity to ensure proper server inlet temperatures. Through the microprocessor controller, visibility into the operation and health of the unit is provided.
  • Modular design
    Modular design provides scalable solutions to add cooling as demand increases.
  • Scalable densities
    Allows for higher densities to be achieved by integrating containment with room, row and rack cooling system architectures.
  • Easy service access
    Allows for all serviceable components to be replaced/maintained by easily accessible panels/doors.
  • Real-Time capacity monitoring
    Real-time display of current and available cooling.
  • Microprocessor controller
    Utilizes intelligent, active response control, and real-time monitoring. The system is controlled by a microprocessor providing high level control functionality and human interface via a four line, eighty character, alphanumeric display
  • Building management system integration
    Send alarms and data points allowing you to manage critical building infrastructure from a single system.
  • Variable speed fans
    Variable speed fans reduce energy consumption during off-peak cooling periods.
  • Row-based architecture
    Captures hot exhaust air directly from the IT equipment, thereby increasing the unit's sensible cooling capacity over traditional cooling architectures.
Product Distribution
Product Distribution

Bermuda , Dominican Republic , Ecuador , Guatemala , Honduras , Cayman Islands , Nicaragua , Panama , Puerto Rico , El Salvador , Trinidad & Tobago , Venezuela

Print Technical Specification

Input

  • Input frequency
    60 Hz
  • Input Power
    4600 Watts

Communications & Management

  • Control panel
    Multifunction LCD status and control console

Physical

  • Maximum Height
    1991MM , 199.1CM
  • Maximum Width
    300MM , 30.0CM
  • Maximum Depth
    1070MM , 107.0CM
  • Rack Height
    42U
  • Net Weight
    199.09KG
  • Shipping weight
    237.27KG
  • Shipping Height
    2118MM , 211.8CM
  • Shipping Width
    1137MM , 113.7CM
  • Shipping Depth
    746MM , 74.6CM
  • Color
    Black
  • Units per Pallet
    1.0

Conformance

  • Approvals
    C-Tick, CE, cUL listed, UL listed
  • Standard warranty
    1 year (parts only), 1 year on-site repair or replace with factory authorized Start-Up

General

  • Air Discharge Patterns
    Horizontal
  • Air Flow
    1080.8lps
  • Compressor Type
    Scroll
  • Intake Air
    Rear return
  • Refrigerant Charge
    2.3pounds
  • Return Diameter
    123.0MM
