Fluid Cooler 135MBH@25TD, 30 GPM, 16 Feeds, 460/3/60

Share:

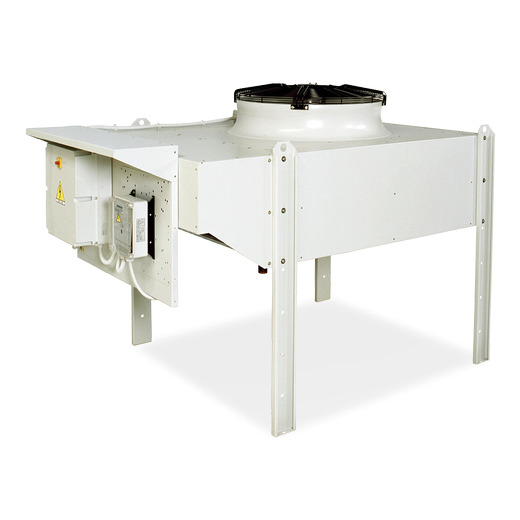

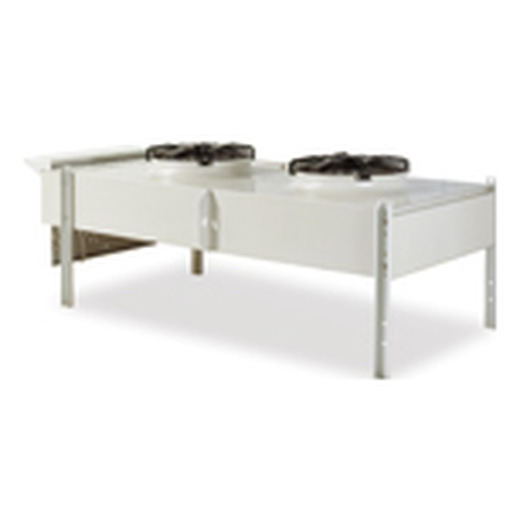

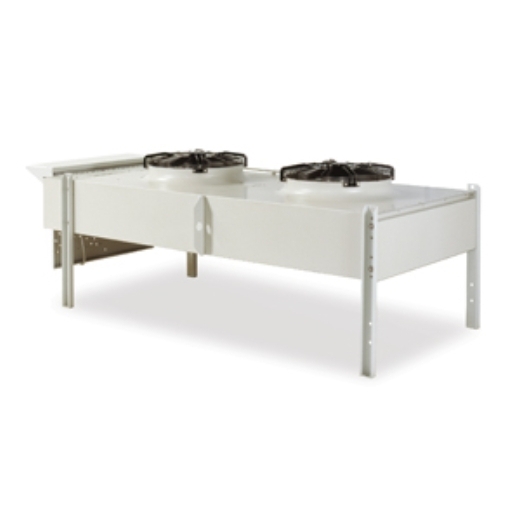

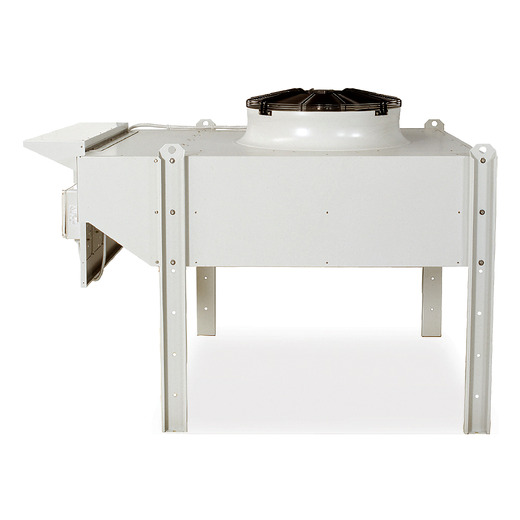

Fluid Cooler 135MBH@25TD, 30 GPM, 16 Feeds, 460/3/60

Fluid Cooler 135MBH@25TD, 30 GPM, 16 Feeds, 460/3/60

ACFC75210

Fluid Cooler 135MBH@25TD, 30 GPM, 16 Feeds, 460/3/60

null

Call for More Information
800-800-4272
Includes: Installation guide

ACFC75210

Fluid Cooler 135MBH@25TD, 30 GPM, 16 Feeds, 460/3/60

  • Direct drive motors
    Stress on bearings is nearly eliminated, increasing useful life. Allows integral fan/motor assembly to be factory balanced, which lowers vibration and expedites startup.

Uniflair Fluid Coolers Features & Benefits

  • Variable speed fans
    Variable speed fans reduce energy consumption during off-peak cooling periods.
  • Direct drive motors
    Stress on bearings is nearly eliminated, increasing useful life. Allows integral fan/motor assembly to be factory balanced, which lowers vibration and expedites startup.
Product Distribution
Product Distribution

Belgium , Canada , Germany , Italy , South Korea , Morocco , Netherlands , United States

Print Technical Specification

Input

  • Input frequency
    60 Hz
  • Number of Power Cords
    1
  • Input Power
    1100 Watts

Physical

  • Maximum Height
    958MM , 95.8CM
  • Maximum Width
    1270MM , 127.0CM
  • Maximum Depth
    1080MM , 108.0CM
  • Net Weight
    204.56KG
  • Shipping weight
    172.74KG
  • Shipping Height
    1422MM , 142.2CM
  • Shipping Width
    762MM , 76.2CM
  • Shipping Depth
    1346MM , 134.6CM
  • Units per Pallet
    1.0

Conformance

  • Approvals
    cUL listed, UL listed
  • Standard warranty
    1 year (parts only)

Sustainable Offer Status

  • Proposition 65 Warning
    Available in Documentation tab

General

  • Air Flow
    4766.7lps
Manuals and Warranties
Title
Size
Updated On

Title

InRow DX 10kW Fluid Cooled Installation
PDF
PDF

Size

2782KB

Updated On

2023-10-04

Title

Condenser Installation
PDF
PDF

Size

1706KB

Updated On

2023-09-29

Design/Configuration
Title
Size
Updated On

Title

InRow DX Gen 2 Technical Specifications
PDF
PDF

Size

4470KB

Updated On

2017-06-14

InRow DX Gen 2 Technical Specifications
Title
Size
Updated On
Cooling Solutions, Chillers & Heat Rejection, Fluid Cooler
ACFC75255 & 75210 - Fluid cooler, Single Circuit,480V,3PH,60Hz
CAD Source File
446KB
2023-10-04

ACFC75255 & 75210 - Fluid cooler, Single Circuit,480V,3PH,60Hz
PDF
206KB
2023-10-04
