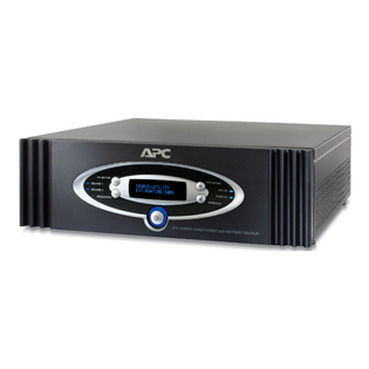

APC AV Black 1.5kVA S Type Power Conditioner with Battery Backup 120V
S15BLK
Discontinued on:16 July 2021
To be end-of-service on:30 June 2025
Replacement battery (1) is available
Energy Efficient
Energy efficient product helping our customers achieving their carbon reduction goals while saving energy costs. Energy efficiency of this Product is at least 10% higher than market average.
Energy EfficientEnergy Efficient
Energy efficient product helping our customers achieving their carbon reduction goals while saving energy costs. Energy efficiency of this Product is at least 10% higher than market average.
Energy Efficient
Specifications
| Lead time | Usually in Stock |
|---|
Run time for load WEnter the total load (power draw) of all devices that will be protected by the UPS. This will be used to estimate the run time of your devices during a total power outage. Adding run time increases availability by allowing the system to operate through longer outages without shutting down. Min-max: 100-1000 W | |
|---|---|
Max. Capacity Used The maximum percentage of UPS capacity used to support your specified load. | |
| Main Input Voltage | 120 V |
| Main Output Voltage | 120 V |
| Kw Rating | 1000 W |
| Rated power in VA | 1440 VA |
| Input Connection Type | NEMA 5-15P |
| output connection type | 12 NEMA 5-15R |
| Number of rack unit | 3U |
| Cable length | 10 ft (3.05 m) |
| Number of cables | 1 |
| Battery Type | Lead-Acid battery |
| Provided equipment | Battery modules ship installed Cat 6 Ethernet cable CD with software Rack Mounting brackets Rack Mounting support rails Removable heavy duty 12 gauge input power cord Removable support feet User Manual USB cable |
| Color | Black |
|---|---|
| Height | 5.24 in (13.3 cm) |
| Width | 17.01 in (43.2 cm) |
| Depth | 19.02 in (48.3 cm) |
| Net Weight | 62.13 lb(US) (28.18 kg) |
| Mounting Location | Front |
| Mounting preference | Lower |
| Mounting Mode | Rack-mounted |
| Two post mountable | 0 |
| USB compatible | Yes |
| Input Frequency | 50/60 Hz +/- 3 Hz auto-sensing |
|---|---|
| Efficiency at full load | 90...140 V |
| Maximum Input Current per Phase | 12 A |
| Max Configurable Power (Watts) | 1000 W |
|---|---|
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Topology | Line Interactive |
| Waveform Type | Sine wave |
| Product Certifications | CSA |
|---|---|
| Standards | FCC Part 15 class B UL 1778 |
| Equipment protection policy | Unlimited Lifetime |
| Ambient Air Temperature for Operation | 32…104 °F (0…40 °C) |
|---|---|
| Relative Humidity | 5…95 % |
| Operating altitude | 0...10000 ft |
| Ambient Air Temperature for Storage | 5…113 °F (-15…45 °C) |
| Storage Relative Humidity | 5…95 % |
| Storage altitude | 0…50000 ft (0.00…15240.00 m) |
| Acoustic level | 46 dBA |
| Run Time | View Runtime Graph |
|---|---|
| Efficiency | View Efficiency Graph |
| Included Battery Modules | 1 |
| Battery Slots Empty | 0 |
| Typical recharge time | 8 h |
| RBC Quantity | 1 |
| Replacement battery | RBC63 |
| Control panel | Multi-function LCD status and control console |
|---|---|
| Audible Alarm | Audible and visible alarms : configurable delays |
| Surge energy rating | 4080 J |
|---|---|
| Filtering | Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : m |
| Data line protection | RJ45 Modem/Fax/DSL protection (four wire dual line) RJ45 10/100 Base-T Ethernet protection Cable modem/video protection Co-axial Video / Cable protection Coaxial 2-Way splitter with protection |
| GTIN | 731304235682 |
|---|
| Unit Type of Package 1 | Db |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.19 in (33.5 cm) |
| Package 1 Width | 23.39 in (59.4 cm) |
| Package 1 Length | 20.20 in (51.3 cm) |
| Package 1 Weight | 76.17 lb(US) (34.55 kg) |
| Number of Units in Package 2 | 1 |
| Number of Units in Package 3 | 12 |
| SCC14 | 107313040 |
| Warranty | 2 years repair or replace |
|---|
Sustainability
Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance.
Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products.
Learn moreResource performance
Energy efficient product
EU RoHS Directive
Compliant
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
