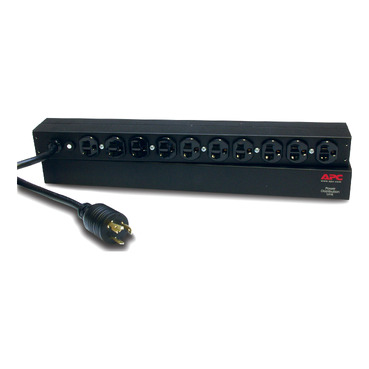

Rack PDU, Basic, 1U, 20A, 120V, (10)5-20; L5-20P
AP9564
Energy Efficient
Energy efficient product helping our customers achieving their carbon reduction goals while saving energy costs. Energy efficiency of this Product is at least 10% higher than market average.
Energy EfficientTake-back
The product has been authorized to be included in a Schneider Electric take-back scenario.
Take-backRoHS/REACh
Compliant with RoHS/REACh regulations
RoHS/REAChEnergy Efficient
Energy efficient product helping our customers achieving their carbon reduction goals while saving energy costs. Energy efficiency of this Product is at least 10% higher than market average.
Energy EfficientTake-back
The product has been authorized to be included in a Schneider Electric take-back scenario.
Take-backRoHS/REACh
Compliant with RoHS/REACh regulations
RoHS/REACh
Specifications
| Lead time | Usually in Stock |
|---|
| Main Input Voltage | 100 V 120 V |
|---|---|
| PDU Type | Basic |
| Main Output Voltage | 120 V |
| Input Connection Type | NEMA L5-20P |
| Number of rack unit | 1U |
| Cable length | 12 ft (3.66 m) |
| Number of cables | 1 |
| Provided Equipment | Installation guide Rack Mounting brackets |
| Color | Black |
|---|---|
| Height | 1.73 in (4.4 cm) |
| Width | 17.60 in (44.7 cm) |
| Depth | 2.24 in (5.7 cm) |
| Net Weight | 5.51 lb(US) (2.5 kg) |
| Mounting Location | Front Rear |
| Mounting preference | No preference |
| Mounting Mode | Rack-mounted |
| Line Rated Current | 16 A |
|---|---|
| Input current limits | 20 A |
| Load Capacity | 1920 VA |
| Input Frequency | 50/60 Hz |
| Number of power socket outlets | 10 NEMA 5-20R |
|---|
| Product Certifications | cUL Listed UL Listed |
|---|
| Ambient Air Temperature for Operation | 23…113 °F (-5…45 °C) |
|---|---|
| Relative Humidity | 0…95 % |
| Operating altitude | 0...10000 ft |
| Ambient Air Temperature for Storage | -13…149 °F (-25…65 °C) |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…50000 ft (0.00…15240.00 m) |
| Category | 11309-APC RESALE PRODUCTS |
|---|---|
| Discount Schedule | APC1 |
| GTIN | 731304203872 |
| Returnability | No |
| Country of origin | IN |
| Unit Type of Package 1 | Db |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.76 in (7 cm) |
| Package 1 Width | 9.02 in (22.9 cm) |
| Package 1 Length | 18.27 in (46.4 cm) |
| Package 1 Weight | 8.02 lb(US) (3.64 kg) |
| Warranty | 2 years repair or replace |
|---|
Sustainability
Resource performance
Energy efficient product
Take-back program available
Well-being performance
Lead free
Certifications & Standards
REACh Regulation
EU RoHS Directive
