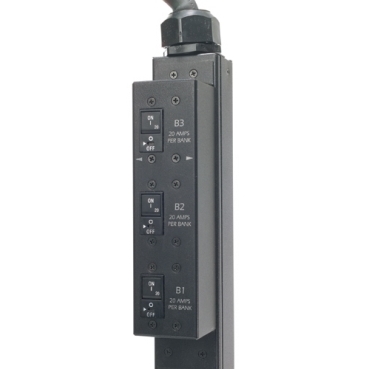

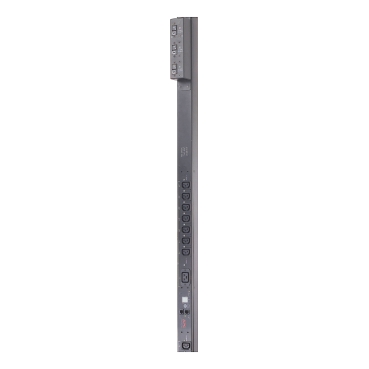

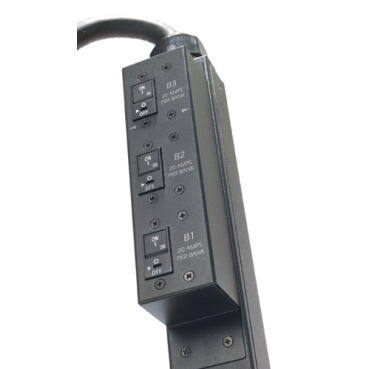

Rack PDU,Switched,ZeroU,12.5kW,208V,(21)C13&(3)C19;3' Cord
AP7968B
Energy Efficient
Energy efficient product helping our customers achieving their carbon reduction goals while saving energy costs. Energy efficiency of this Product is at least 10% higher than market average.
Energy EfficientTake-back
The product has been authorized to be included in a Schneider Electric take-back scenario.
Take-backTransparency
Assessment of the product environmental impacts along its life-cycle and availability of the data through a Product Environmental Profile.
TransparencyRoHS/REACh
Compliant with RoHS/REACh regulations
RoHS/REAChEnergy Efficient
Energy efficient product helping our customers achieving their carbon reduction goals while saving energy costs. Energy efficiency of this Product is at least 10% higher than market average.
Energy EfficientTake-back
The product has been authorized to be included in a Schneider Electric take-back scenario.
Take-backTransparency
Assessment of the product environmental impacts along its life-cycle and availability of the data through a Product Environmental Profile.
TransparencyRoHS/REACh
Compliant with RoHS/REACh regulations
RoHS/REACh
Compatible Software
Specifications
| Lead time | Usually in Stock |
|---|
| Main Input Voltage | 208 V 3 phase |
|---|---|
| PDU Type | Switched |
| Main Output Voltage | 208 V |
| Number of rack unit | 0U |
| Cable length | 3 ft (0.91 m) |
| Number of cables | 1 |
| Provided Equipment | Cord retention bracket(s) Documentation CD Installation guide Rack Mounting brackets RS-232 configuration cable Toolless Mounting Kit |
| Color | Black |
|---|---|
| Height | 70.00 in (177.8 cm) |
| Width | 2.20 in (5.6 cm) |
| Depth | 3.50 in (8.9 cm) |
| Net Weight | 17.81 lb(US) (8.08 kg) |
| Mounting Location | Side |
| Mounting preference | No preference |
| Mounting Mode | Rack-mounted |
| Max line current | 35 A |
|---|---|
| Input current limits | 35 A |
| Load Capacity | 12500 VA |
| Input Frequency | 50/60 Hz |
| Number of input connectors | 1 CS8365 |
| Number of power socket outlets | 21 IEC 60320 C13 3 IEC 60320 C19 |
|---|
| Product Certifications | cUL Listed CSA Industry Canada UL Listed |
|---|---|
| Standards | FCC Part 15 class A ICES-003 UL 60950 |
| Ambient Air Temperature for Operation | 23…113 °F (-5…45 °C) |
|---|---|
| Relative Humidity | 5…95 % |
| Operating altitude | 0...10000 ft |
| Ambient Air Temperature for Storage | -13…149 °F (-25…65 °C) |
| Storage Relative Humidity | 5…95 % |
| Storage altitude | 0…50000 ft (0.00…15240.00 m) |
| GTIN | 731304331650 |
|---|
| Unit Type of Package 1 | Db |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 82.99 in (210.8 cm) |
| Package 1 Width | 5.00 in (12.7 cm) |
| Package 1 Length | 5.98 in (15.2 cm) |
| Package 1 Weight | 24.34 lb(US) (11.04 kg) |
| Warranty | 2 years repair or replace |
|---|
