AP4421

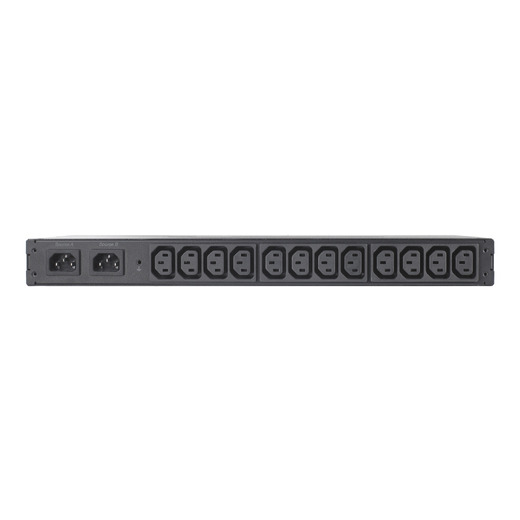

RACK ATS, 230V, 10A, C14 IN, (12) C13 OUT

The APC Rack Automatic Transfer Switch (ATS) is a high availability switch that provides redundant power to connected equipment and has two input power cords, one for each AC source. The output configuration is (12) IEC 60320 C13 The Rack ATS supplies power to the connected load from a primary AC source. If that primary source becomes unavailable, the Rack ATS automatically transfers loads to the secondary source. The transfer time from one source to the other is seamless to the connected equipment, as the switching occurs safely between the two input sources regardless of any phase differences. The units have built-in network connectivity, which allows for remote management through Web, SNMP, SHH, Telnet, or StruxureWare™ Data Center Expert. With multiple outlets, several devices can be plugged directly into the Rack ATS without the need for an additional Rack PDU. Current monitoring and alarms help prevent downtime to the equipment by providing aggregate current measurements and warnings when power consumption draws near the maximum rating of the Rack ATS. Built-in network and local interfaces allow for custom configuration settings for added flexibility.

Includes : Mounting hardware , Rack mounting brackets , Serial configuration cable

• 10 kAIC Overcurrent Protection
  Provides protection in the event of a significant overcurrent event.
• Command line interface
  Offers simultaneous remote management access through Telnet and SSH
• Current Monitoring
  Monitors the aggregate current draw per power distribution unit.
• Cyber security
  A cyber-secure connection provides improved security for your infrastructure devices, and machine data forms the basis of operational insights and analytics, aimed at reducing equipment maintenance costs.
• LCD display
  Manage the UPS locally through a text-based display that allows quick diagnosis via stored alarm conditions and events.
• Quick Transfer Rate
  Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
• Remote Management Capabilities
  Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
• RoHS
  Certifies that electronic devices don't contain hazardous metals and flame retardants
• StruxureWare Data Center Expert compatible
  Enables centralized management via StruxureWare Data Center Expert.

NetShelter Rack Transfer Switches Features & Benefits
