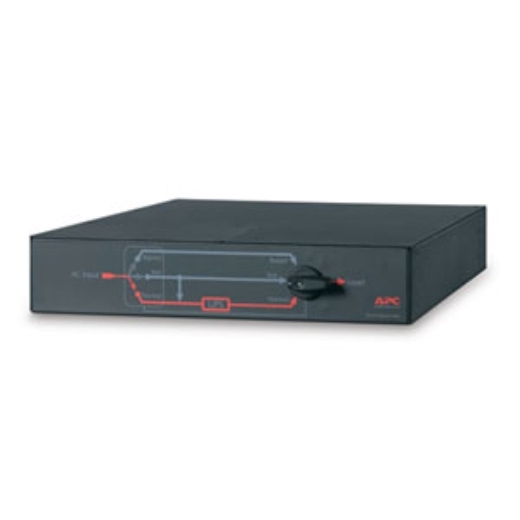

APC Service Bypass Panel- 230V, 32A, BBM, IEC320 C20/HW input, IEC-320 Output- (2) C19 (8) C13

Share:
APC Service Bypass Panel- 230V, 32A, BBM, IEC320 C20/HW input, IEC-320 Output- (2) C19 (8) C13

APC Service Bypass Panel- 230V, 32A, BBM, IEC320 C20/HW input, IEC-320 Output- (2) C19 (8) C13

SBP5000RMI2U

In stock
£620.40
Price inclusive of VAT
Call for More Information
0800 2799254

SBP5000RMI2U

APC Service Bypass Panel- 230V, 32A, BBM, IEC320 C20/HW input, IEC-320 Output- (2) C19 (8) C13

Extremely reliable service bypass panels designed for APC Smart-UPS and Symmetra UPS products.

Includes : Hardwire panel , Installation guide , Rack mounting brackets , User manual , Wall mounting brackets

  • Wrap Around System Bypass
    (3) Breaker maintenance bypass panel to isolate the UPS from the critical load

Maintenance Bypass Panels Features & Benefits

Product Distribution
Product Distribution

United Arab Emirates , Afghanistan , Antigua & Barbuda , Albania , Armenia , Angola , Argentina , Austria , Australia , Azerbaijan , Bosnia & Herzegovina , Belgium , Burkina Faso , Bulgaria , Bahrain , Burundi , Benin , Bolivia , Brazil , Botswana , Belarus , Congo - Kinshasa , Switzerland , Côte d’Ivoire , Chile , Cameroon , China , Serbia and Montenegro , Cyprus , Czechia , Germany , Djibouti , Denmark , Dominica , Algeria , Estonia , Egypt , Eritrea , Spain , Ethiopia , Finland , Fiji , France , Gabon , United Kingdom , Grenada , Georgia , French Guiana , Ghana , Gambia , Guadeloupe , Greece , Hong Kong SAR China , Croatia , Hungary , Indonesia , Ireland , Israel , India , Iraq , Iceland , Italy , Jordan , Kenya , Cambodia , St. Kitts & Nevis , South Korea , Kuwait , Kazakhstan , Lebanon , St. Lucia , Liberia , Lithuania , Luxembourg , Latvia , Morocco , Madagascar , North Macedonia , Mali , Myanmar (Burma) , Mongolia , Martinique , Mauritania , Malta , Mauritius , Malawi , Malaysia , Mozambique , Namibia , Nigeria , Netherlands , Norway , New Zealand , Oman , Peru , Philippines , Pakistan , Poland , Portugal , Paraguay , Réunion , Romania , Rwanda , Saudi Arabia , Sweden , Singapore , Slovenia , Slovakia , Sierra Leone , Senegal , Somalia , Suriname , Turks & Caicos Islands , Togo , Thailand , Tajikistan , Turkmenistan , Tunisia , Turkey , Tanzania , Ukraine , Uganda , Uruguay , Uzbekistan , St. Vincent & Grenadines , Vietnam , Yemen , Mayotte , South Africa , Zambia , Zimbabwe

Print Technical Specification

Output

  • Nominal Output Voltage
    230V
  • Efficiency at Full Load
    99 % %
  • Overload Protection
    Yes
  • Maximum Total Current Draw
    32

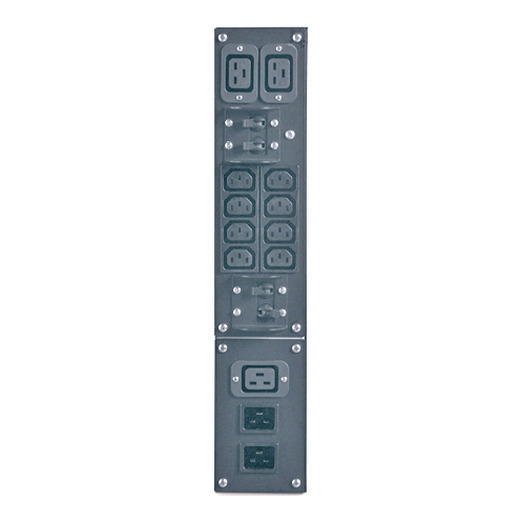

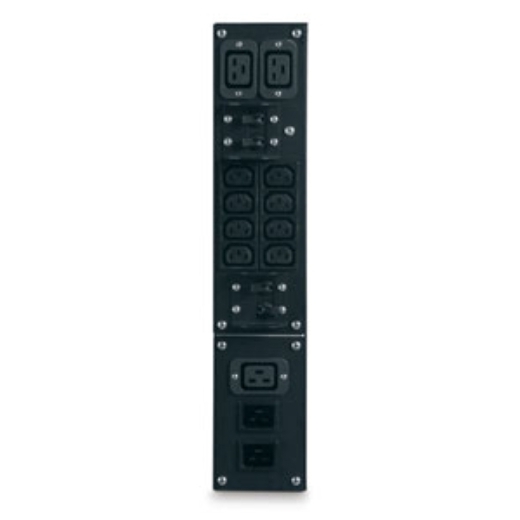

  • Output Connections
    (2) IEC 60320 C19 (Battery Backup)
    (8) IEC 60320 C13 (Battery Backup)

Input

  • Nominal Input Voltage
    230V
  • Input frequency
    50/60 Hz
  • Input Connections
    Hard wire 3-wire (1P + N + E), IEC 60320 C20
  • Number of Power Cords
    1
  • Efficiency at Full Load
    99 % %
  • Load Power Factor Range
    0 to 1
  • Load Capacity
    7680VA
  • Maximum Input Current
    32A
  • Maximum Line Current
    32A

Physical

  • Maximum Height
    89MM , 8.9CM
  • Maximum Width
    432MM , 43.2CM
  • Maximum Depth
    660MM , 66.0CM
  • Rack Height
    2U
  • Net Weight
    11.36KG
  • Shipping weight
    23.18KG
  • Shipping Height
    203MM , 20.3CM
  • Shipping Width
    610MM , 61.0CM
  • Shipping Depth
    991MM , 99.1CM
  • Color
    Black

Environmental

  • Operating Temperature
    -20 - 50 °C
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0 - 4572meters
  • Storage Temperature
    -25 - 65 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0 - 15240meters

Conformance

  • Approvals
    CSA, GOST
  • Standard warranty
    2 years (parts only)
Manuals and Warranties
Title
Size
Updated On

Title

Service Bypass Panel 3/5/6/10/16 KVA
PDF
PDF

Size

539KB

Updated On

2022-08-09

Agency Approvals
Title
Size
Updated On

Title

VDE CB Certificate SBP3000
PDF
PDF

Size

92KB

Updated On

2024-02-22

VDE Certificate as per standard IEC IEC 62040-1:2017 & IEC 62040-1:2017/AMD1:2021

Title

EU_DoC_SBP_Series
PDF
PDF

Size

174KB

Updated On

2024-02-22

EU_DoC_SBP_Series_SBP3000_SBP5000RMI2U_SBP5000RMI2U_HW_SBP6KRMI2U_SBP10KRMI4U_SBP16KRMI4U_SBP16KP
