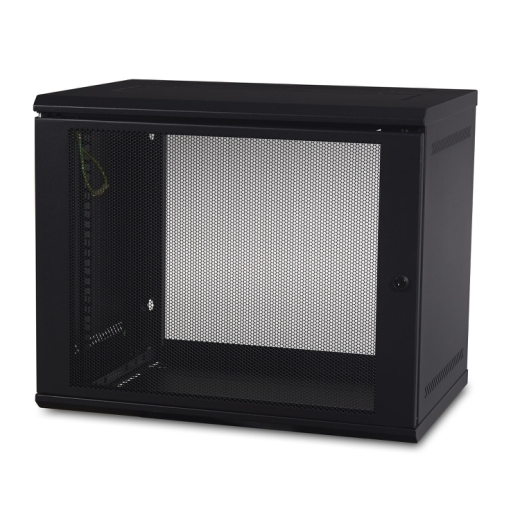

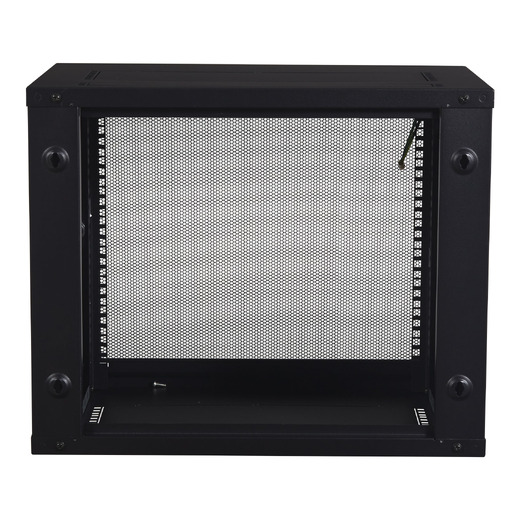

APC NetShelter 9U Wallmount Rack Cabinet Single Hinged Switch Depth Unassembled

APC NetShelter 9U Wallmount Rack Cabinet Single Hinged Switch Depth Unassembled

AR109

In stock
£311.99
Price inclusive of VAT

AR109

APC NetShelter 9U Wallmount Rack Cabinet Single Hinged Switch Depth Unassembled

Ideal for retail, healthcare, and educational facilities, the wall rack offers an efficient solution for deploying server and networking equipment for edge computing applications. For areas with limited floor space. Designed to house your server, as well as network solutions such as network switches and patch panels. Rack is packaged unassembled for smaller storage and delivery and takes up 60% less space than the assembled. The door is reversible allowing for the door to open direction desired to avoid interference with its surroundings. Optional 120V fan tray can be top or bottom mounted (sold separately). Top and bottom feature knockouts of 1U or 2U mounting space for accessories. Several APC Smart-UPS models low-profile provide easy UPS integration and mounting. 9U Wall mount cabinet, 8.9 to 12.9 inches mounting depth, 200lb weight capacity, 19" rack width, ships unassembled, 5 year APC warranty.

  • Flat pack unassembled wall box
    Wallbox ships unassembled making it easy to transport and feasible to store.
  • Wallbox cable and accessory integration
    The bottom and roof of the Wallbox has easy to remove knock outs. This knocks can be used for cable exits or to install a 1U accessory such as a fan or patch panel.
  • Wallbox Easy Installation
    The Wallbox is designed for quick and easy assembly and includes a template for mounting to a wall.
  • Wallbox Sizes
    Unassembled wall-mount enclosures are available in three sizes, 6U, 9U and 12U to accomdate a variety of needs.

NetShelter Wall-mount Enclosures Features & Benefits

  • Vendor-neutral EIA-310 19in Rack Mounting Compatibility Guaranteed
    Vendor-neutral mounting for guaranteed compatibility with all EIA-310 compliant 19" equipment. The "Fits Like a Glove" money back guarantee provides peace of mind that all of your EIA-310-E compliant rack-mount equipment will physically fit in a NetShelter.

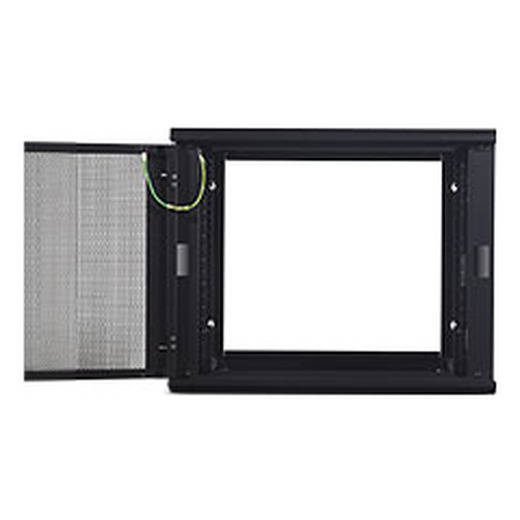

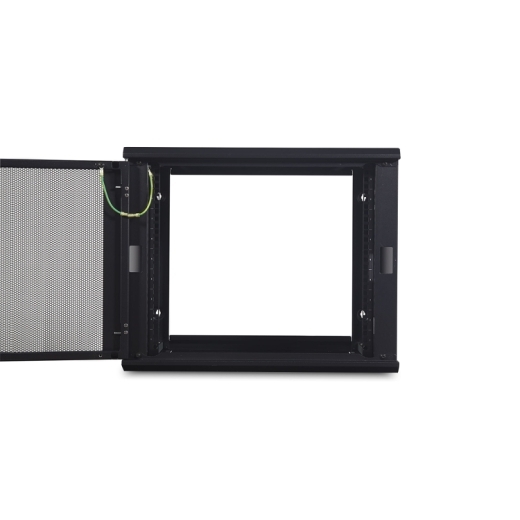

  • Reversible Door
    Wallbox door can be reversed to suit the space its installed.
  • Wallbox cable and accessory integration
    The bottom and roof of the Wallbox has easy to remove knock outs. This knocks can be used for cable exits or to install a 1U accessory such as a fan or patch panel.
  • Ventilated
    Ensures uniform delivery of cool air to installed IT equipment.
Product Distribution
Product Distribution

United Arab Emirates , Afghanistan , Antigua & Barbuda , Anguilla , Albania , Armenia , Netherlands Antilles , Angola , Argentina , Austria , Australia , Azerbaijan , Barbados , Belgium , Burkina Faso , Bulgaria , Bahrain , Burundi , Benin , Bermuda , Bolivia , Bahamas , Botswana , Belarus , Belize , Canada , Congo - Kinshasa , Switzerland , Côte d’Ivoire , Chile , Cameroon , Colombia , Costa Rica , Serbia and Montenegro , Cyprus , Czechia , Germany , Djibouti , Denmark , Dominica , Dominican Republic , Algeria , Ecuador , Estonia , Egypt , Eritrea , Spain , Ethiopia , Finland , Fiji , France , Gabon , United Kingdom , Grenada , Georgia , French Guiana , Ghana , Gambia , Guadeloupe , Greece , Guatemala , Guyana , Hong Kong SAR China , Honduras , Croatia , Haiti , Hungary , Indonesia , Ireland , Israel , India , Iraq , Iceland , Italy , Jamaica , Jordan , Kenya , Cambodia , St. Kitts & Nevis , South Korea , Kuwait , Cayman Islands , Lebanon , St. Lucia , Liberia , Lithuania , Luxembourg , Latvia , Morocco , Madagascar , North Macedonia , Mali , Myanmar (Burma) , Mongolia , Martinique , Mauritania , Malta , Mauritius , Malawi , Mexico , Malaysia , Mozambique , Namibia , Nigeria , Nicaragua , Netherlands , Norway , New Zealand , Oman , Panama , Peru , Philippines , Pakistan , Puerto Rico , Portugal , Paraguay , Qatar , Réunion , Romania , Rwanda , Saudi Arabia , Sweden , Singapore , Slovenia , Slovakia , Sierra Leone , Senegal , Somalia , Suriname , El Salvador , Turks & Caicos Islands , Togo , Thailand , Tajikistan , Turkmenistan , Tunisia , Turkey , Trinidad & Tobago , Taiwan , Tanzania , Ukraine , Uganda , United States , Uruguay , St. Vincent & Grenadines , Venezuela , U.S. Virgin Islands , Vietnam , Yemen , Mayotte , South Africa , Zambia , Zimbabwe

Print Technical Specification

Physical

  • Maximum Height
    485MM , 48.5CM
  • Maximum Width
    599MM , 59.9CM
  • Maximum Depth
    400MM , 40.0CM
  • Rack Height
    9U
  • Net Weight
    12.7KG
  • Shipping weight
    16.01KG
  • Shipping Height
    293MM , 29.3CM
  • Shipping Width
    485MM , 48.5CM
  • Shipping Depth
    688MM , 68.8CM
  • Color
    Black
  • Maximum Mounting Depth
    329.0MM , 32.89CM
  • Minimum Mounting Depth
    226.0MM , 22.61CM
  • Rack Width
    19"
  • Weight Capacity (static load)
    90.7KG

Environmental

  • Protection Class
    IP20

Conformance

  • Approvals
    EIA-310E
  • Standard warranty
    5 year repair or replace

Sustainable Offer Status

  • RoHS
    Compliant
Manuals and Warranties
Title
Size
Updated On
PDF

Size

179KB

Updated On

2023-09-29

Replacement instructions for fan module AR8213 for NetShelter WX Cabinet
PDF

Size

377KB

Updated On

2023-09-29

PDF

Size

673KB

Updated On

2022-12-07

Assembly and Installation for all three SKUs
