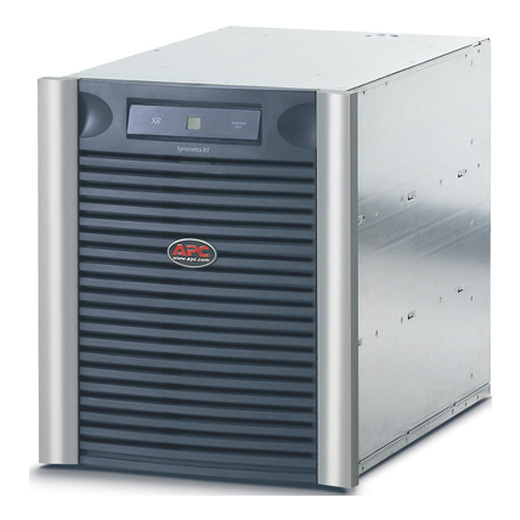

APC Symmetra LX Extended Run Rack-mount w/ 9 SYBT5, 230V

APC Symmetra LX Extended Run Rack-mount w/ 9 SYBT5, 230V

SYARMXR9B9I

8 893,50 €
Price inclusive of VAT

SYARMXR9B9I

APC Symmetra LX Extended Run Rack-mount w/ 9 SYBT5, 230V

Extended run power protection for servers, networks, and telecommunications

Includes : Installation guide , User manual

  • Battery modules connected in parallel
    Delivers higher availability through redundant batteries.
  • Hot-swappable batteries
    Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
  • Modular design
    Enables IT projects that were previously infeasible or cost-prohibitive.
  • Plug-and-Play external batteries
    Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
  • User-replaceable batteries
    Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Symmetra Battery Systems Features & Benefits

Product Distribution
Product Distribution

United Arab Emirates , Afghanistan , Antigua & Barbuda , Albania , Armenia , Angola , Argentina , Austria , Australia , Azerbaijan , Bosnia & Herzegovina , Belgium , Burkina Faso , Bulgaria , Bahrain , Burundi , Benin , Bolivia , Brazil , Botswana , Belarus , Congo - Kinshasa , Switzerland , Côte d’Ivoire , Chile , Cameroon , China , Cyprus , Czechia , Germany , Djibouti , Denmark , Algeria , Estonia , Egypt , Eritrea , Spain , Ethiopia , Finland , Fiji , France , Gabon , Grenada , Georgia , Ghana , Gambia , Greece , Hong Kong SAR China , Croatia , Hungary , Indonesia , Ireland , Israel , India , Iraq , Iceland , Italy , Jordan , Kenya , Cambodia , South Korea , Kuwait , Kazakhstan , Lebanon , Liberia , Lithuania , Luxembourg , Latvia , Morocco , North Macedonia , Mali , Myanmar (Burma) , Mongolia , Mauritania , Malta , Malawi , Malaysia , Mozambique , Namibia , Nigeria , Netherlands , Norway , New Zealand , Oman , Peru , Philippines , Pakistan , Poland , Portugal , Paraguay , Romania , Rwanda , Saudi Arabia , Sweden , Singapore , Slovenia , Slovakia , Sierra Leone , Senegal , Somalia , Suriname , Togo , Thailand , Tajikistan , Turkmenistan , Tunisia , Turkey , Taiwan , Tanzania , Ukraine , Uganda , Uruguay , Uzbekistan , Vietnam , Yemen , South Africa , Zambia , Zimbabwe

Print Technical Specification

Input

  • Number of Power Cords
    1

Batteries & Runtime

  • Battery type
    Lead-acid battery
  • Battery mounting
    Enclosed battery cabinet
  • Battery Placement
    Battery cabinet
  • Battery manufacturer
    Panasonic
  • Expected Battery Life (years)
    3 - 5
  • RBC Quantity
    9

Physical

  • Maximum Height
    572MM , 57.2CM
  • Maximum Width
    483MM , 48.3CM
  • Maximum Depth
    686MM , 68.6CM
  • Rack Height
    13U
  • Net Weight
    312.74KG
  • Shipping weight
    363.18KG
  • Shipping Height
    787MM , 78.7CM
  • Shipping Width
    997MM , 99.7CM
  • Shipping Depth
    599MM , 59.9CM
  • Color
    Black

Environmental

  • Operating Temperature
    0 - 40 °C
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0 - 3048meters
  • Storage Temperature
    -15 - 45 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0 - 4572meters

Conformance

  • Approvals
    BSMI, EN 50091-1, EN 50091-2, EN 60950, IEC 60950, VCCI, VDE
  • Standard warranty
    2 years repair or replace
Manuals and Warranties
Title
Size
Updated On
PDF

Size

404KB

Updated On

2023-09-29

Safety
PDF

Size

531KB

Updated On

2022-07-08

Title
Size
Updated On

Category

Sub-Category


APC Symmetra LX module CTO kit- XR3 Frame

Accessory solutions to tailor the Symmetra to meet your specific needs

APC Symmetra LX module CTO kit- XR 9 Frame

Accessory solutions to tailor the Symmetra to meet your specific needs

APC Symmetra LX module CTO kit- UPS Frame

This kit enables shipment of the Symmetra UPS installed in a rack with all its modules installed inside the UPS frame. The kit includes extra rails for supporting the top of the frame and cleats that hold the modules in place.

APC Symmetra LX Battery Module

Extended run power protection for servers, networks, and telecommunications
