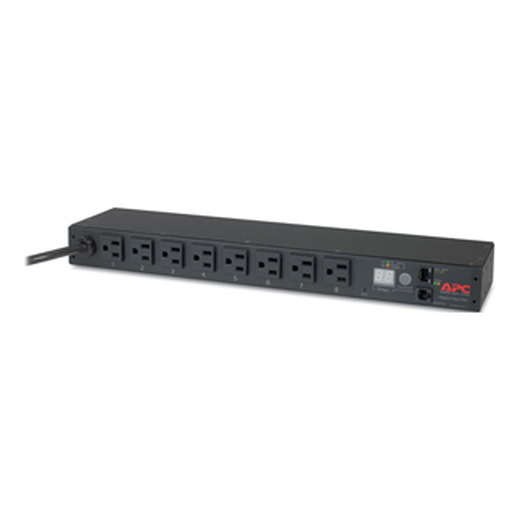

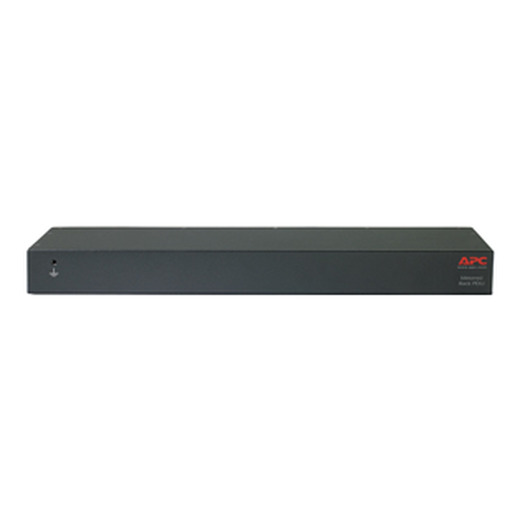

Rack PDU, Metered, 1U, 15A, 100/120V, (8) 5-15

Share:
Rack PDU, Metered, 1U, 15A, 100/120V, (8) 5-15

Rack PDU, Metered, 1U, 15A, 100/120V, (8) 5-15

AP7800B

Rack PDU, Metered, 1U, 15A, 100/120V, (8) 5-15

null

Call for More Information
800-800-4272
Includes: Cord retention bracket(s),Installation guide,Rack mounting brackets,User manual

NetShelter Metered Rack PDUs Features & Benefits

  • Wide range of input and output connections
    Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.
  • Single input power source
    Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
  • Rack-Mountable
    Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
  • Alarm Thresholds
    Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
  • Local Current Monitoring Display
    The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
  • Alarm Thresholds
    Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
  • 60C Operating Temperature
    All 8000 and 9000 series PDUs now provide the ability to operate in a maximum ambient air temperature of 60C (140F) at full load ensuring reliability and availability even in today's high density deployments. Other models allow up to 45C (113F).
  • Remote Management Capabilities
    Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
  • Integrates with StruxureWare Data Center Expert
    An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
  • Flash Upgradeable
    Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
  • Local Current Monitoring Display
    The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)
  • Load indicator LED
    Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Product Distribution
Product Distribution

Antigua & Barbuda , Anguilla , Netherlands Antilles , Barbados , Bermuda , Bolivia , Bahamas , Belize , Dominica , Dominican Republic , Ecuador , Grenada , Guatemala , Guyana , Honduras , Haiti , Jamaica , St. Kitts & Nevis , Cayman Islands , St. Lucia , Nicaragua , Panama , Puerto Rico , Paraguay , El Salvador , Trinidad & Tobago , Uruguay , St. Vincent & Grenadines , Venezuela , U.S. Virgin Islands

Print Technical Specification

Output

  • Nominal Output Voltage
    120V
  • Overload Protection
    No
  • Maximum Total Current Draw
    12
  • Output Connections
    (8) NEMA 5-15R (Battery Backup)

Input

  • Nominal Input Voltage
    100V , 120V
  • Input frequency
    50/60 Hz
  • Input Connections
    NEMA 5-15P
  • Cord Length
    3.7meters
  • Number of Power Cords
    1
  • Load Capacity
    1440VA
  • Maximum Input Current
    15A
  • Regulatory Derated Input Current (North America)
    12A

Physical

  • Maximum Height
    44MM , 4.4CM
  • Maximum Width
    444MM , 44.4CM
  • Maximum Depth
    102MM , 10.2CM
  • Rack Height
    1U
  • Net Weight
    1.73KG
  • Shipping weight
    2.91KG
  • Shipping Height
    64MM , 6.4CM
  • Shipping Width
    337MM , 33.7CM
  • Shipping Depth
    470MM , 47.0CM

Environmental

  • Operating Temperature
    -5 - 45 °C
  • Operating Relative Humidity
    5 - 95 %
  • Operating Elevation
    0 - 3048meters
  • Storage Temperature
    -25 - 65 °C
  • Storage Relative Humidity
    5 - 95 %
  • Storage Elevation
    0 - 15240meters

Conformance

  • Approvals
    CSA, cUL listed, FCC part 15 class A, ICES-003, METI Denan, UL 60950, UL listed, VCCI
  • Standard warranty
    2 years repair or replace
Manuals and Warranties
Title
Size
Updated On

Title

Release Notes: Rack Power Distribution Unit with Network Management Card 2
PDF
PDF

Size

547KB

Updated On

2024-07-29

Release Notes for: AP7•••B and AP8••• series Rack Power Distribution Units and AP71••B Inline Current Meters

Title

Rack Power Distribution Units and In-Line Current Meters AP7••B
PDF
PDF

Size

6675KB

Updated On

2024-05-16

Title

Installation Sheet Rack PDU AP7XXXB Series
PDF
PDF

Size

523KB

Updated On

2024-02-07

Title

Release Notes Rack PDU with NMC R2
PDF
PDF

Size

113KB

Updated On

2021-11-08

Release Notes for NetShelter Rack PDUs. AOS v704, rpdu2g v706,

Title

Metered Rack Power Distribution Unit User Guide Firmware Version 6.5.6
PDF
PDF

Size

1572KB

Updated On

2018-06-19

Covers the function of the Device interface, the CLI, and the Web UI for both deployment and ongoing system monitoring
Design/Configuration
Title
Size
Updated On

Title

Metered Rack PDU AP7800B Overview and Specifications
PDF
PDF

Size

134KB

Updated On

2023-09-29

Features and Specifications
Agency Approvals
Title
Size
Updated On

Title

UL C of C for rPDU_AP6K, AP7K, AP9K series
PDF
PDF

Size

977KB

Updated On

2022-10-07

Title

CB Certificate AP6K, AP7K , AP9K series PDU's
PDF
PDF

Size

274KB

Updated On

2022-10-07

Title

DENAN Agency Approval - NBK120117-JP1042 Denan PSE Approval Multiple Socket Outlet rPDU
PDF
PDF

Size

172KB

Updated On

2022-10-07

Title

Confirmation Letter for Products Outside the scope of China Certificate
PDF
PDF

Size

84KB

Updated On

2022-10-07

Environmental Profile
Title
Size
Updated On

Title

End of Life instructions for Metered Rack PDU _EN
PDF
PDF

Size

429KB

Updated On

2024-06-17

Quick Sales Reference Sheet
Title
Size
Updated On

Title

Reference for Next Generation AP7000 Series Metered and Switched Rack PDUs
PDF
PDF

Size

123KB

Updated On

2023-09-29

Reference the new features of the AP7000 Series "B" SKU PDUs which replaced the previous generation at the end of 2016.
Title
Size
Updated On
Power Distribution, Metered Rack PDU
AP7800B - Rack PDU, Metered, 1U, 15A, 100-125V (8)5-15
CAD Source File
376KB
2023-10-04

AP7800B - Rack PDU, Metered, 1U, 15A, 100-125V (8)5-15
PDF
163KB
2023-10-04
