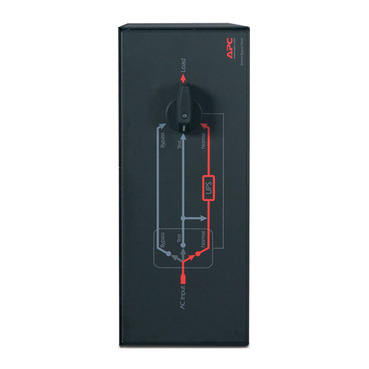

APC Service Bypass Panel- 230V; 100A; MBB; Hardwire input; (3) 30A Hardwire Output
SBP16KRMI4U
Specifications
| Lead time | Usually in Stock |
|---|
| Main Input Voltage | 230 V |
|---|---|
| Main Output Voltage | 230 V |
| Output connector type | Hard wire 3-wire (H N + E) 3 |
| Number of rack unit | 4U |
| Number of cables | 1 |
| Provided equipment | Installation guide Rack mounting brackets User manual |
| Colour | Black |
|---|---|
| Height | 17.8 cm |
| Width | 43.2 cm |
| Depth | 67.3 cm |
| Net weight | 21.82 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| Network frequency | 50/60 Hz |
|---|---|
| Number of input connectors | 1 hard wire 3-wire (H N + E) 1 hard wire 4-wire (3P + E) |
| Max line current | 100 A |
| Input current limits | 100 A |
| Load capacity | 20000 VA |
| Power factor | 0…1 |
| Max current draw | 100 A |
|---|---|
| Protection type | Circuit breaker |
| Efficiency | 99 % |
| Product certifications | CSA GOST |
|---|---|
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | -20…45 °C |
|---|---|
| Relative humidity | 0…95 % |
| Operating altitude | 0...15000 ft |
| Ambient air temperature for storage | -40…65 °C |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0.00…15240.00 m |
| Unit Type of Package 1 | Db |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 30.5 cm |
| Package 1 Width | 61 cm |
| Package 1 Length | 99.1 cm |
| Package 1 Weight | 31.753 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 129.5 cm |
| Package 2 Width | 100 cm |
| Package 2 Length | 120 cm |
| Package 2 Weight | 266.08 kg |
| Warranty | 2 years (parts only) |
|---|
Sustainability
Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance.
Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products.
Learn moreWell-being performance
REACh Regulation
EU RoHS Directive
Compliant
China RoHS Regulation
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
