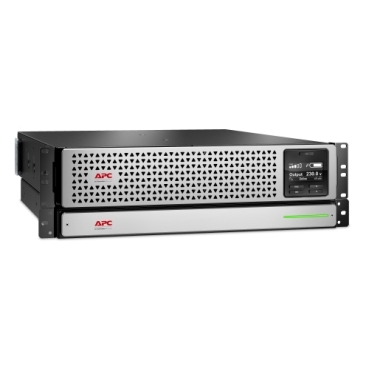

APC Smart-UPS On-Line, 3kVA, Rackmount 3U, 230V, 6x C13+2x C19 IEC outlets, Network Card,Extended runtime, W/ rail kit,W/ Lithium-ion external battery

SRTL3000RMXLI-NC

battery type:

Lead-acid battery

Li-Ion (Lithium-Ion)

input voltage:

120 V

208 V 230 V

230 V

notification_ok

Environmental performance of the product Learn more

Sustainable by Design

location_map

Find a reseller

arrow2_left

communication_bubbles2

Contact support

page

mail

Subscribe to the newsletter

+ Lifecycle Services

1 Yr Advantage EAA Prevent Service Plan for (1) 1P UPS up to 10kVA

WADV1PEAA

5 X 8 Power Up for Smart-UPS

WSTRTUP-SU-03

Description

This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 3000VA/2700W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The 2U rackmount SRT has a preinstalled Network Management Card in the Smart Slot for UPS network-based monitoring and management. PowerChute network shutdown provides graceful, unattended shutdown of critical IT equipment ranging from physical servers and virtual machines to HCI cluster. It comes with IEC 60320 C20 input, 6x IEC 60320 C13, and 2x IEC 60320 C19 outlets. The UPS has built-in lithium-ion battery and is covered by a 5-year warranty. Its dimensions are 639mm (depth) x 128mm (height) x 432mm (width) and weighs 30.50kg. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CE and EAC. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Specifications

Overview
Presentation	High density, double-conversion on-line power protection with scalable runtime.
Lead time	Usually in Stock

Main
Run time for load W information_circle Enter the total load (power draw) of all devices that will be protected by the UPS. This will be used to estimate the run time of your devices during a total power outage. Adding run time increases availability by allowing the system to operate through longer outages without shutting down. Min-max: 270-2700 W
Max. Capacity Used information_circle The maximum percentage of UPS capacity used to support your specified load.
Main Input Voltage	230 V
Other Input Voltage	220 V 240 V
Main Output Voltage	230 V
Other Output Voltage	220 V 240 V
Rated power in W	2700 W
Rated power in VA	3000 VA
Input Connection Type	IEC 60320 C20
output connection type	6 IEC 60320 C13 2 IEC 60320 C19
Number of rack unit	3U
Cable length	1.83 m
Number of cables	1
Battery type	Li-Ion (Lithium-Ion)
Provided equipment	CD with software Communication cable Documentation CD Installation guide Removable support feet USB cable Warranty card

General
product web sub-family	Lithium-Ion
Number of power module free slots	0
Number of power module filled slots	0
Redundant	No

Physical
Colour	Black with silver front bezel
Height	12.8 cm
Width	43.2 cm
Depth	63.9 cm
Net weight	30.5 kg
Mounting preference	No preference
Mounting mode	Rack-mounted with kit
Two post mountable	0
USB compatible	Yes
Mounting position	Horizontal Vertical

Input
Network frequency	40...70 Hz auto-sensing
Input voltage limits	160...275 V

Output
Maximum configurable power in W	2700 W
Harmonic distortion	Less than 2 %
Output frequency	50/60 Hz +/- 3 Hz sync to mains
Crest factor	3 : 1
UPS type	Double conversion online
Wave type	Sine wave
Bypass type	Built-in bypass
Maximum configurable power in VA	3000 VA

Conformance
Product certifications	CE EAC
Marking	CE Mark
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018

Environmental
Ambient air temperature for operation	0…40 °C
Relative humidity	0…95 % non-condensing
Operating altitude	0...10000 ft
Ambient air temperature for storage	-20…50 °C
Storage Relative Humidity	0…95 % non-condensing
Storage altitude	0.00…15240.00 m
Acoustic level	50 dBA
Heat dissipation	317 Btu/h
IP degree of protection	IP20

Batteries & Runtime
Run Time	View Runtime Graphaction_new_window
Number of battery filled slots	0
Number of battery free slots	0
Battery recharge time	4 h
Battery voltage	48 V
Battery charger power	158 W rated
Battery power in VAH	612 VAh capacity 632 VAh runtime
Battery life	5…10 year(s)
Battery option	XBP48RM1U2-LI 1 1264 VAh XBP48RM1U2-LI 2 1896 VAh XBP48RM1U2-LI 3 2528 VAh XBP48RM1U2-LI 4 3160 VAh XBP48RM1U2-LI 5 3792 VAh XBP48RM1U2-LI 6 4424 VAh XBP48RM1U2-LI 7 5056 VAh XBP48RM1U2-LI 8 5688 VAh
Extended runtime	1

Communications & Management
Free slots	0
Preinstalled device	Network management card 2 with environmental monitoring
Alarm	Audible and visible alarms : prioritized by severity
Emergency power off	Yes

Surge Protection and Filtering
Surge energy rate	432 J

Packing Units
Unit Type of Package 1	Db
Number of Units in Package 1	1
Package 1 Height	24.5 cm
Package 1 Width	87 cm
Package 1 Length	60 cm
Package 1 Weight	41.4 kg

Contractual warranty
Warranty	5 year repair or replace

Green Premium^TM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO₂ products.
