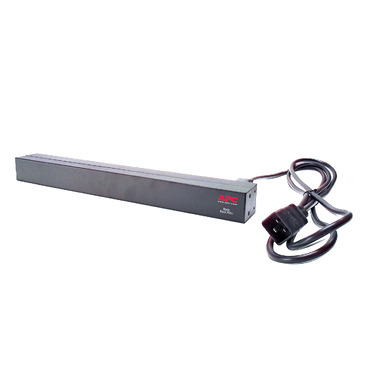

rack PDU - basic - 1U - 16A 208 230V - (12)C13
AP9565
Energy Efficient
Energy efficient product helping our customers achieving their carbon reduction goals while saving energy costs. Energy efficiency of this Product is at least 10% higher than market average.
Energy EfficientTake-back
The product has been authorized to be included in a Schneider Electric take-back scenario.
Take-backRoHS/REACh
Compliant with RoHS/REACh regulations
RoHS/REAChEnergy Efficient
Energy efficient product helping our customers achieving their carbon reduction goals while saving energy costs. Energy efficiency of this Product is at least 10% higher than market average.
Energy EfficientTake-back
The product has been authorized to be included in a Schneider Electric take-back scenario.
Take-backRoHS/REACh
Compliant with RoHS/REACh regulations
RoHS/REACh
Description
Specifications
| Presentation | Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (12)C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment. |
|---|---|
| Lead time | Usually in Stock |
| Main Input Voltage | 200 V 208 V 230 V |
|---|---|
| PDU type | Basic |
| Main Output Voltage | 208 V 230 V |
| Input Connection Type | IEC 60320 C20 |
| Number of rack unit | 1U |
| Cable length | 2.50 m |
| Number of cables | 1 |
| Provided equipment | Installation guide Rack mounting brackets |
| Colour | Black |
|---|---|
| Height | 4.4 cm |
| Width | 44.7 cm |
| Depth | 5.7 cm |
| Net weight | 2.05 kg |
| Mounting location | Front Rear |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted |
| Input current limits | 16 A |
|---|---|
| Load capacity | 3680 VA |
| Network frequency | 50/60 Hz |
| Number of power socket outlets | 12 IEC 60320 C13 |
|---|
| Product certifications | cUL listed CE Queensland Australia UL listed VDE |
|---|---|
| Standards | UL 60950 |
| Ambient air temperature for operation | 0…45 °C |
|---|---|
| Relative humidity | 0…95 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -25…65 °C |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0.00…15240.00 m |
| Unit Type of Package 1 | Db |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7 cm |
| Package 1 Width | 46.4 cm |
| Package 1 Length | 22.9 cm |
| Package 1 Weight | 3.632 kg |
| Warranty | 2 years repair or replace |
|---|
Sustainability
Resource performance
Energy efficient product
Take-back program available
Well-being performance
Lead free
Certifications & Standards
REACh Regulation
EU RoHS Directive
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
