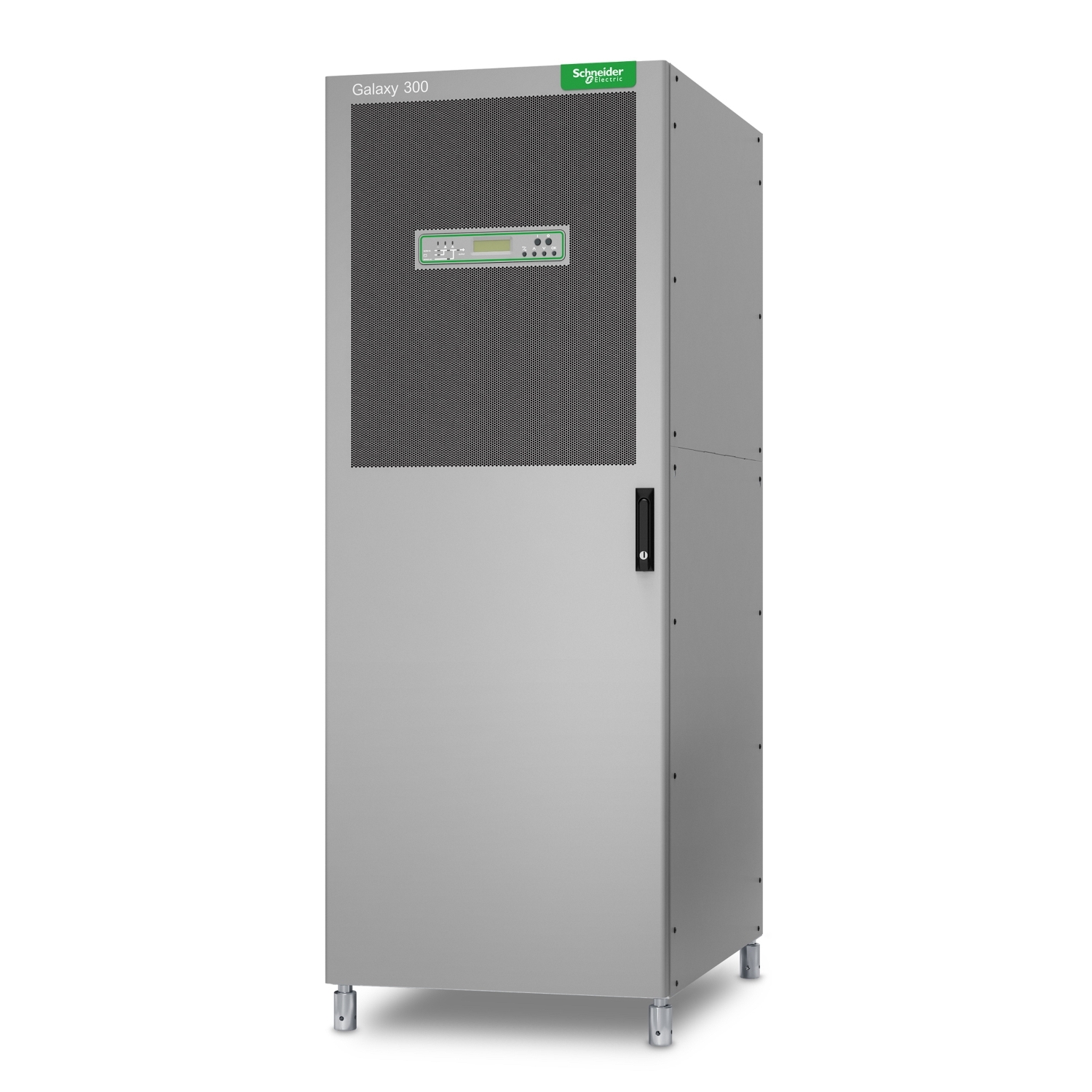

Galaxy 300 80kVA 400V 3:3, 0min Start-up 5x8
G3HT80KHLS
Discontinued on:31 December 2019
To be end-of-service on:31 December 2029
Recommended replacement(s)
Energy Efficient
Take-back
Transparency
Specifications
| Presentation | Effective three phase power protection against downtime and data loss for mission critical applications. UPS with long backup charger, supplied without batteries. To be used with external batteries. Please |
|---|---|
| Lead time | Usually Ships within 2 Weeks |
| Main Input Voltage | 400 V 3 phases |
|---|---|
| Other Input Voltage | 380 V 415 V |
| Main Output Voltage | 400 V 3 phases |
| Other Output Voltage | 380 V 415 V |
| Rated power in W | 72000 W |
| Rated power in VA | 80000 VA |
| Output connector type | Hard wire 5-wire (3P + N + E) 1 |
| battery type | External battery system |
| Provided equipment | CD with software Dust filter Installation guide Network management card Start-up service User manual |
| Efficiency | View Efficiency Graph |
|---|---|
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Additional information | KW/kVA = 0.9 PF with ambient temp up to 25°C. kW/kVA = 0.8 PF with ambient temp above 25°C |
| battery voltage | +/- 192 V (split battery referenced to neutral) |
| Discharge battery voltage | +/- 154 V |
| Battery power in VAH | 0 VAh runtime |
| Battery life | 3…5 year(s) |
| Extended runtime | 0 |
| Bypass wiring configuration | 5 wire (3P + N + E) |
|---|---|
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| Height | 190 cm |
|---|---|
| Width | 70 cm |
| Depth | 95 cm |
| Net weight | 375 kg |
| Mounting preference | No preference |
| USB compatible | No |
| Network frequency | 45...65 Hz |
|---|---|
| Number of input connectors | 1 hard wire 5-wire (3P + N + E) |
| Input voltage limits | 323...437 V adjustable 380 V 340...460 V adjustable 400 V 357...477 V adjustable 415 V 340...477 V |
| Maximum input current | 122 A |
| Switching current capacity | 160 A |
| Max short time withstand current | 16 kA |
| Input harmonic distortion | Less than 5 % for full load |
| Input protection type | 3-pole circuit breaker |
| inrush current | 200 A peak |
| Load power factor | 0.5 leading to 0.5 lagging |
| Maximum configurable power in W | 72000 W |
|---|---|
| Harmonic distortion | Less than 5 % |
| Output frequency | 50/60 Hz +/- 1 Hz sync to mains 50/60 Hz +/- 1 Hz unsynchronised |
| Crest factor | 3 : 1 |
| Output voltage tolerance | +/- 2% static and 100% load step |
| Output harmonic distortion | < 3% linear load and < 5% non-linear load |
| Output overload operation | 10 minutes at 125% and 60 seconds at 150% |
| Required output current protection | 160 A |
| bypass type | Built-in static bypass |
| Maximum configurable power in VA | 80000 VA |
| Product certifications | CE EAC |
|---|---|
| Standards | EN/IEC 62040-1 EN/IEC 62040-2 EN/IEC 62040-3 ISTA 2B IEC 62040-4 |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...3000 ft |
| Ambient air temperature for storage | -20…50 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0.00…4572.00 m |
| Acoustic level | 65 dBA |
| IP degree of protection | IP20 |
| Preinstalled device | Network management card |
|---|---|
| control panel | Multifunction LCD status and control console |
| Emergency power off | Yes |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 197.8 cm |
| Package 1 Width | 112 cm |
| Package 1 Length | 82.4 cm |
| Package 1 Weight | 395 kg |
| Warranty | 1 year on-site repair or replace with factory authorized Start-Up |
|---|
